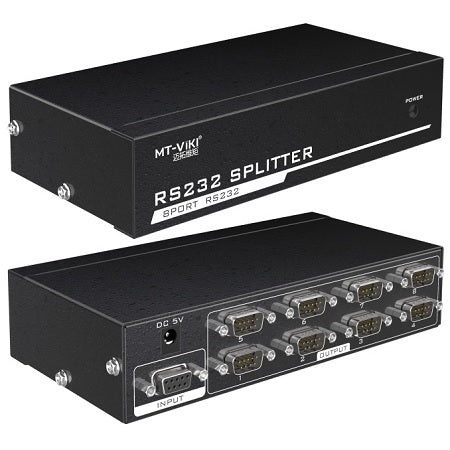

8 WAY SERIAL PORT SPLITTER - RS108
RS 232 SERIAL SPL ITTER
Application
RS232 Serial Splitter is widely used in a variety of small and medium- sized Multimedia Conference Room
The Central Control System
The Serial Splitter Product is Designed to solve the problem of such Engineering Applications
Users can use the Device will be an RS232 Interface Extended to 4 or 8 Port
Suitable for the need for RS232 Communication Port Expansion of the Engineering Application System
Pin Definition
Output Port Adopting DR9 Male
Pin is defined as: 3-Pin Transmit, 2-Pin Receive, 5-Pin Ground (That is, Analog Computer Serial Output Order)
Wiring
The Computer Serial Port through the straight-through Serial Cable Connected to the RS232 Splitter's Input
The Output Port is also directly Connected to the Device by the straight-through Serial Cable
(That is, the Serial Line 2 to 2,3 to 3 Connected Lines)
At this time the Product can be used as 1 in 4 Out or 1 in 8 Out
Specification
Product Name: Serial Port Splitter
Input Type: DR9 Female RS-232
Baud Rate: 300-115200bps
Test Low Temperature: -20C 40C
Power Supply: DC5V
Model: MT-RS108
Output Port Type: DR9 Female RS-232
Communication Distance: 30M
Test Low Temperature: 0C -50C
Housing Material: Metal Iron Housing
