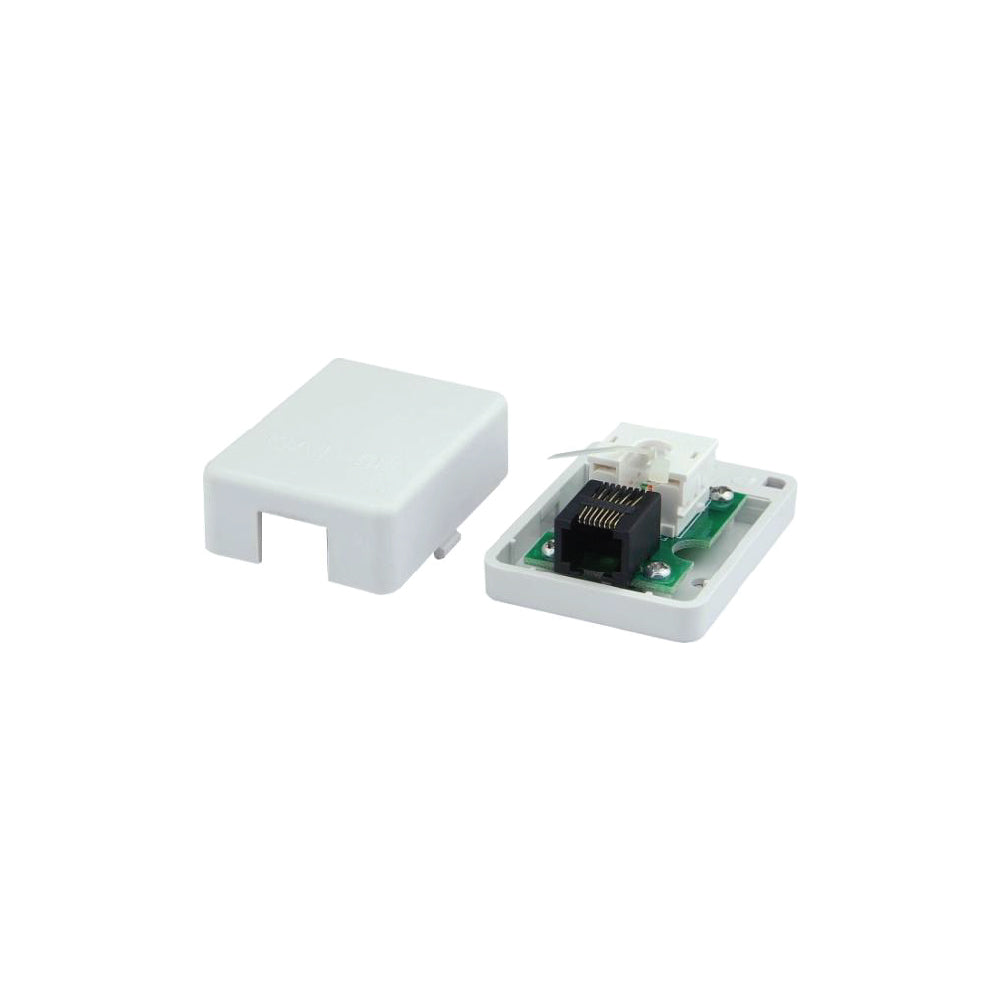

RJ45 CAT5E WALL BOX

Features

• CAT5e Performance - Supports Fast Ethernet with bandwidth up to 250MHz
• Single-Port RJ45 Outlet - Ideal for clean, fixed network termination points
• T568A / T568B Compatible - Clearly labelled for easy and correct wiring
• Durable Housing - High-temperature thermoplastic construction for long-term reliability
• Broad Cable Support - Accepts 23~26 AWG network cables
• Low Signal Loss - Designed for low attenuation and high return loss
• Compact Surface-Mount Design - Neat, space-saving installation on walls or skirting
• Professional Finish - Clean white housing suited to office and home environments

Specifications

• Contact Resistance (Max.): 20mΩ
• Insulation Resistance (Min.): 500MΩ
• Return Loss (dB) 5.3dB
• Dimensions (W × H × D): 60.6 × 45.1 × 26.2mm
