Product Description

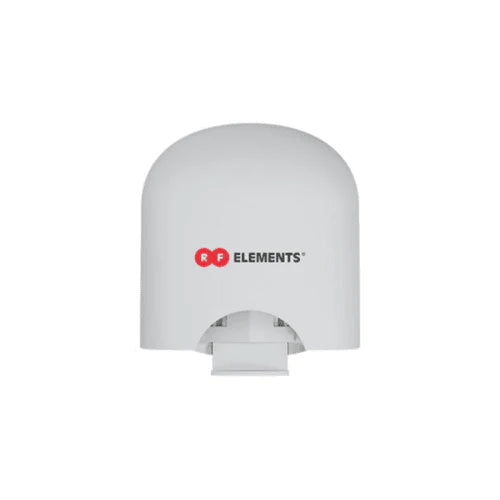

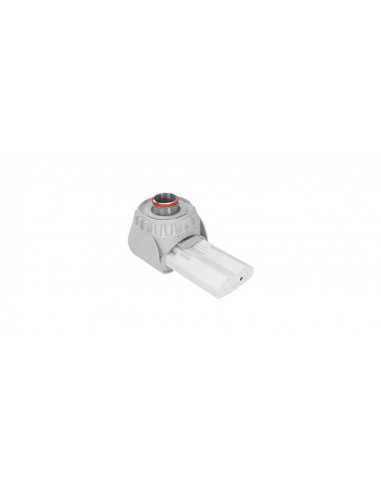

The TwistPort™ Adaptor for Rocket™ M5 makes the Rocket™ M5 compatible with all TwistPort™ Antennas. TwistPort™ Adaptors have our proprietary quicklocking waveguide connector, enabling simple connection and detachment of Rocket™ M5 without any tools. TPA-RM5 features upgrades in the form of improved feed elements.
PERFORMANCE
| Frequency Range |
5180 - 6400 MHz |
| Polarization |
Dual Linear H + V |
| VSWR Max |
1.8 |
| Impedance |
50 Ohm |
TECHNICAL DATA
| Antenna Connection |
TwistPort™ - Quick Locking Waveguide Port |
| Radio Connection |
2x Slide-On RP-SMA |
| Materials |
Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating |
UL 94 HB |
| Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Wind Survival |
160 km/hour |
| Weight |
0.4 Kg / 0.9 lbs – single unit
0.5 Kg / 1.1 lbs – single unit incl. package
11.5 Kg / 25 lbs – carton (20 units)
|
| Single Unit |
Retail Box: 13.5 × 13.0 × 11.5 cm |
| 20 Units |
Carton Box: 60.5 × 29.0 × 28.5 cm |
