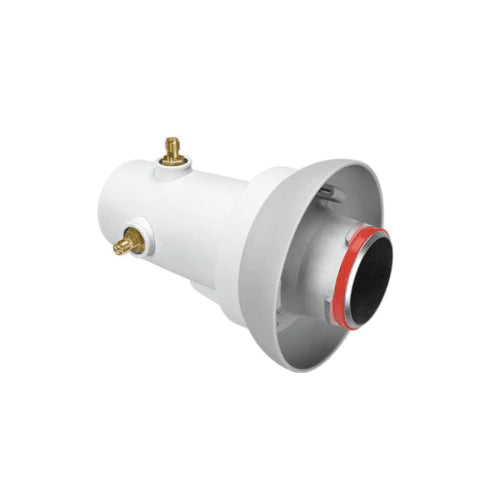

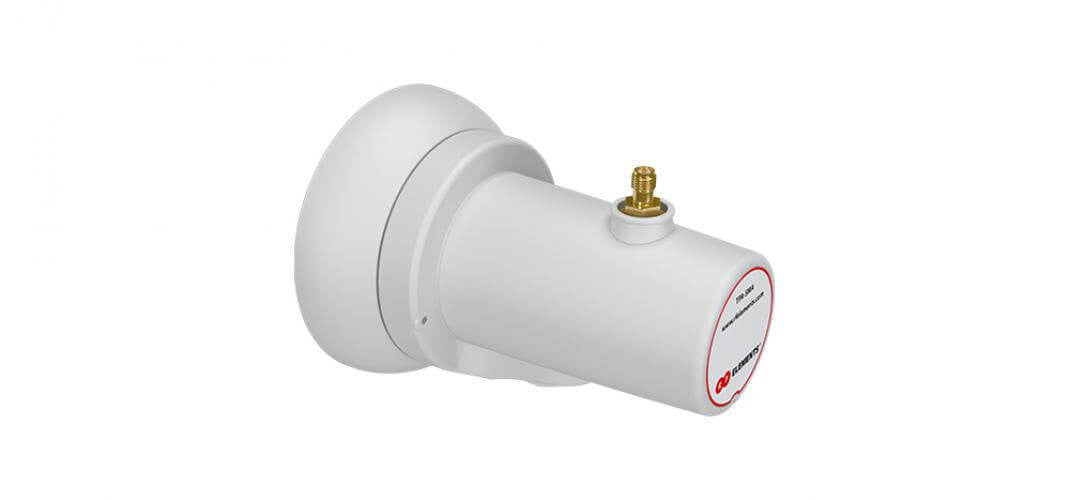

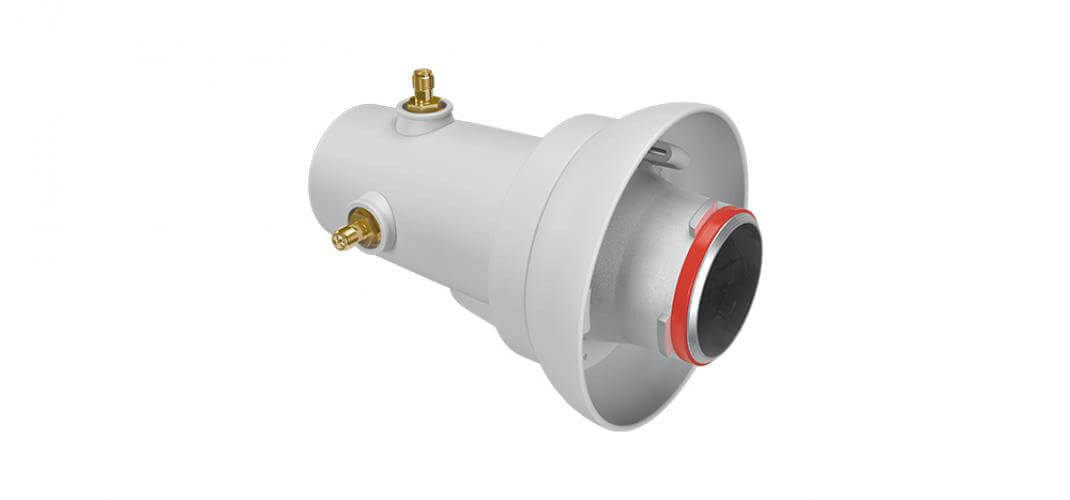

The TwistPort™ Adaptor with SMA connectors is designed to provide two RP-SMA female coaxial interface (dual linear H+V) and can be connected to TwistPort™ enabled antennas.
PERFORMANCE
| Frequency Range |
5180 - 6400 MHz |
| Polarization |
Dual Linear H + V |
| VSWR Max |
1.8 |
| Impedance |
50 Ohm |
TECHNICAL DATA
| Antenna Connection |
TwistPort™ - Quick Locking Waveguide Port |
| Radio Connection |
2x RP-SMA female |
| Materials |
Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating |
UL 94 HB |
| Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Wind Survival |
160 km/hour |
| Weight |
0.21 kg / 0.46 lbs – single unit
0.28 kg / 0.61 lbs – single unit incl. package
29.0 kg / 63.9 lbs – carton (100 units)
|
| Single Unit |
Retail Box: 155 × 100 × 97 mm / 6.1 x 3.9 x 3.8 inch |
| 100 Units |
Carton Box: 990 × 480 × 320 mm / 38.9 x 18.9 x 12.6 inch |
