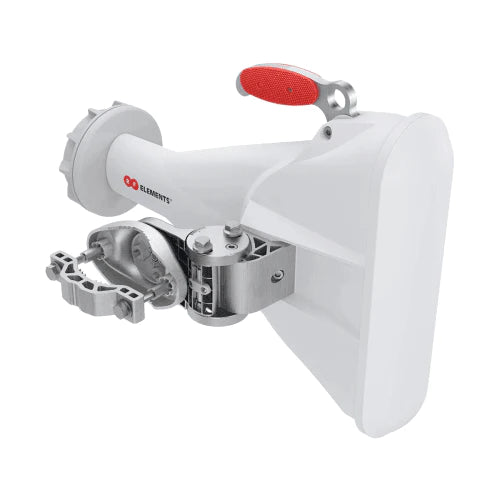

60° Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options. 60° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation.
Outstanding noise rejection and precision of radiation pattern favors 60°Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites. HG3-TP-A60 features our revolutionary TwistPort™ connector, a patent-pending twistand-lock waveguide port. TwistPort™ is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 60° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPort™ Adaptor.
PERFORMANCE
| Frequency Range |
5180 - 6000 MHz |
| Gain |
17 dBi |
| Azimuth Beam Width -3 dB |
H 45° / V 42° |
| Elevation Beam Width -3 dB |
H 17° / V 16° |
| Azimuth Beam Width -6 dB |
H 60° / V 60° |
| Elevation Beam Width -6 dB |
H 25° / V 25° |
| Beam Efficiency** |
95 % |
| Front-to-Back Ratio |
27dB |
