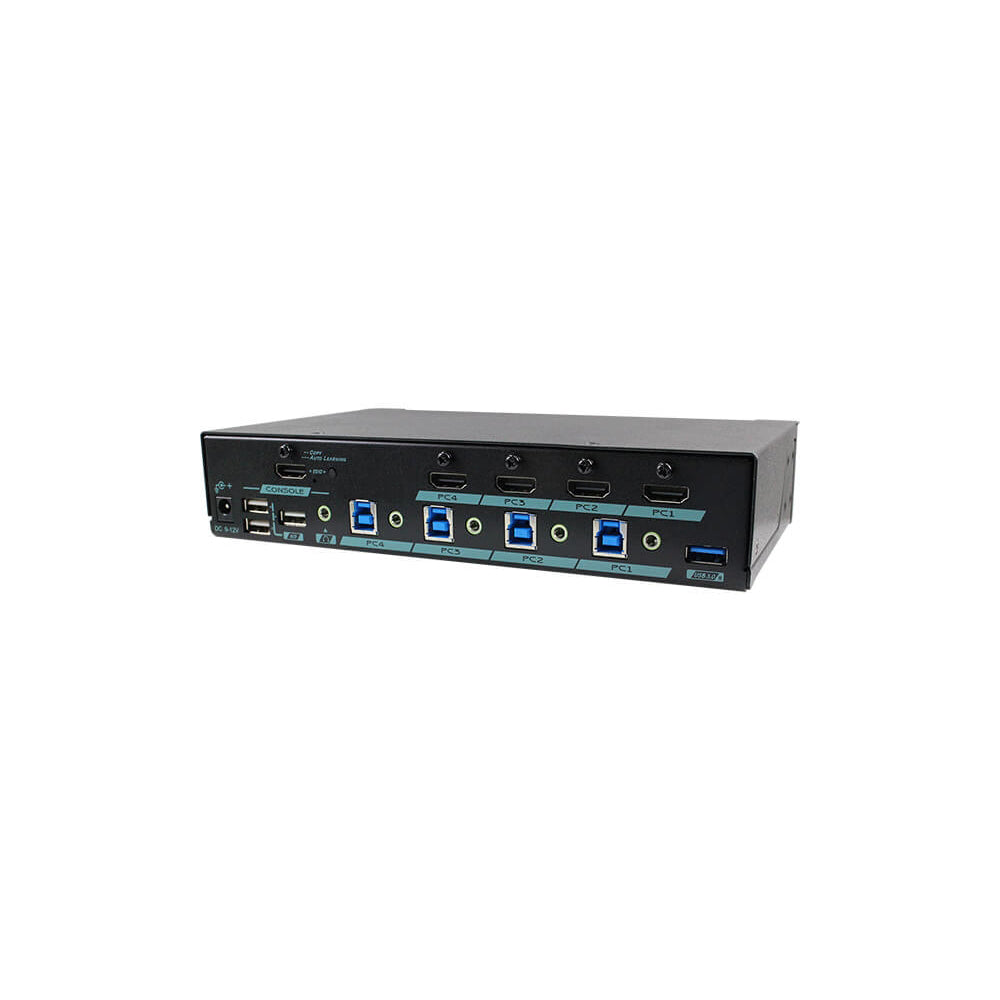

REXTRON MAAG-G314 4-PORT 4K @60HZ HDMI 2.0 USB3.2 GEN1 KVM SWITCH

Features

• 4-Port KVM Switching - Allows up to four computers to share a single keyboard, monitor and mouse console
• True 4K HDMI 2.0 Support - Supports up to 4K @60Hz (4:4:4) with HDR10 for superior image quality
• USB3.2 Gen1 Connectivity - High-speed data transfer up to 5Gbps for peripherals and storage devices
• Flexible Control Options - Switch easily using hotkeys or front panel push buttons
• EDID Management - Supports EDID copy, auto and default modes for optimal display compatibility
• Plug-and-Play Operation - No software or drivers required for quick and easy setup
• Front and Rear USB Access - Convenient connectivity for multiple USB devices
• HDCP Compliance - Supports HDCP 2.2 and 1.4 for protected content playback
• Auto-Scan Function - Supports manual and auto-scan with selectable scan intervals

Specifications

Video

• Maximum Resolution: 4096×2160 @60Hz (4:4:4), 3840×2160 @60Hz (4:4:4)

Computer / Server Input Ports

• Video Input: 4× HDMI 2.0
• USB: 4× USB3.2 Gen1 Type-B
• Audio Input: 4× 3.5mm Audio Jack

Console Output Ports

• Video Output: 1× HDMI 2.0
• USB: 2× USB3.2 Gen1 Type-A (Front and Rear)
• USB HID: 4× USB Type-A (Front and Rear)
• Audio Output: 1× 3.5mm Audio Jack

Control And Management

• Control Methods: Hotkey and Push Button
• Push Buttons: 4× Port Select, 1× EDID Copy
• EDID Management: Copy / Auto / Default
• Auto Scan Interval: 3, 8, 15, 30 Seconds
• HDCP Compliance: HDCP 2.2 and 1.4

Indicators

• LED Indicators: 4× PC Ready, 4× PC Select, 1× EDID Copy, 1× Power

Power

• Power Supply: DC 9~12V

Environment

• Operating Temperature: 0~40°C (Humidity <80%)
• Storage Temperature: -20~60°C

Physical

• Dimensions: 44 × 220 × 130mm
• Material: Metal
• Weight: 1.1kg
