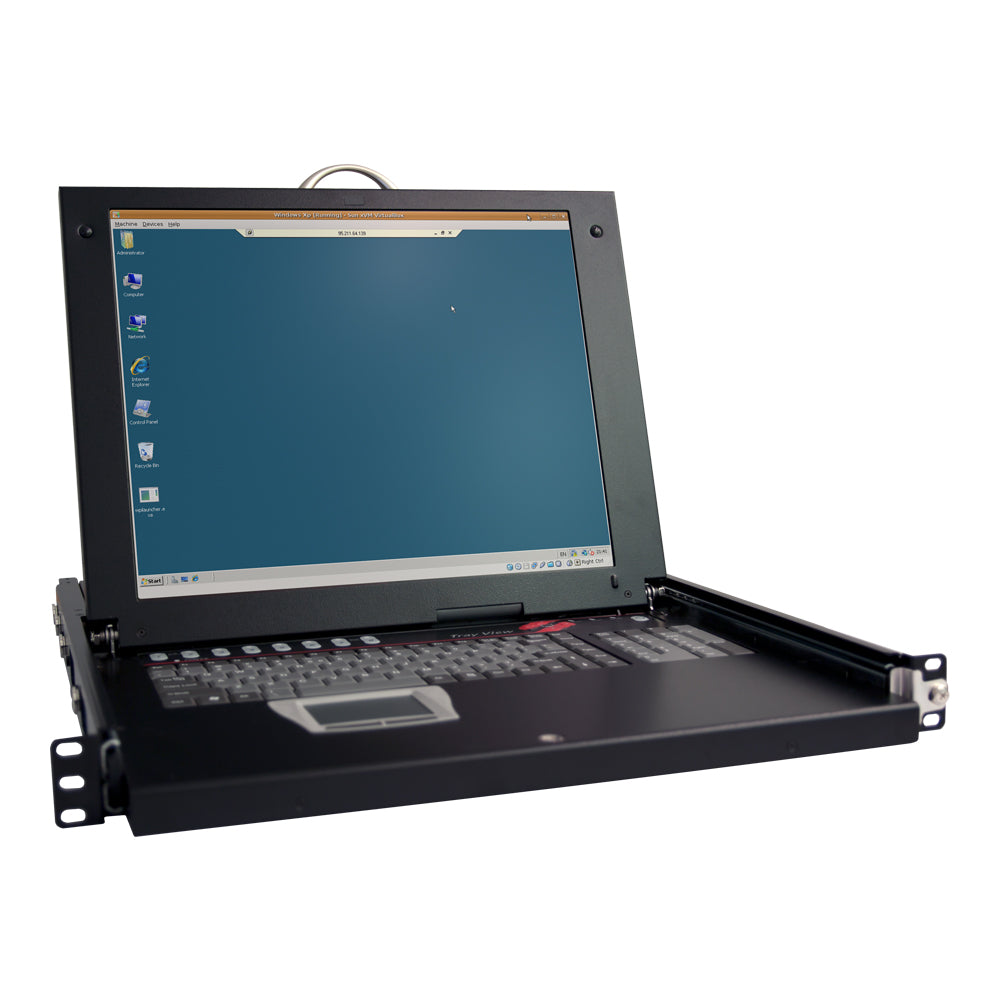

REXTRON HUSH-108DC 8-PORT 17" KVM CONSOLE DRAWER

Features

• 17-Inch Flip-Open LCD Panel - Supports up to 1280 × 1024 resolution for clear system monitoring
• LED Backlight Technology - Delivers lower power consumption compared to standard LCD monitors
• 1U Rackmount Design - Saves valuable rack space in server rooms and data centres
• Integrated 105-Key Keyboard - Full low-profile keyboard with sturdy construction for reliable operation
• Built-In Touchpad - Allows convenient local server and network management
• Multi-Platform Compatibility - Supports PS/2, USB, Mac and Sun interface systems
• Universal C-36 Connector - Enables connection between the console drawer and Integra KVM switch module
• Locking Mechanism - Secures the drawer when pulled out, pushed in or folded down
• Slide-Out Console Drawer - Enables smooth access and compact storage when not in use
• Standard 19-Inch Rack Compatibility - Fits standard 1U rack cabinet installations
• Flexible Rack Installation - Suitable for rack cabinets with depths from 20" (50cm) and above with appropriate rear bracket and extension kit
• Durable Metal Construction - Built for professional IT and networking environments

Specifications

• Display Panel: 17" TFT-LCD with LED Backlight
• Active Display Area: 337.92 (H) × 270.336mm (V)
• Pixel Pitch: 0.264 (H) × 0.264 (V)
• Viewing Angle: 170° / 160°
• Brightness: 250cd/m² (Center)
• Hotkey Control: Yes
• User Control: OSD Control (Auto Saving)
• Input Signal: RGB Analogue, H/V Separate
• Plug-and-Play: Yes
• Surface Treatment: Anti-Glare Treatment
• Power Consumption: 13W (No Inverter, All White Pattern)
• Operating Environment: 0~40°C, Humidity <80%
• Storage Temperature: -20~60°C
• Enclosure Material: Metal
• Dimensions (H × W × D): 44 × 440 × 565mm
