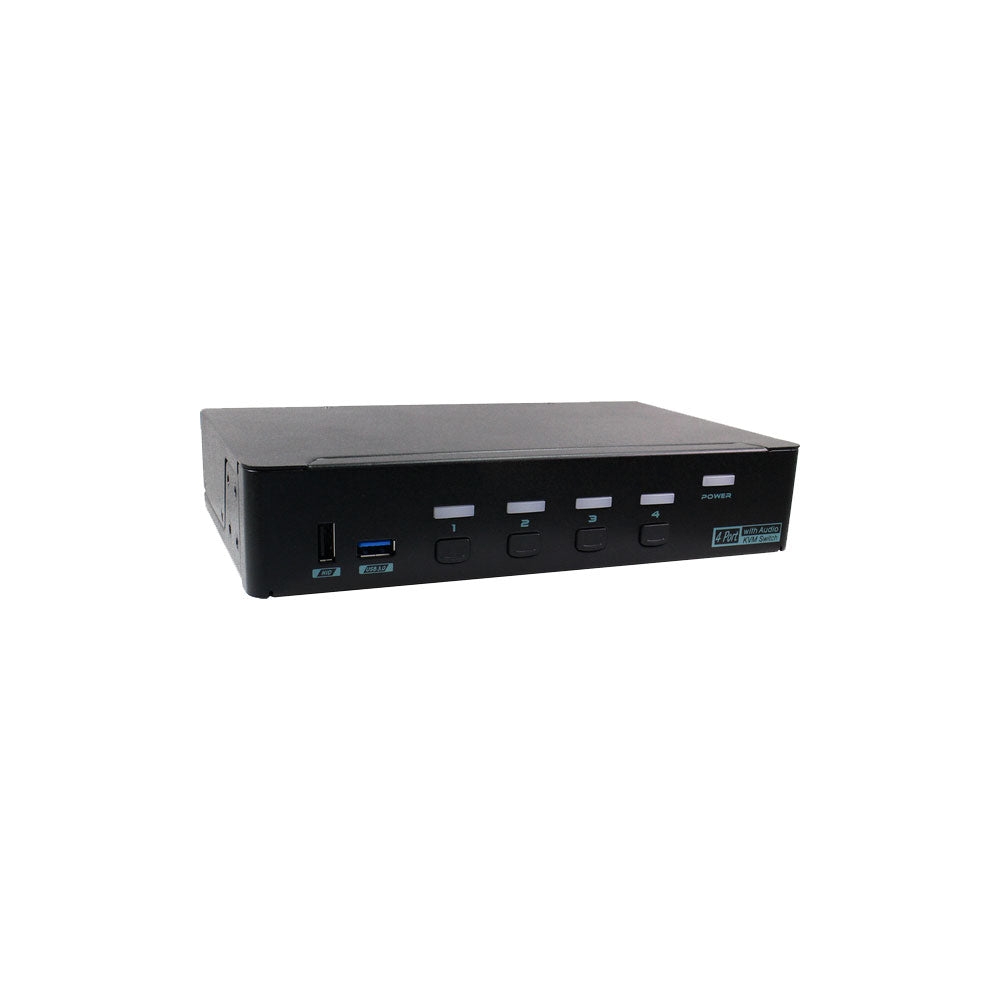

REXTRON 4PORT USB3.0 KVM SWITCH W VGA

Features

• 4-Computer USB Sharing - Allows four computers to share USB peripherals including 4× HID devices and 3× USB3.0 devices
• Full HD Video Support - Supports resolutions up to 1920×1080 and WUXGA 1920×1200
• Virtual HID Support - Enables simultaneous virtual HID functionality for smooth switching
• Front Panel Push Buttons - Simple manual computer selection from the unit
• Hotkey Switching - Fast keyboard-based switching between connected computers
• Auto Scan Function - Automatically cycles through connected computers
• Selectable Scan Time Interval - Adjustable timing for auto scan operation
• Audible Buzzer Feedback - Confirms computer switching with sound indication

Specifications

Input Ports

• 4× VGA (Single-View, 4 PCs)
• 4× USB3.0 Type-B
• 4× Audio Jack (Input)

Output Ports

• 1× VGA
• 2× USB3.0 Type-A (Rear and Front)
• 4× USB HID Type-A (Rear and Front)
• 1× Audio Jack (Output)

Maximum Video Resolution

• Full HD: 1920×1080
• WUXGA: 1920×1200

Control

• Push Buttons: 4× Port Selection

LED Indicators (Power / Status)

• 4× Computer Ready (Green)
• 4× Computer Selected (Red)

Automatic Scan Interval

• 3, 8, 15, or 30 Seconds

Shipping Dimensions

• Length: 53.6 cm
• Width: 23.9 cm
• Height: 26.1 cm
• Weight: 2.40 kg
