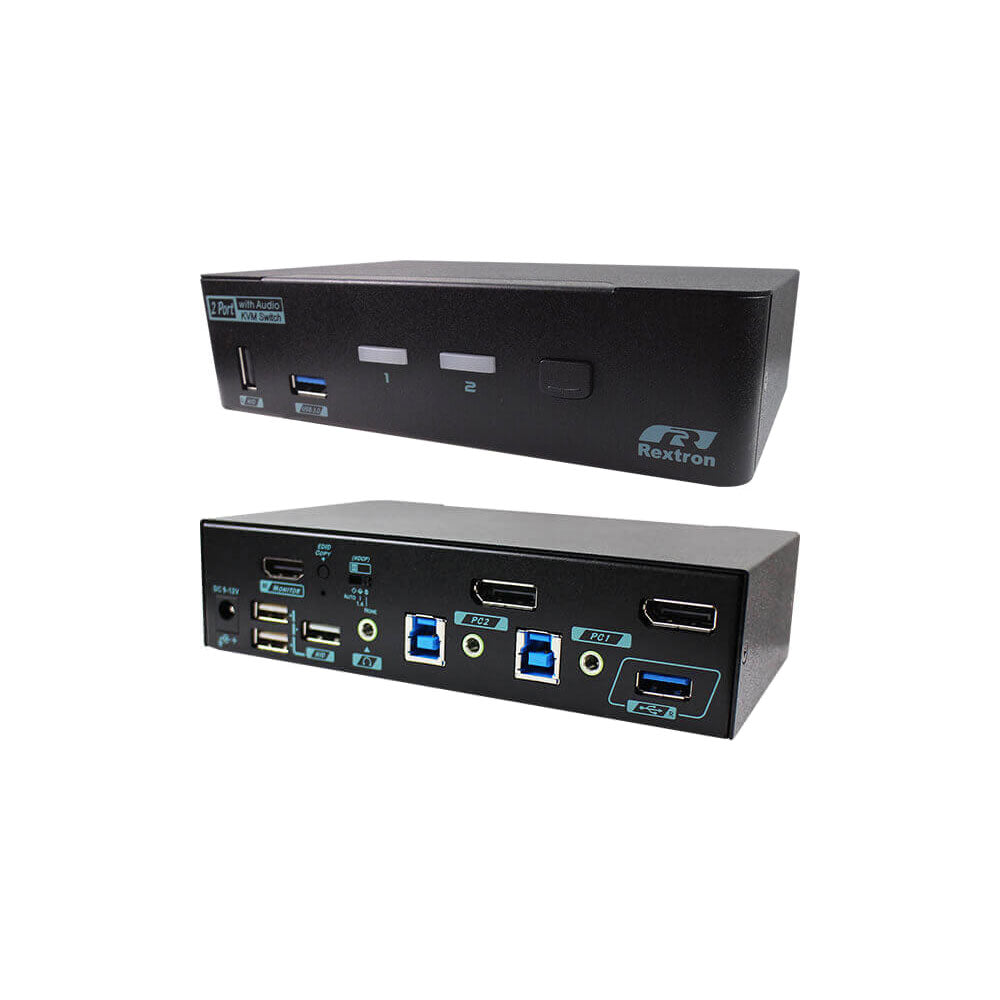

REXTRON 4K - 2 PORT (DP) TO HDMI OUT KVM SWITCH

Features

• Dual-Computer KVM Control - Allows two DisplayPort source computers to share a single HDMI display, keyboard, mouse and audio setup
• 4K Ultra HD Video Support - Supports resolutions up to 3840×2160 @60Hz for sharp, detailed visuals
• DisplayPort to HDMI 2.0 Conversion - Enables connection of DisplayPort computers to an HDMI display
• USB3.2 Gen1 Peripheral Sharing - Provides high-speed USB connectivity for keyboard, mouse and USB devices
• Hotkey and Push Button Control - Enables fast and convenient computer switching
• HDCP Support - Ensures compatibility with protected digital content
• EDID Management - Including EDID copy / auto EDID

Specifications

Computer / Server Ports (Input)

• Video Input: 2× DisplayPorts
• USB Interface: 2× USB3.2 Gen1 Type-B
• Audio Input: 2× Audio jack

Console Ports (Output)

• Video Output: 1× HDMI
• USB Interface: 2× USB3.2 Gen1 Type-A (1× Rear and 1× Front)
• USB HID Ports: 4× USB Type-A (Rear and Front for Keyboard, Mouse and HID Devices)
• Audio Output: 1× Audio Jack

Video Performance

• Maximum Resolution: 4096×2160 @60Hz (4:4:4)
• Maximum Resolution: 3840×2160 @60Hz (4:4:4)

Control and Indicators

• Push Buttons: 1× Port Select and 1× EDID Copy
• LED Indicators: 2× Computer Ready (Green), 2× Computer Selected (Red), 1× EDID Copy
• Control Methods: Hotkey and Push Button

EDID and Architecture

• EDID and HDCP Architecture: Always-Active Engine
• EDID Management: Copy, Auto and Default

Physical

• Dimensions (H × W × D): 44 × 160 × 100mm
• Weight: 640g

Shipping Dimensions

• Length: 30 cm
• Width: 20 cm
• Height: 19 cm
• Weight: 1.20 kg
