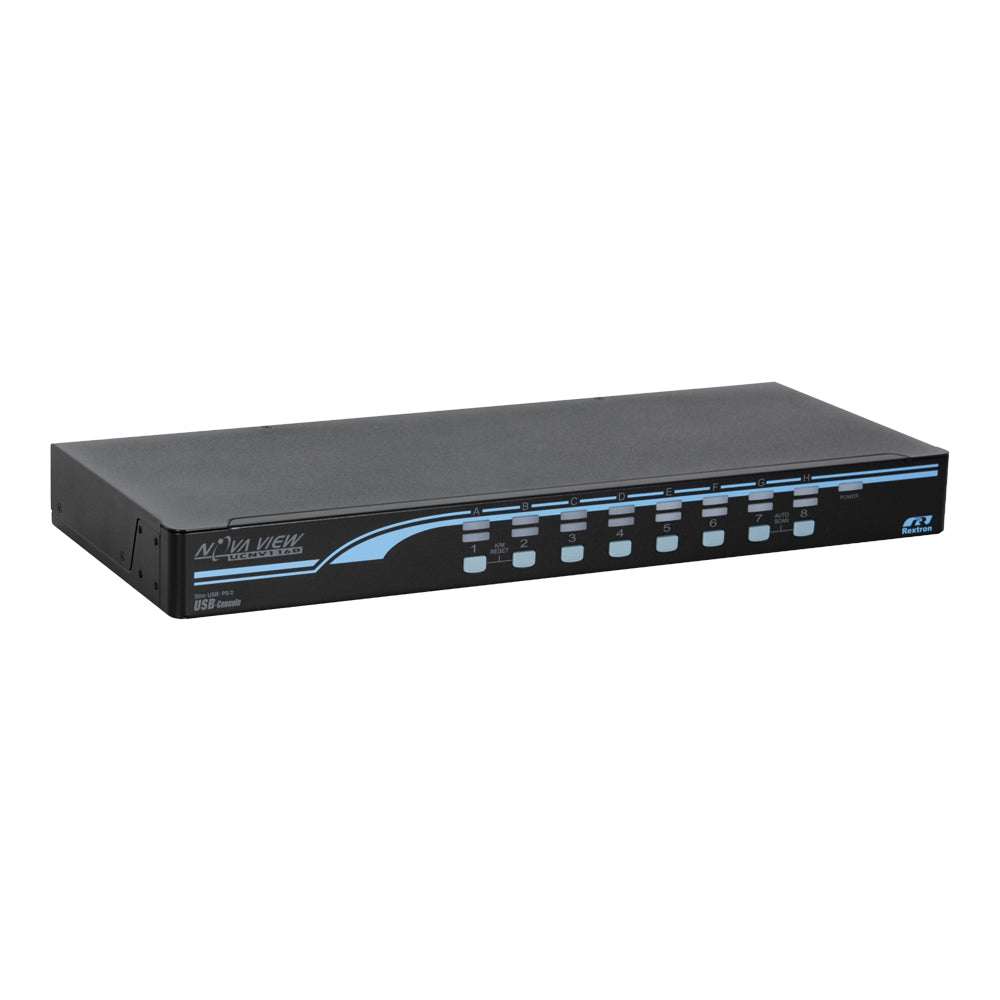

REXTRON 16PORT KVM USB/PS2 CONS,PC SIDE,BRK

Features

• Compact, 1U Design - Space-saving form factor ideal for dense rack installations
• Secure Dedicated Cabling - Uses unique cables for reliable and protected connections
• Auto-Scan Function - Automatically cycles through connected computers sequentially
• Custom Computer Naming - Assigns meaningful names to each connected system
• Name-Based Computer Selection - Quickly identify and select computers by name
• Programmable Scan Filters - Skips unused computers during auto-scan operation
• Nonvolatile Memory Storage - Retains system settings and name entries after power loss
• Password Security Protection - Prevents unauthorised access to connected computers
• User-Friendly OSD Interface - Provides complete control through an easy, on-screen display
• Hotkey Switching Support - Enables fast keyboard-based computer access
• OS-Independent Operation - Transparent to operating systems and applications
• Plug-and-Play Configuration - No software or drivers required
• High Resolution Support - Supports VGA resolutions up to 1920×1440
• DDC2B Compatibility - Ensures accurate monitor communication
• SUN Keyboard Emulation - Supports SUN keyboard environments for broader compatibility

Specifications

• Control Buttons on Front Panel: 16×
• Applicable Computers: USB PC, USB Sun, USB Mac
• On-Screen Display (OSD): Yes
• Plug-and-Play: Yes
• Hotkey Control: Yes
• Computer Name Entry: 14-Characters
• Auto-Scan Interval: 3, 8, 15, 30 Seconds
• Programmable Scan Pattern: Yes
• Security Control: 4-Character Password per Computer
• Cable Type: 1-to-2 USB Cable, Max. 5m
• Video Resolution: 1920×1440, DDC2B
• Computer Connectors: 16× VGA (Grey) + USB Interface
• Console Connectors: 1× USB Mouse, 1× USB Keyboard, 1× VGA Monitor Female
• Rack Size: 1U

Shipping Dimensions

• Length: 61 cm
• Width: 29 cm
• Height: 41 cm
• Weight: 8.00 kg
