Rextron VKSM-S1091-G 4K @30Hz 8+1 Port HDMI Switch
Smart Switching. Scalable 4K Control.

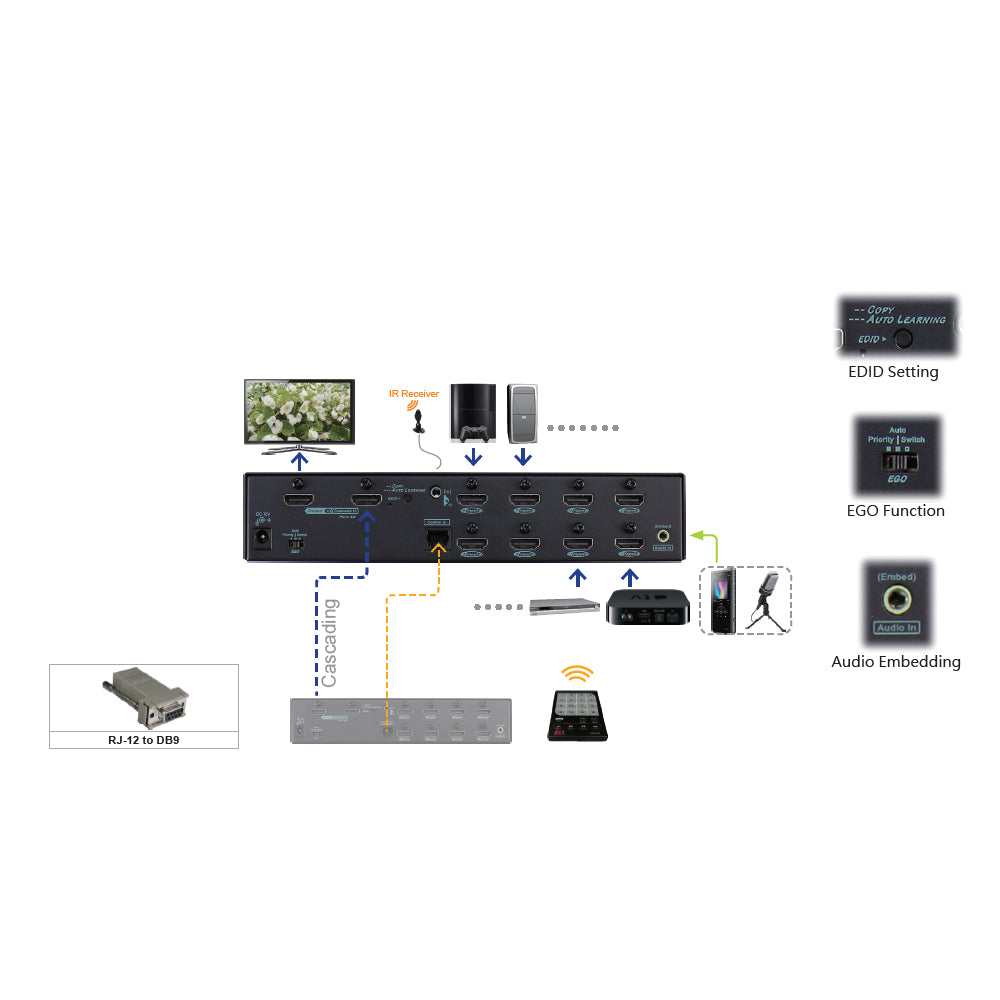

The Rextron VKSM-S1091 enables seamless switching between up to 8+1 HDMI sources, delivering reliable 4K UHD performance for professional AV environments. It supports resolutions up to 4K @30Hz with HDCP compliance, ensuring high-quality video output across connected displays. The dedicated cascade port allows expansion up to 32× sources, making it ideal for larger installations. Multiple control options including front panel, IR remote and serial control provide flexible operation. The built-in audio embed function allows external audio integration for enhanced content delivery. With EDID copy support for optimal compatibility, it ensures stable and efficient signal management in boardrooms, control rooms and commercial AV setups.
Features
- 8+1 HDMI Input Switching - Connects up to eight HDMI sources plus one dedicated cascade input to a single display
- 4K Support - Supports resolutions up to 4K @30Hz with HDCP compliance for high-quality video output
- Scalable Cascade Design - Dedicated cascade port enables expansion up to 32× input sources for larger installations
- Flexible Control Options - Front panel, IR remote and serial control for easy and versatile operation
- Audio Embed Function - Integrates external audio sources into HDMI output for enhanced content delivery
- EDID Management - EDID copy and auto EDID learning functions optimise accurate resolution for your application
- Built-In HDCP Engine - Enables instant port switching without image realignment after switching
- EGO Function - Supports priority, auto-sensing and manual switch modes for versatile port selection
- Auto-Sensing Mode - Automatically selects the latest active video source for display
Specifications
Video
- Video Resolution: 4K @30Hz (4:4:4)

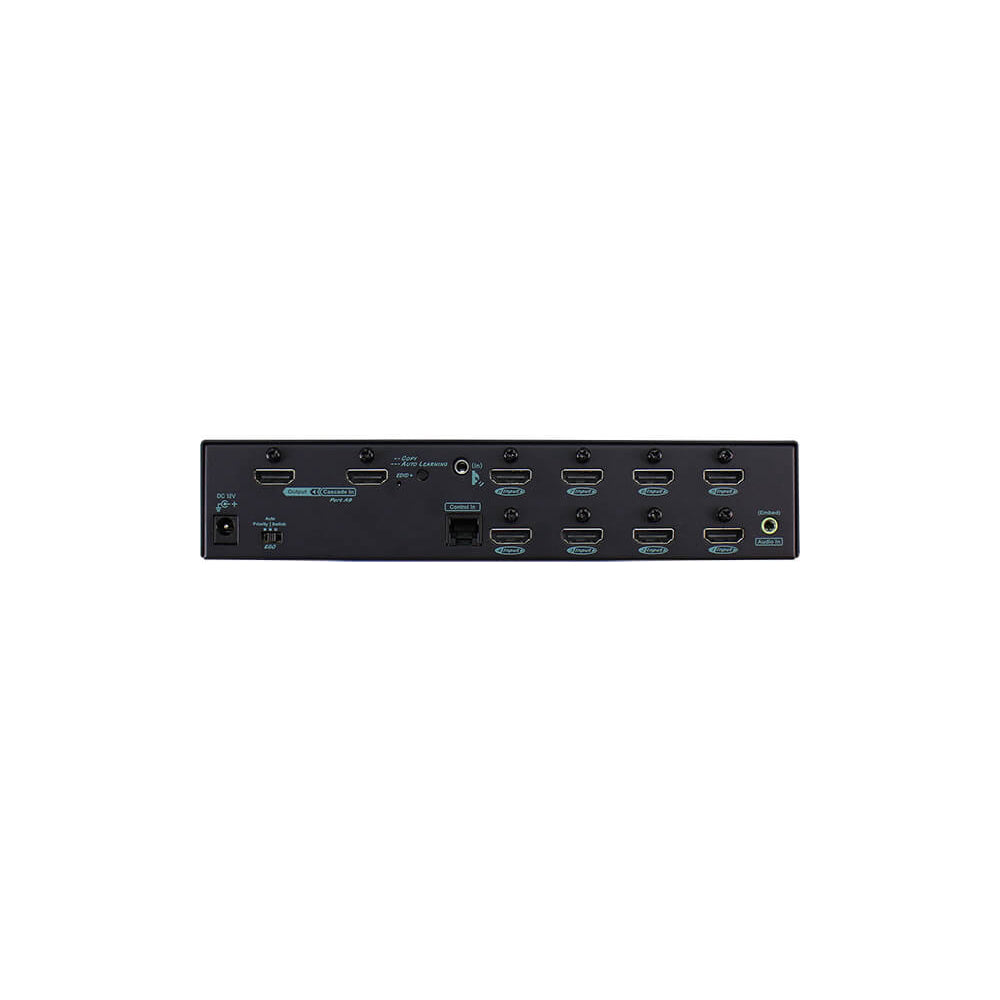

- Video Input: 8× HDMI Ports, 1× HDMI Cascade Port
- Video Output: 1× HDMI Port
- HDCP Compliance: HDCP 1.4
Audio
- Audio Input: 1× 3.5mm Stereo Audio Jack
Control
- IR Control: 1× 3.5mm IR Jack (In)
- Serial Control: 1× RJ11
- Control Modes: Priority / Auto-Sensing / Switch
- Auto-Sensing: Automatically Selects Latest Active Input
Switching And Functions
- EGO Function: Priority, Auto-Sensing and Switch Modes
- EDID: EDID Copy and Auto Learning
- Audio Embed: Supported
- Cascade: Supports multi-stage cascading
Buttons And Indicators

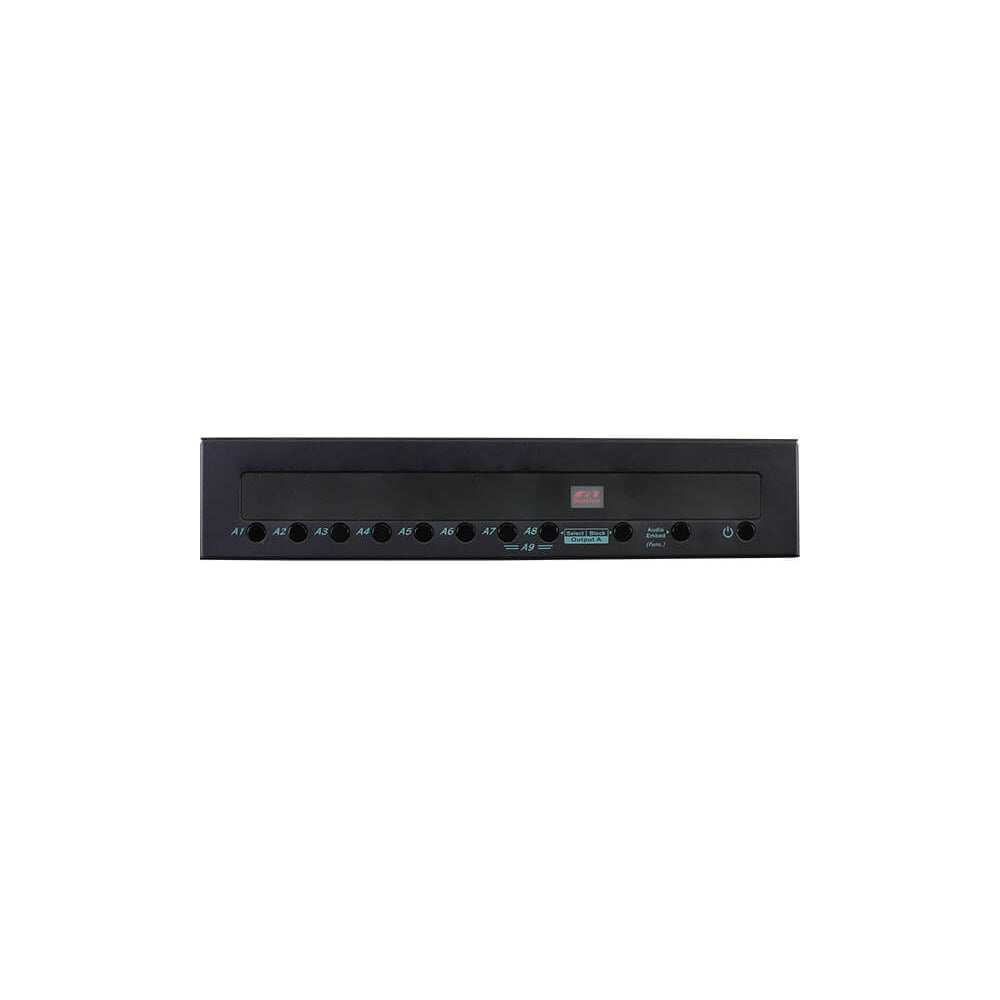

- Push Buttons: Power, EDID Copy, Input Selection (8×), Audio Embed, Output Selection / Block
- LED Indicators: Status (Multi-Colour), Input Indicators (8×)
Hardware
- Enclosure: Metal
- Power Supply: 12V
Physical Specifications
- Dimensions: 44 × 218 × 118mm
- Weight: 930g
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -20~60°C
- Humidity: <80%
