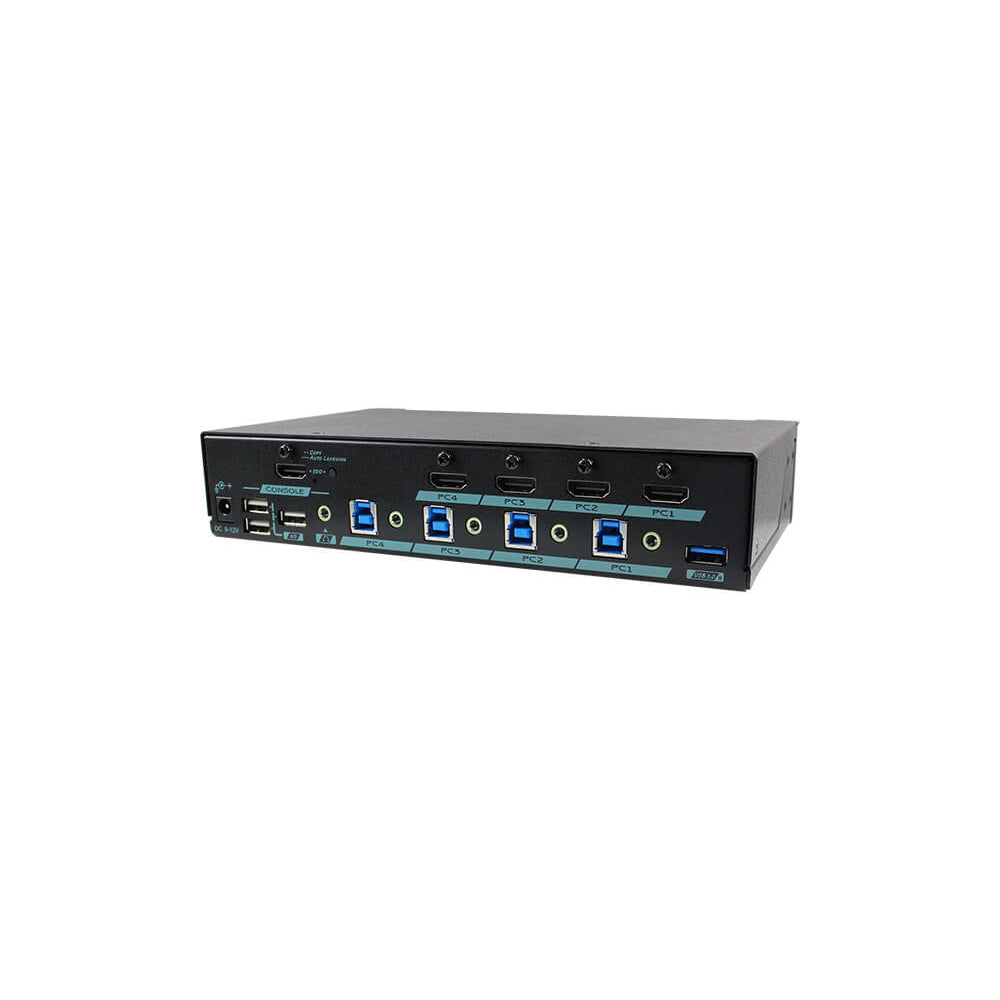

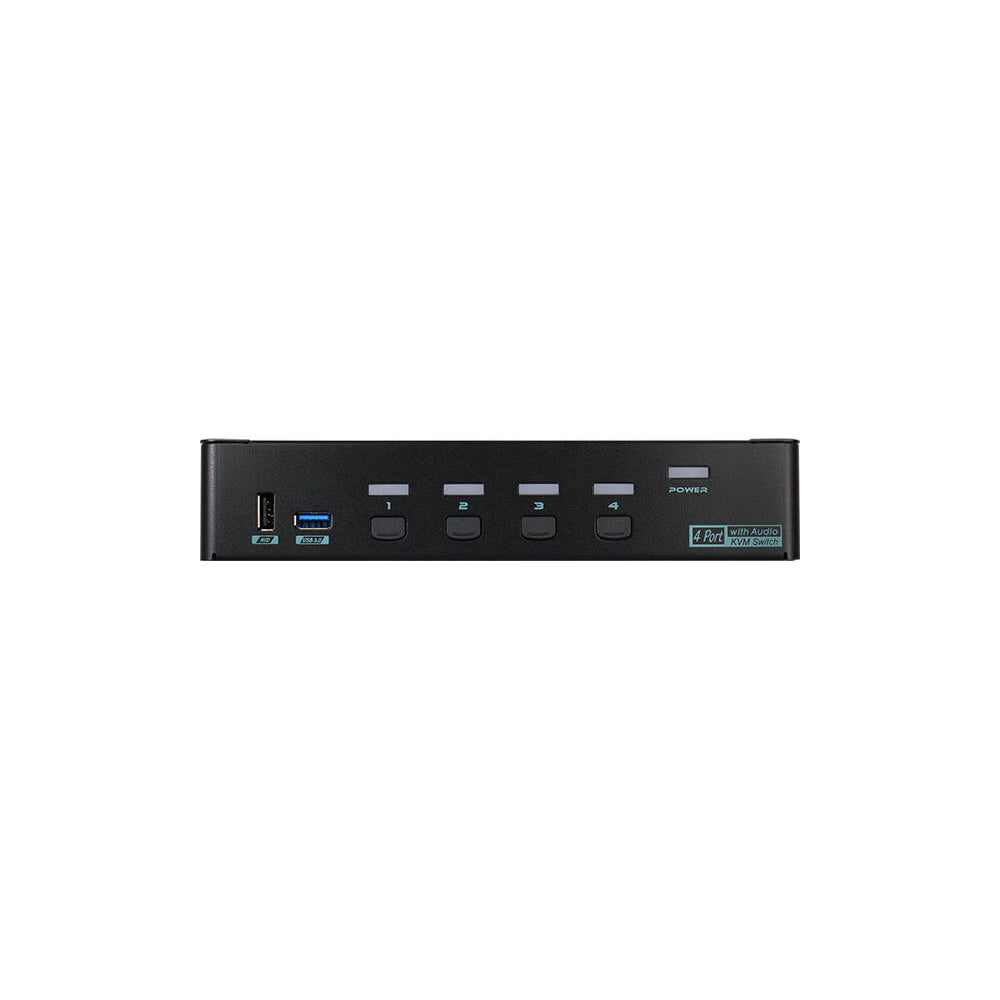

Rextron MAAG-G314 4-Port 4K @60Hz HDMI 2.0 USB3.2 Gen1 KVM Switch
True 4K Control. Seamless Multi-System Switching.
The Rextron MAAG-G314 4-Port HDMI KVM Switch enables up to four computers to share a single console with true 4K @60Hz (4:4:4) video performance. Supporting HDMI 2.0 and HDR10, it delivers exceptional image clarity and colour accuracy for professional and high-performance environments. Integrated USB3.2 Gen1 ports provide fast data transfer up to 5Gbps, ideal for peripherals and storage devices. With flexible switching via hotkeys or front panel buttons, users can easily control multiple systems without interruption. EDID management ensures optimal display compatibility, while plug-and-play functionality eliminates the need for software installation. Built in a durable metal enclosure, it is ideal for offices, control rooms, gaming and industrial applications.
Features
- 4-Port KVM Switching - Allows up to four computers to share a single keyboard, monitor and mouse console
- True 4K HDMI 2.0 Support - Supports up to 4K @60Hz (4:4:4) with HDR10 for superior image quality
- USB3.2 Gen1 Connectivity - High-speed data transfer up to 5Gbps for peripherals and storage devices
- Flexible Control Options - Switch easily using hotkeys or front panel push buttons
- EDID Management - Supports EDID copy, auto and default modes for optimal display compatibility
- Plug-and-Play Operation - No software or drivers required for quick and easy setup
- Front and Rear USB Access - Convenient connectivity for multiple USB devices
- HDCP Compliance - Supports HDCP 2.2 and 1.4 for protected content playback
- Auto-Scan Function - Supports manual and auto-scan with selectable scan intervals
Specifications
Video
- Maximum Resolution: 4096×2160 @60Hz (4:4:4), 3840×2160 @60Hz (4:4:4)

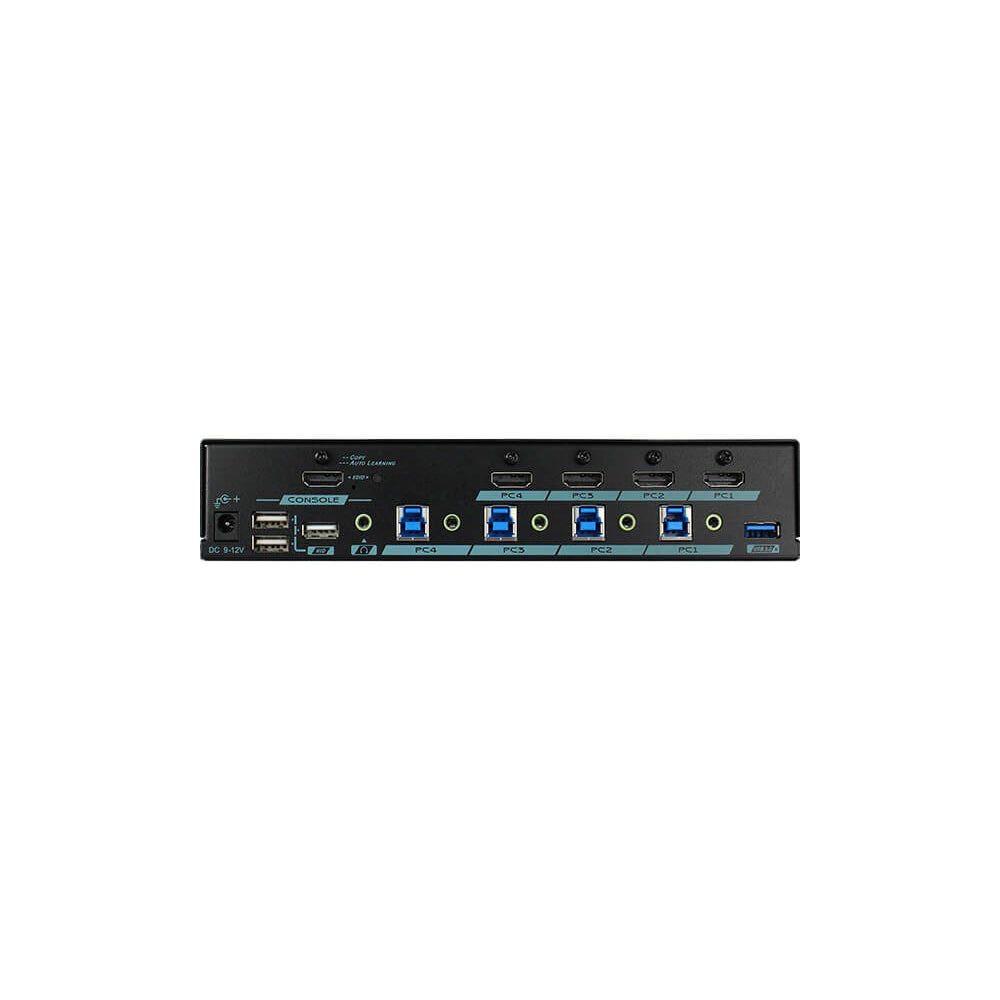

Computer / Server Input Ports
- Video Input: 4× HDMI 2.0
- USB: 4× USB3.2 Gen1 Type-B
- Audio Input: 4× 3.5mm Audio Jack
Console Output Ports
- Video Output: 1× HDMI 2.0
- USB: 2× USB3.2 Gen1 Type-A (Front and Rear)
- USB HID: 4× USB Type-A (Front and Rear)
- Audio Output: 1× 3.5mm Audio Jack
Control And Management
- Control Methods: Hotkey and Push Button
- Push Buttons: 4× Port Select, 1× EDID Copy
- EDID Management: Copy / Auto / Default
- Auto Scan Interval: 3, 8, 15, 30 Seconds
- HDCP Compliance: HDCP 2.2 and 1.4
Indicators
- LED Indicators: 4× PC Ready, 4× PC Select, 1× EDID Copy, 1× Power
Power
Environment
- Operating Temperature: 0~40°C (Humidity <80%)
- Storage Temperature: -20~60°C
Physical
- Dimensions: 44 × 220 × 130mm
- Material: Metal
- Weight: 1.1kg
