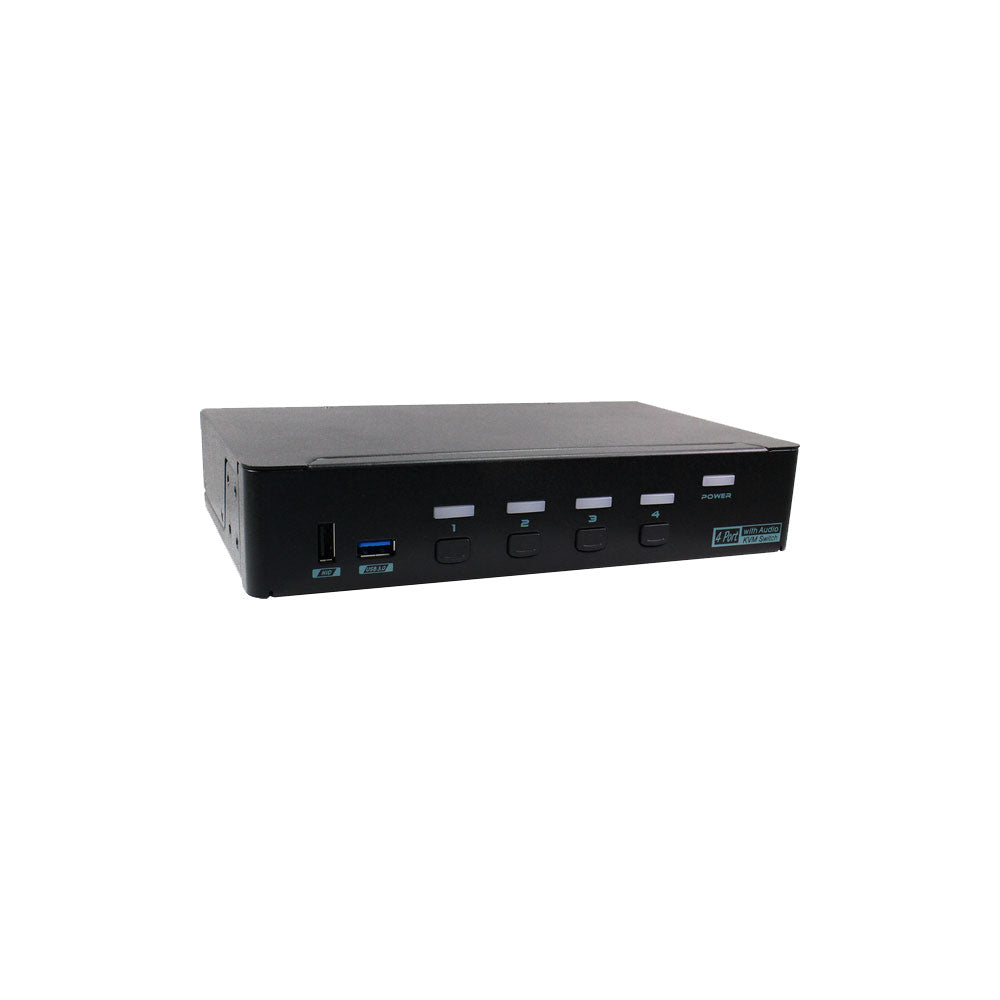

Rextron KAAG-E3114 4-Port USB3.0 KVM Switch with VGA and Audio
A powerful desktop control solution that lets you manage four computers from a single VGA display, keyboard, mouse and audio setup. The Rextron KAAG-E3114 combines smooth Full HD video switching with high-speed USB3.0 peripheral sharing and virtual HID support for seamless transitions between systems. With push-button and hotkey control, auto-scan functionality and clear status indicators, it is ideal for offices, control rooms and technical workspaces that demand efficiency, reliability and clean multi-PC management.
Features
- 4-Computer USB Sharing - Allows four computers to share USB peripherals including 4× HID devices and 3× USB3.0 devices
- Full HD Video Support - Supports resolutions up to 1920×1080 and WUXGA 1920×1200
- Virtual HID Support - Enables simultaneous virtual HID functionality for smooth switching
- Front Panel Push Buttons - Simple manual computer selection from the unit
- Hotkey Switching - Fast keyboard-based switching between connected computers
- Auto Scan Function - Automatically cycles through connected computers
- Selectable Scan Time Interval - Adjustable timing for auto scan operation
- Audible Buzzer Feedback - Confirms computer switching with sound indication
Specifications
Input Ports
- 4× VGA (Single-View, 4 PCs)
- 4× USB3.0 Type-B
- 4× Audio Jack (Input)
Output Ports
- 1× VGA
- 2× USB3.0 Type-A (Rear and Front)
- 4× USB HID Type-A (Rear and Front)
- 1× Audio Jack (Output)
Maximum Video Resolution
- Full HD: 1920×1080
- WUXGA: 1920×1200
Control
- Push Buttons: 4× Port Selection
LED Indicators (Power / Status)
- 4× Computer Ready (Green)
- 4× Computer Selected (Red)
Automatic Scan Interval
