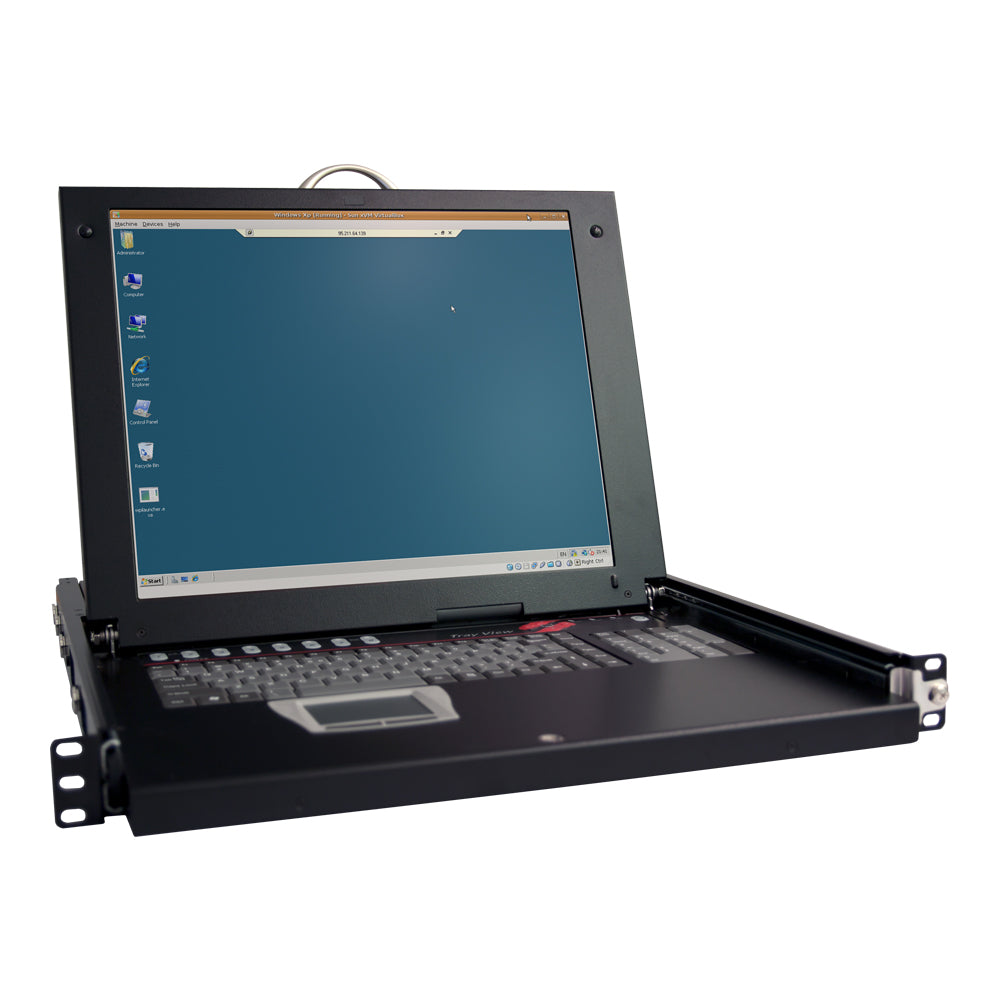

Rextron HUSH-108DC 8-Port 17" KVM Console Drawer
Space-Saving Rack Console Control For Professional Server Management.
The Rextron HUSH-108DC 8-Port 17" KVM Console Drawer is a professional 1U rackmount solution designed for efficient server room and data centre management. Featuring a 17-inch LCD display, integrated keyboard and touchpad, this compact console drawer helps maximise valuable rack space while providing convenient access to connected systems. The slide-out and foldable design allows smooth operation and secure storage when not in use. Built with a durable metal enclosure and anti-glare screen, the HUSH-108DC delivers reliable performance for demanding IT and networking environments.
Features
- 17-Inch Flip-Open LCD Panel - Supports up to 1280 × 1024 resolution for clear system monitoring
- LED Backlight Technology - Delivers lower power consumption compared to standard LCD monitors
- 1U Rackmount Design - Saves valuable rack space in server rooms and data centres
- Integrated 105-Key Keyboard - Full low-profile keyboard with sturdy construction for reliable operation
- Built-In Touchpad - Allows convenient local server and network management
- Multi-Platform Compatibility - Supports PS/2, USB, Mac and Sun interface systems
- Universal C-36 Connector - Enables connection between the console drawer and Integra KVM switch module
- Locking Mechanism - Secures the drawer when pulled out, pushed in or folded down
- Slide-Out Console Drawer - Enables smooth access and compact storage when not in use
- Standard 19-Inch Rack Compatibility - Fits standard 1U rack cabinet installations

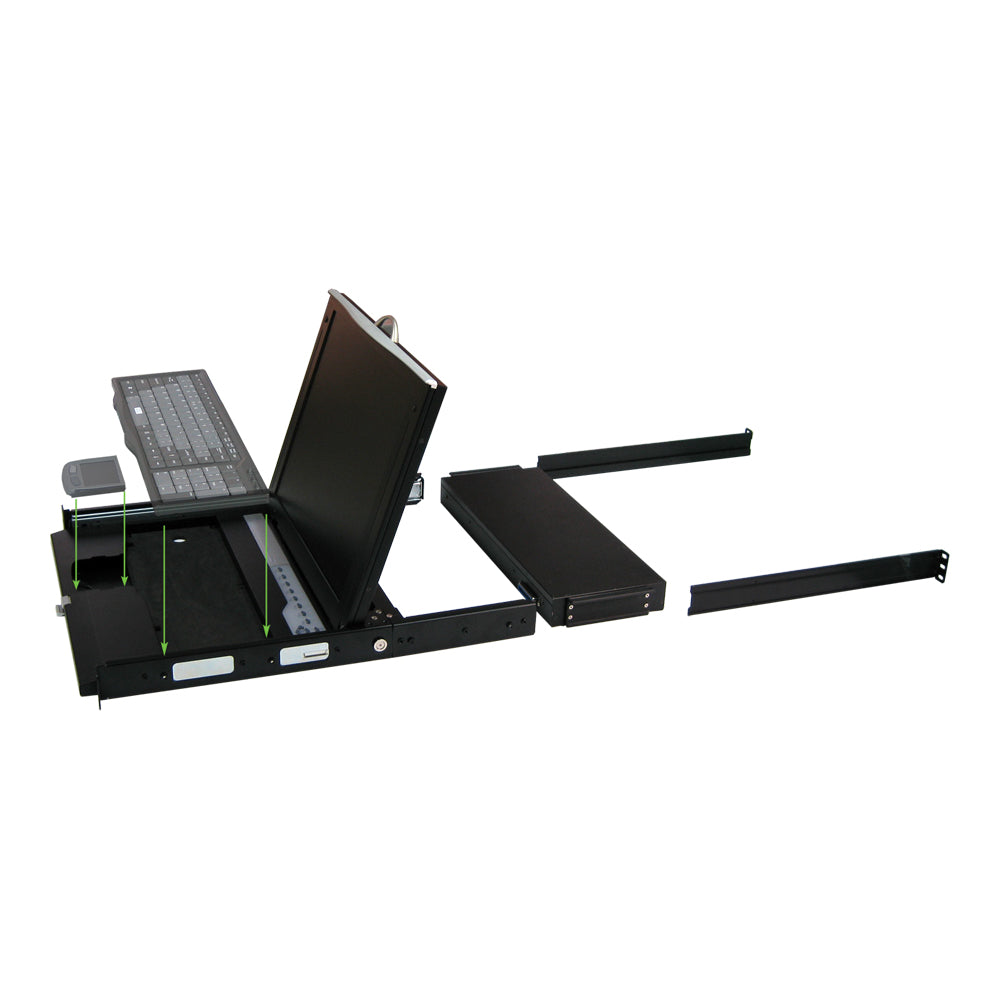

- Flexible Rack Installation - Suitable for rack cabinets with depths from 20" (50cm) and above with appropriate rear bracket and extension kit
- Durable Metal Construction - Built for professional IT and networking environments
Specifications
- Display Panel: 17" TFT-LCD with LED Backlight
- Active Display Area: 337.92 (H) × 270.336mm (V)
- Pixel Pitch: 0.264 (H) × 0.264 (V)
- Viewing Angle: 170° / 160°
- Brightness: 250cd/m² (Center)
- Hotkey Control: Yes
- User Control: OSD Control (Auto Saving)
- Input Signal: RGB Analogue, H/V Separate
- Plug-and-Play: Yes
- Surface Treatment: Anti-Glare Treatment
- Power Consumption: 13W (No Inverter, All White Pattern)
- Operating Environment: 0~40°C, Humidity <80%
- Storage Temperature: -20~60°C
- Enclosure Material: Metal
- Dimensions (H × W × D): 44 × 440 × 565mm
