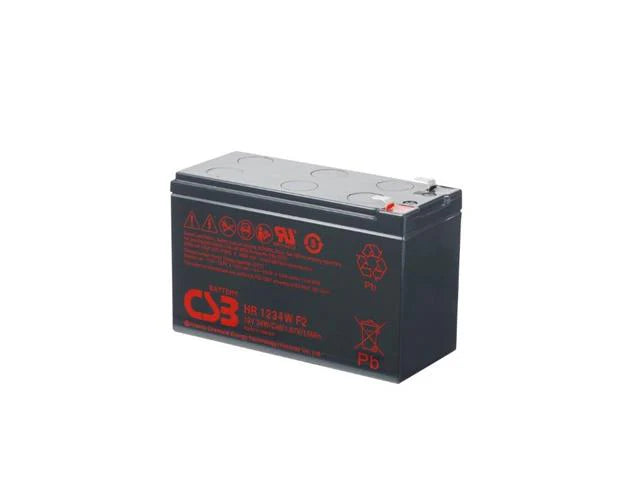

Rechargeable Battery 12V9AH { L=150 W=65 H=94mm } F2 Terminal 6.4mm

• Nominal Voltage : 12V (6 cells per unit)
• Nominal Capacity : 34W @15min-rate to 1.67V per cell @25°C (77°F)
• Weight : Approx. 2.50 Kg (5.51 lbs)
• Maximum Discharge Current : 130A (5sec)
• Internal Resistance : Approx. 19.0 mΩ
• Short Circuit Current : 349A
• Maximum Charge Current : 3.4A
• Terminal types : F2 -Faston Tab250

Dimensions

• Length (L) : 150.9±2.0 mm 5.94±0.08 inch
• Width (W) : 64.8±1.0 mm 2.55±0.04 inch
• Container Height (h) : 94.3±1.0 mm 3.71±0.04 inch
• Overall Height (H) : 98.6±1.0 mm 3.88±0.04 inch
