LinkQnet 1U 10" 12-Port CAT6 Patch Panel
Bring Neat, Structured Cabling To Your Mini Rack.
The LinkQnet 1U 10" 12-Port CAT6 Patch Panel provides a compact termination and distribution point for compatible LinkQnet 10" Mini Open Racks. Twelve numbered RJ45 ports help keep network connections clearly identified, while dual IDC wiring supports both T568A and T568B termination standards. Designed for solid and stranded 22~26AWG network cable, it is ideal for homelab, Home Assistant, smart-home and enthusiast installations where space and cable organisation matter. The durable black metal panel blends seamlessly with matching LinkQnet shelves, blanking panels and brush panels, creating a neat, coordinated desktop rack setup.
Features

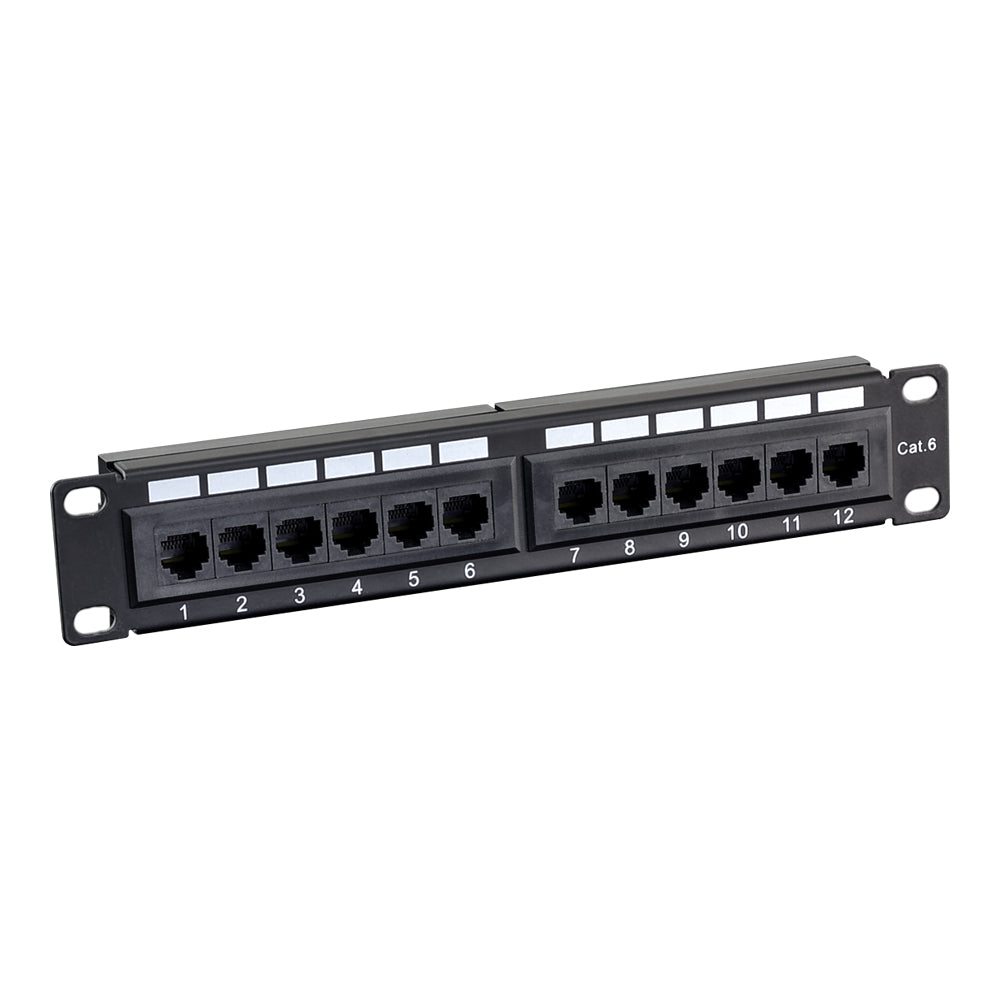

- 12-Port Network Distribution - Provides twelve numbered RJ45 ports for organised network connections
- Compact 10" Rack Format - Designed for compatible LinkQnet Mini Open Racks

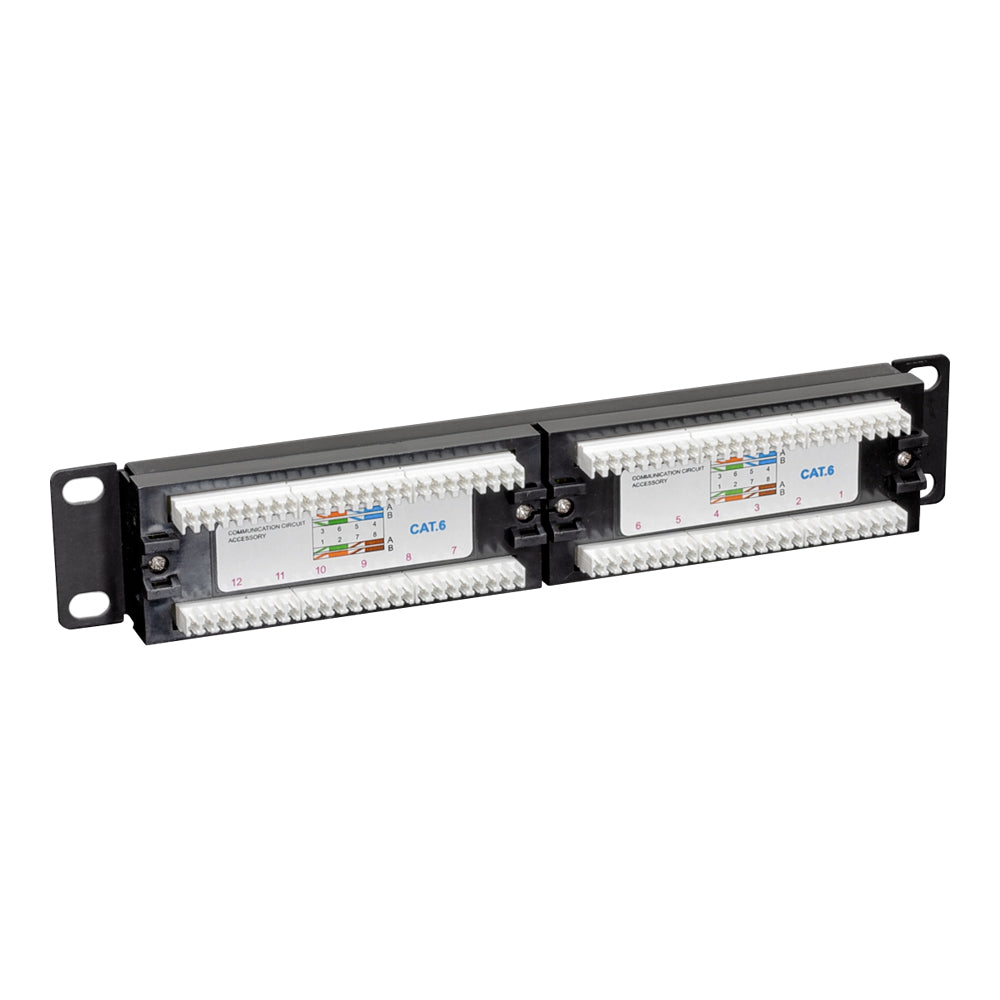

- Dual IDC Termination - Supports both T568A and T568B wiring configurations
- Solid and Stranded Cable Support - Accepts compatible 22~26AWG network conductors
- Clear Port Numbering - Makes connected cables easier to identify and manage
- Integrated Label Holders - Provides space for custom port identification
- Durable Contact Design - Uses phosphor bronze contacts with nickel and gold plating
- Reliable Cable Retention - Designed to maintain secure connections between plugs and sockets
- 1U Rack Height - Uses one rack unit within compatible 10" installations
- Homelab and Smart-Home Ready - Ideal for Home Assistant, mini-server and enthusiast network builds
- Durable Metal Construction - 1.2mm SPCC panel provides a sturdy rackmount structure
- Matching Black Finish - Complements the wider LinkQnet 10" rack accessory range
Specifications
- Rack Format: 10"
- Rack Height: 1U
- Network Ports: 12× RJ45
- Wiring Standards: T568A And T568B
- Termination Type: Dual IDC
- Supported Cable Conductors: Solid And Stranded
- Supported Wire Gauge: 22~26AWG
- Panel Material: 1.2mm SPCC Steel
- Panel Finish: Black Painted
- RJ45 Housing Material: Polycarbonate
- IDC Housing Material: Polycarbonate, UL94V-2
- Jack Bracket Material: ABS
- PCB Rating: FR4, UL94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Nickel with Gold-Plated Contact Area
- Insertion Force: 900g for 8 Contacts
- Plug Retention Strength: 7.7kg
- RJ45 Durability: up to 750 Insertion Cycles
- IDC Durability: up to 200 Punchdown Cycles
- Operating Temperature: -40~70°C

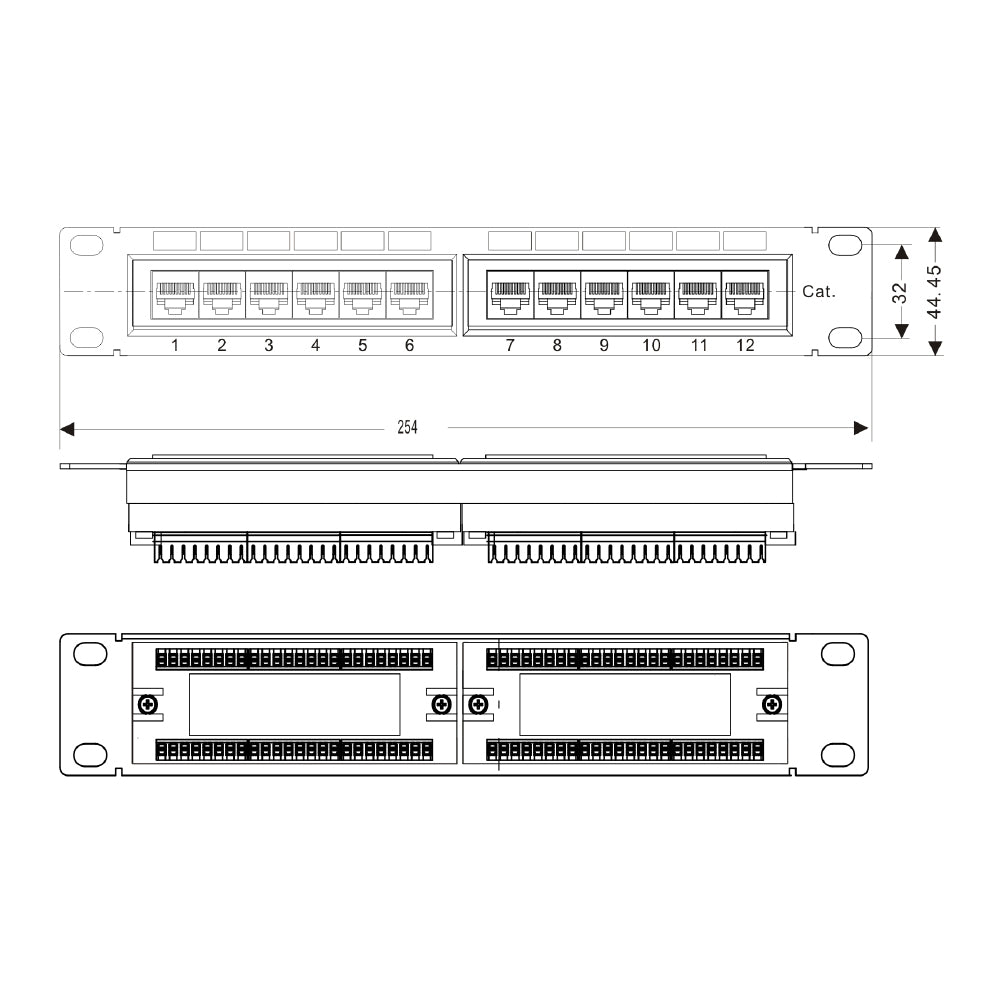

- Overall Width: 254mm
- Mounting Width: 236mm
- Overall Height: 44.45mm
- Port Section Height: 32mm
- Colour: Black
- Installation Type: Rackmount
Compatible Series
- LinkQnet 4U To 9U 10" Mini Open Racks
- LinkQnet 1U 150mm Deep Cantilever Shelf
- LinkQnet 1U Blanking Panel
- LinkQnet 1U Brush Panel
