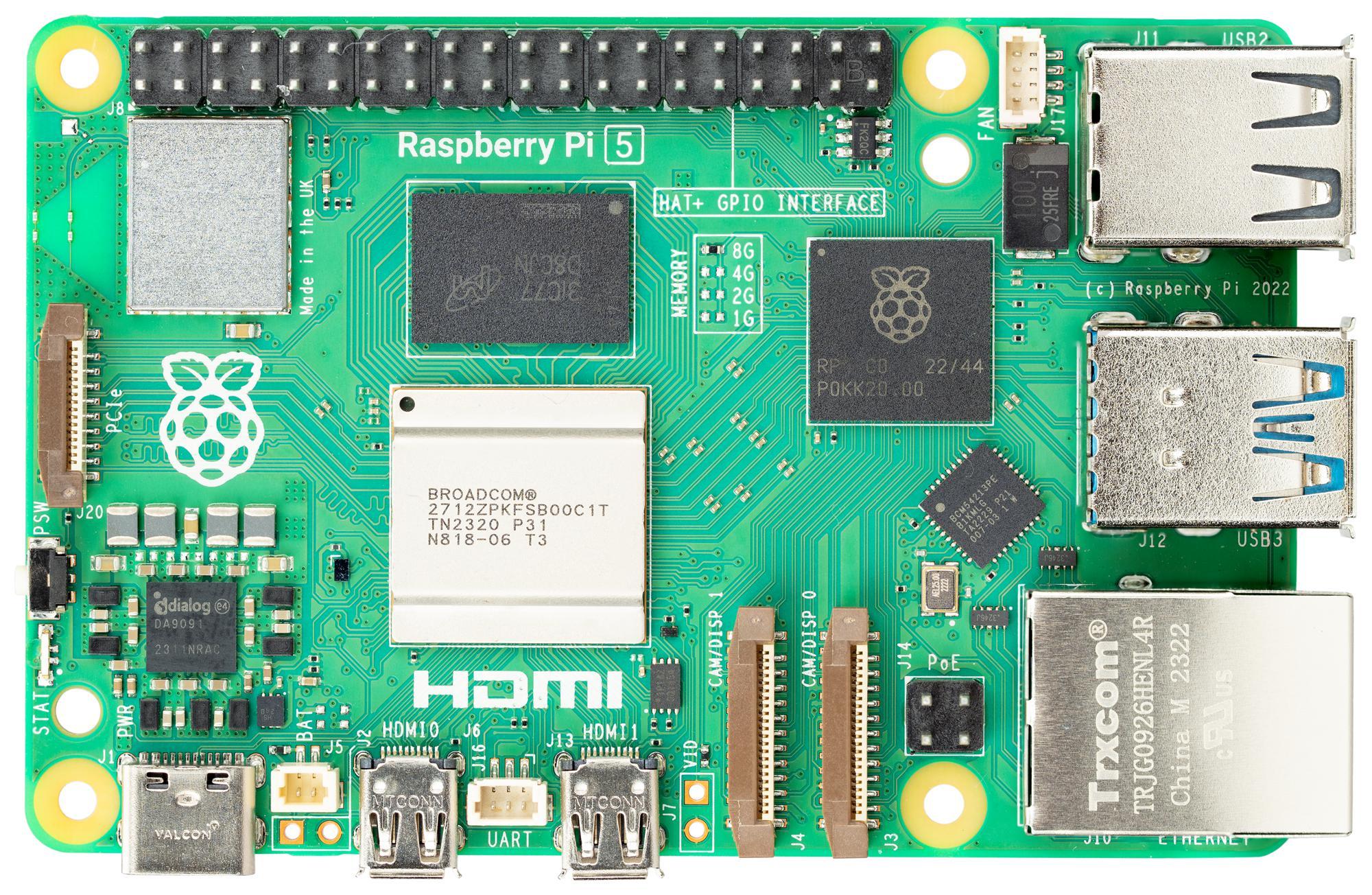

RASPBERRY PI 5 4GB - RASPBERRY4GB
Raspberry Pi 5 4G
Specs
Processor: Broadcom BCM2712
Core Type: Cortex-A76 64- Bit (ARMv8)
No. Of Cores: Quad Core
CPU Clock: 2.4GHz
GPU: VideoCore VII
CPU Clock: 800MHz
Multimedia Graphic
4Kp60 HEVC (H.265) Hardware Decode
H.264 decode from CPU
H.264 encode from CPU
OpenGL ES 3.1, Vulkan 1.3
OS Storage
MicroSD Card Slot, with Support for High-Speed SDR104 Mode
NVMe SSD (M.2 HAT Via PCIe Socket)
NVMe or SATA SSD (Via USB3.0)
Ram
LPDDR4X- 4627 SDRAM (4GB)
Ethernet (RJ45)
Gigabit Ethernet
USB Port
2 × USB 3.0 Ports (Simultaneous 5Gbps)
2 × USB 2.0
HDMI
2 x Micro HDMI
Support True 2 x 4Kp60
WIFI : 802.11 b/g/n/ac (2.4GHz + 5GHz & Shielded)
Bluetooth: 5.0 + BLE (Shielded)
Antenna
PCB Antenna
40 Pin Headers
Dedicated Port
UART
RTC External Battery
Cooler Fan
Real Time Clock (RTC): Yes Built In
Power Button: Yes
Camera Port (CSI) Display Port (DSI)
2 x 4 Lane MIPI Camera or Display Transceivers
Support 2 x Camera or 2 x Display or 1 x Display
PCIe Interface: 1 x PCIe Gen2.0
Dimension: 85mm x 56mm
Power Input
Full Power: USB C PD 5V@5A PSU
Normal Power: USB C 5V (up to 3A)
5V via GPIO Header (up to 3A)
Power Over Ethernet, requires New PoE + HAT
