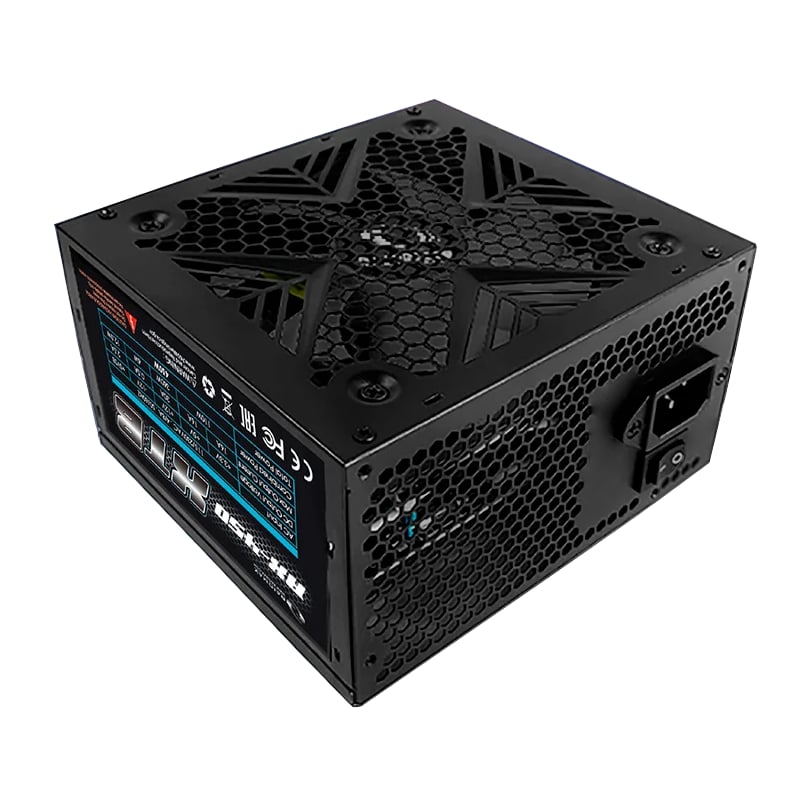

The Raidmax XT-Series 450W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.
FEATURES:
- Single +12V rail output for higher power usage
- C6/C7 power-saving mode on Intel Haswell CPU
- Supports Intel ATX12V V2.3
- Up to four SATA connectors for multiple HDDs/SSDs
- Over Voltage Protection (OVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Honeycomb ventilation design for optimal heat dissipation
- Superior cooling performance with a Raidmax silent 120mm fan
SPECIFICATIONS:
- Total Power: 450W
- AC Input: 230VAC, 4A, 50/60Hz
- DC Output Voltage:
- +3.3V: 16A – 110W
- +5V: 16A – 110w
- +12V: 30A – 360W
- -12V: 0.5A – 6W
- +5VSB: 2.5A – 12.5W
- Connectors:
- M/B 20+4 PINS: 1
- CPU 4+4 PINS: 1
- PCI-E 6+2 PINS: 1
- PCI-E 6 PINS: 1
- SATA: 4
- Molex 4 PINS: 2
- Protective Features: OVP, OPP, SCP
- Dimensions: 15 x 14 x 8.6 cm
What’s In The Box:
- Raidmax XT-Series 450W Non-Modular PSU – Black x1
