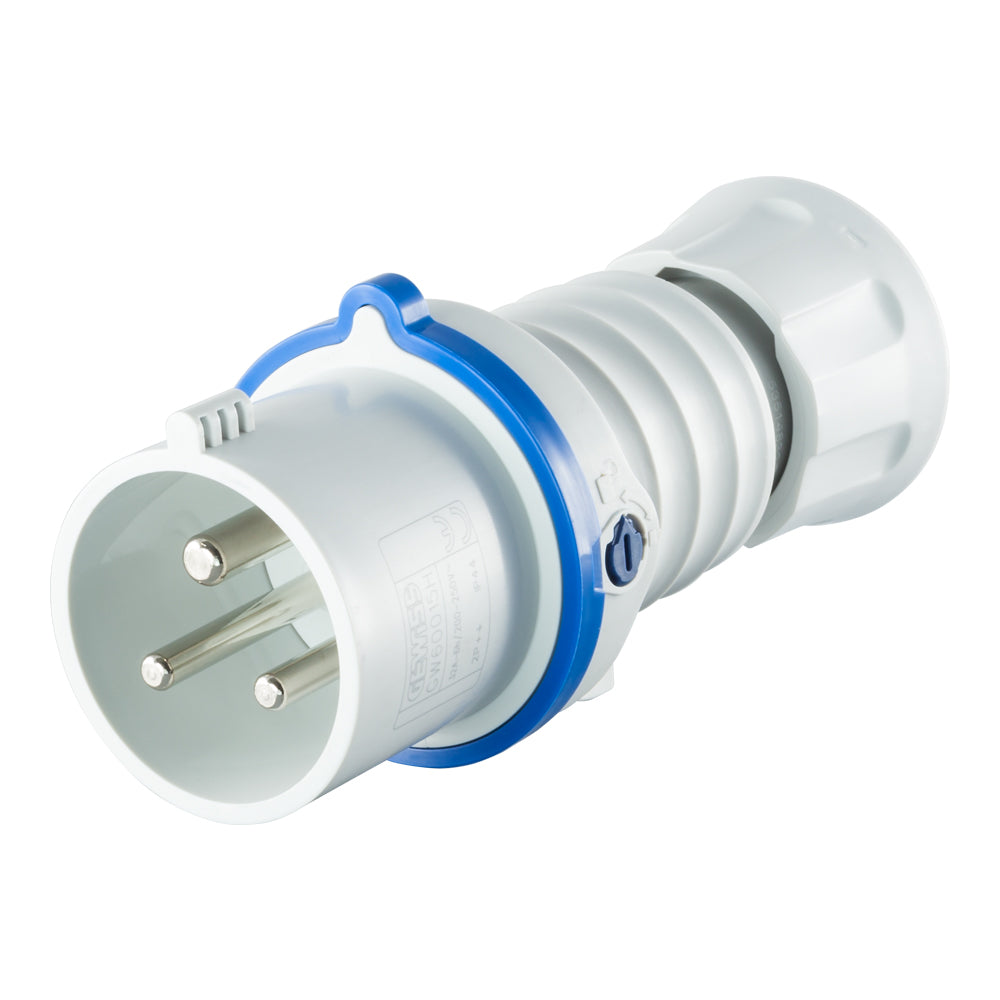

Hubble GW60015H 32A 2-Prong plus Earth IEC309 HP Straight Industrial Plug
Reliable Industrial Power Connectivity for Demanding Environments.
The Hubble GW60015H 32A 2-Prong plus Earth IEC309 HP Straight Industrial Plug is a high-performance 32A power connector designed for industrial, commercial and construction applications. Featuring a robust halogen-free housing, IK09 impact resistance and IP44/IP54 protection, it delivers dependable performance in challenging environments. The nickel-plated contacts provide excellent resistance to corrosion and oxidation, while the screw terminal design ensures secure cable termination and long-term reliability. Designed to IEC 60309 standards, the GW60015H is ideal for temporary power distribution, machinery, generators and industrial equipment installations.
Features
- 32A Industrial Plug - Designed for heavy-duty power applications
- IEC 60309 Compliant - Meets international industrial connection standards
- 2P+E Configuration - Suitable for 200-250V AC installations
- IP44/IP54 Protection - Resistant to dust and water splashes
- IK09 Impact Resistance - Durable construction for demanding environments
- Nickel-Plated Contacts - Enhanced protection against corrosion and wear
- Halogen-Free Housing - Improved safety and environmental compliance
- Screw Terminal Wiring - Secure and reliable cable termination
- Wide Operating Range - Suitable for temperatures from -25°C to +55°C
Specifications
- Series: IEC309 HP
- Type: Straight Plug
- Rated Current: 32A
- Rated Voltage: 200-250V AC
- Frequency: 50/60Hz
- Pole Configuration: 2P+E
- Protection Rating: IP44/IP54
- Impact Resistance: IK09
- Cable Entry Capacity: 9.2-19.9mm
- Flexible Cable Capacity: 2.5-6mm²
- Rigid Cable Capacity: 2.5-10mm²
- Wiring Method: Screw Terminals
- Contact Material: Nickel-Plated Conductors
- Housing Material: Halogen-Free Thermoplastic
- Operating Temperature: -25°C to +55°C
- Dimensions: 162 × 71mm
- Manufactured in accordance with IEC 60309-1 and IEC 60309-2 standards
