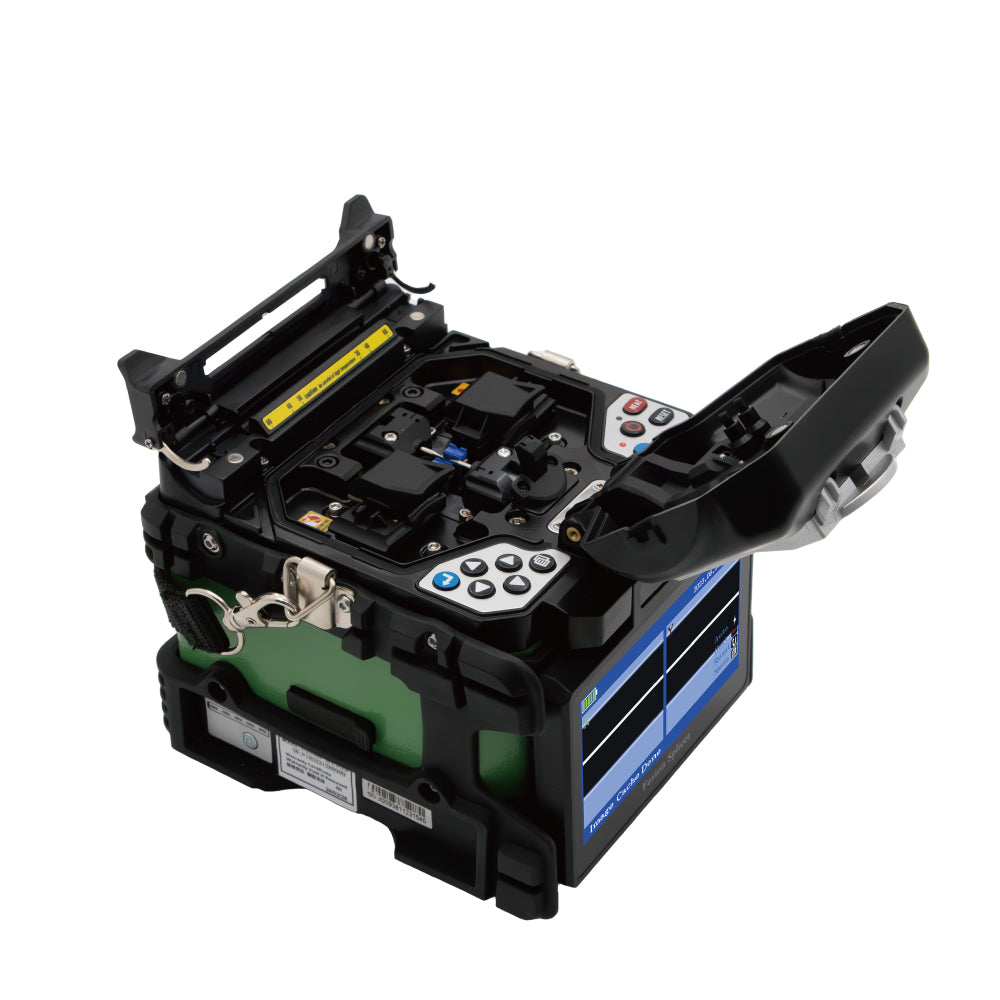

PROSKIT TE-6801F-W FIBRE OPTIC FUSION SPLICING MACHINE KIT

Features

• 6-Motor Core Alignment - Precise core-to-core splicing for low-loss performance
• Fast Splicing and Heating - 9s splice time and 30s heat cycle for efficient workflows
• 4.3" High-Resolution LCD - Adjustable display for clear viewing in any position
• 520× Magnification - Accurate X/Y axis alignment for reliable results
• High-Capacity Battery - up to 220× splice and heat cycles per charge
• Rugged Field Design - Wind and dust-resistant for dependable outdoor use

Specifications

• Applicable Fibre: SM, MM, NZDS, EDF
• Average Splice Loss: 0.015dB (SM), 0.01dB (MM), 0.04dB (NZDS), 0.04dB (EDF)
• Splice Time: 9s (SM Fibre)
• Cleave Length: 10~16mm
• Fibre Support: Cladding 80~150µm, Coating 100~1000µm
• Return Loss: ≥60dB
• Magnification: 520× (X or Y), 260× (X and Y)
• Working Motor: 6-Motors
• Fibre Alignment: Core-to-Core
• Fibre Recognition: G651 / G652 (654) / G655
• Tension Test: 2.0N (200gf)
• Splice Programs: 50 Groups
• Electrode Life: 5,000 Times
• Protection Sleeve Length: 20~60mm
• Storage (Results): 6,000 Groups
• Storage (Images): 100 Groups
• Display: 4.3" High-Resolution Colour LCD
• Interface: Micro USB
• Working Light: 1× LED
• Power Indication: 5× LED
• Operating Conditions: -10~50°C, 0~95% RH, up to 5,000m
• Power Supply: Lithium Battery 10.95V 5.2A
• Adapter: Input AC 100~240V, Output DC15V 5A
• Dimensions (W × D × H): 149 × 135 × 135mm
• Weight: 1.75kg (With Battery), 1.4kg (Without Battery)
