Features

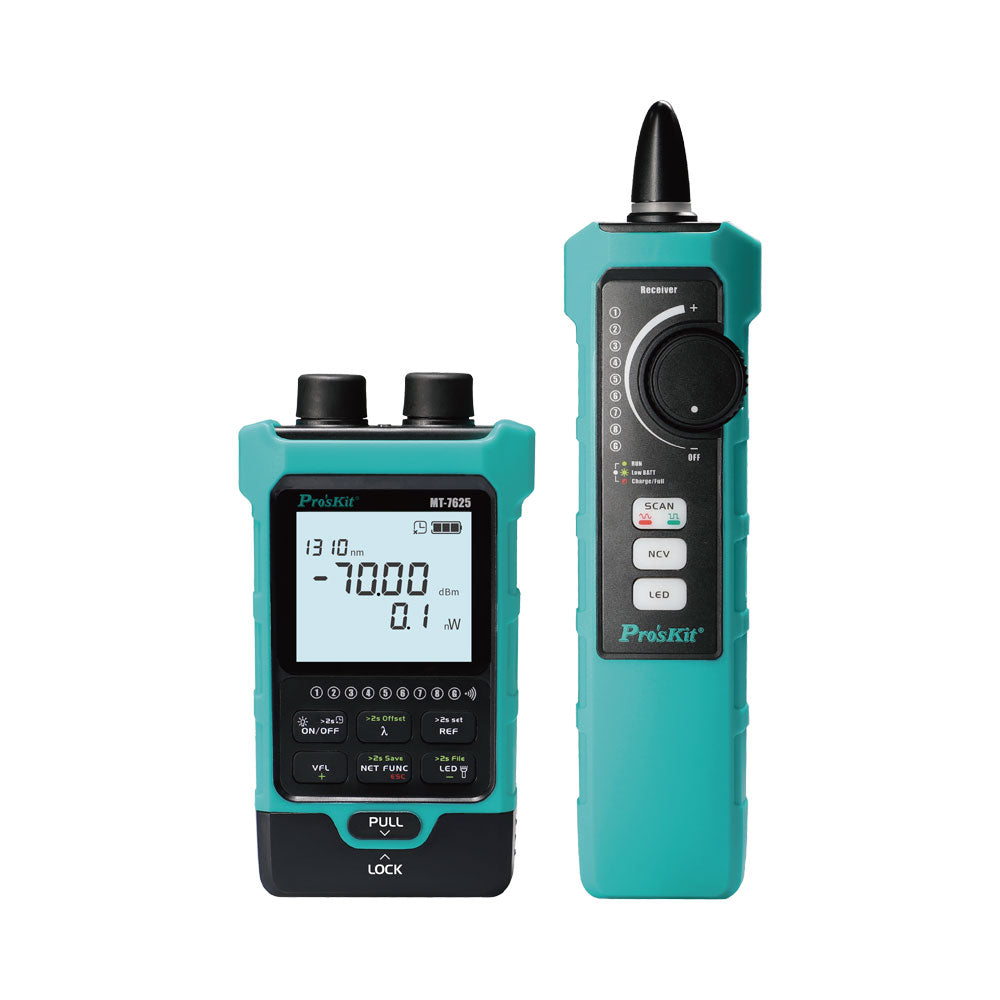

- All-in-1 OPM and Tone Probe - Combines optical power measurement and cable tracing in one tool
- 10× Wavelength Power Meter - Supports multi-wavelength fibre testing for accurate diagnostics
- Visual Fault Locator - Quickly identifies fibre breaks bends and connection faults
- Dual-Mode Cable Mapping - Supports analogue and digital cable mapping modes
- Single-Way Plug Crimping Quality Test - Verifies correct termination and crimp quality
- 1-on-2 LAN Cable Testing - Tests one LAN port against two endpoints for faster verification
- Dual LED Light - Integrated illumination for low-light working environments
- Non-Contact Voltage Detection (NCV) - Improves safety during cable testing
- Data Upload Function - Enables transfer of test results for analysis and reporting
- Rechargeable Li-ion Battery with USB Type-C Charging - Provides reliable portable power for field use
Specifications
Optical Power Meter SPECIFICATIONS and Functions
- Detector Type: InGaAs
- Wavelength Range: 700~1700nm
- OPM Connector: 2.5mm Universal Connector
- Measurement Wavelengths: 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650nm
- Measurement Range: -70~+10dBm
- Accuracy* (1550nm and 1310nm): ±0.2dB
- Accuracy* (850nm, 980nm, 1300nm, 1490nm, 1625nm, 1650nm): ±0.3dB
- Accuracy* (1270nm and 1577nm): ±1dB
- Resolution: 0.01dB
- Measurement Units: dB, dBm, mW, uW, nW
- Modulation Detection: 270Hz, 330Hz, 1kHz, 2kHz (only for ProsKit light source products)
- Data Storage: 500× Groups
- Wavelength Memory: Yes
- User Self-Calibration: Yes
- REF Function: Yes
- Back Light: Yes
Visual Fault Locator Functions
- Output Power: 15mW
- Testing Distance**: 10~12km @SM
- VFL Connector: 2.5mm Universal Connector
- VFL Wavelength: 650 ±20nm
- Operation Mode: CW and 2Hz Glint
Network Line Sequence Function
- Applicable Network: UTP and STP Network Cable
- Cable Interface: RJ45 (8P8C)
- Test Type: Network Cable Sequence
- Testing Distance: 600m
Audio Hunt Function
- Hunting Mode: Analogue and Digital
- Detection Frequency: 455kHz
- Detection Distance: 600m
Line Pressing Function
- Crimp Detection: RJ45 8-Pin >10cm
General Functions
- Illumination: 1× LED
- Auto Power-Off: Yes (after no operation for 10 minutes)
- Battery Level Indicator: Yes
- Charging Socket: USB Type-C
- Charging Time: <3hours
- Working Time: >30hours (OPM only)
- Power Source: Li-ion 3.7V 450mAh
- Operating Temperature: -10~50°C
- Operating Humidity: <90% RH
- Size: 114 × 65 × 29mm
- Weight: 120g
Receiver SPECIFICATIONS and Functions
- Power Switch: Knob Operation
- Function Selection: 3× Silicone Buttons
- Response Frequency: 455kHz
- Volume: ≥85dB
- Receiver Signal: Analogue and Digital
- Speaker Audio (Analogue): 633Hz, 833Hz
- Speaker Audio (Digital): 833Hz, 1500Hz
- Sensitivity Adjustment: Knob Control
- Test Interface: 1× RJ45
- Line Sequence Indicator: 9× LEDs
- Status Indicator: 3× LEDs
Non-Contact Electricity Test Function
- Non-Contact Voltage Detection: AC 90~1000V
- Indicator Light: 1× LED Ring
- Speaker Audio: 1500Hz
LED Light Functions
- Illumination: 1× LED
- Headset Jack: Φ3.5mm
- Charging Socket: USB Type-C
- Power Source: Li-ion 3.7V 450mAh
- Working Current: ≤250mA
- Size: 180 × 45 × 26mm
- Weight: 100g
*At 23°C ±2°C, 40%~60%RH with Standard Testing Fibre.
Accuracy Range: +3dBm~-60dBm, Other References Are As Follows:
±0.8dB: +3dBm~+6dBm, -60dBm~-65dBm @1550nm
±3.0dB: +6dBm~+10dBm, -65dBm~-70dBm @1550nm
**Test Distance Will Be Influenced By Environmental Conditions and Visual Sensitivity.
Shipping Dimensions
- Length: 23 cm
- Width: 15 cm
- Height: 6.5 cm
- Weight: 0.45 kg
