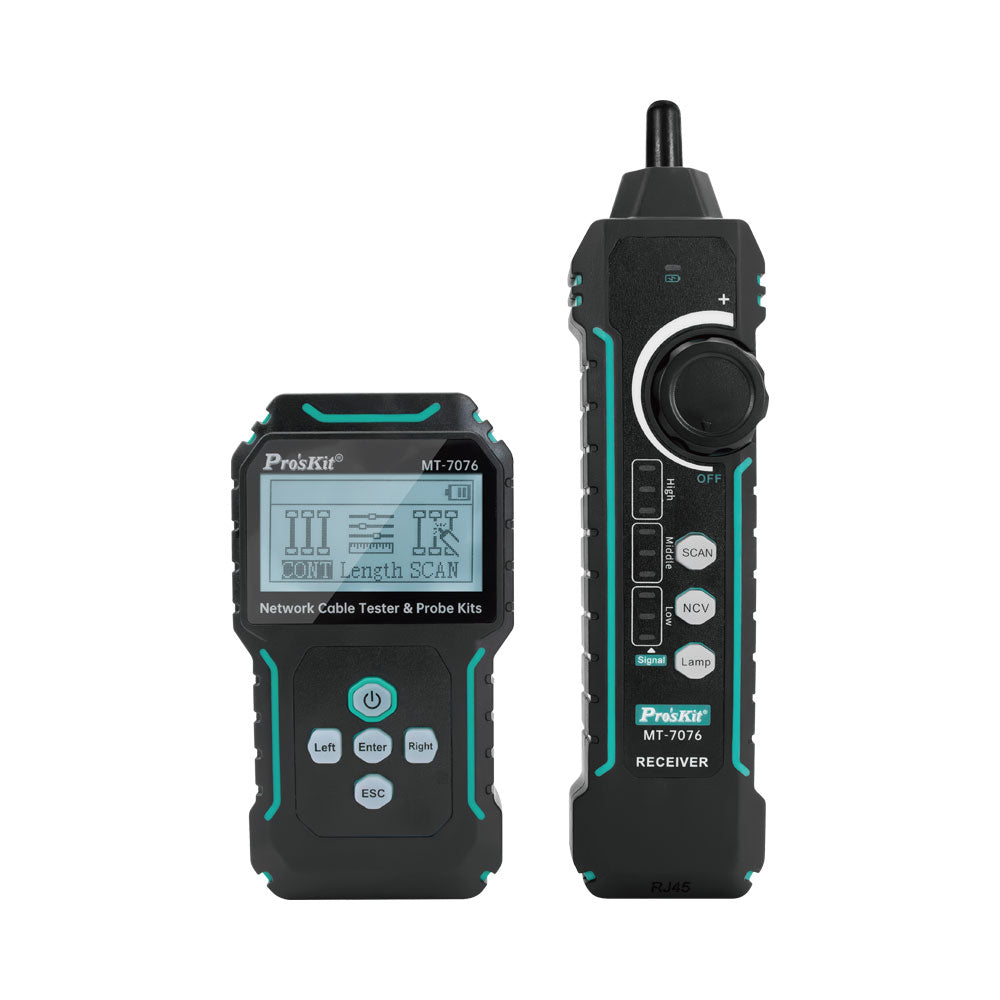

PROSKIT LCD NETWORK CABLE TESTER & PROBE KIT

Features

• Analogue and Digital Dual Mode - Supports flexible cable testing across different signal types
• Rechargeable Li-ion Battery - Convenient USB Type-C charging for modern workflows
• PoE Switch and Port Flashing - Identifies active PoE ports and connected switch ports quickly
• NCV Detection - Non-contact voltage detection for added safety during testing
• Crimp Test Function - Verifies correct cable termination and crimp quality
• DC 60V Protection Design - Protects the tester against accidental over-voltage exposure

Specifications

• Display: LCD
• Signal Mode: Analogue and Digital
• Tracing Frequency: 455KHz
• Cable Tracing in Working Network: Yes
• BNC Cable Tracing: No (can be used with alligator clip)
• Scan Range: ≤600m
• Cable Map Display: R and M, 1-8 and G (LCD)
• Cable Map Max Range: 300m
• Cable Length Test Cable Type: CAT5, CAT5e, CAT6
• Cable Length Test Range: 2.5m~200m
• RJ45 Connector Testing: Yes
• PoE Power Supply Mode: End Span, Mid Span, 8-Pins
• PoE Standard Type and Voltage: IEEE 802.3af/at, non-standard voltage values
• Port Flash: 1 time per 3 seconds
• Link Test: 10/100/1000 Mbps, FDX/HDX, Auto-Negotiation and No Auto-Negotiation
• Wire Continuity Ω: No
• Telephone Line Polarity (POL +/-): No
• Flashlight: Yes
• Non-Contact Voltage Detection (NCV): Yes
• Input Protection: DC 60V
• Transmitter Battery: 3.7V 1400mAh Li-ion
• Receiver Battery: 3.7V 1400mAh Li-ion
• Charging Type: USB Type-C
• Duration of Tracing: >10 hours
• Transmitter Dimensions: 125 × 70 × 32mm
• Receiver Dimensions: 198 × 50 × 28mm
• Identification: CE
• RoHS Compliant: Yes
• Storage Bag Included: Yes

Shipping Dimensions

• Length: 27.2 cm
• Width: 16.5 cm
• Height: 4.5 cm
• Weight: 0.63 kg
