Description

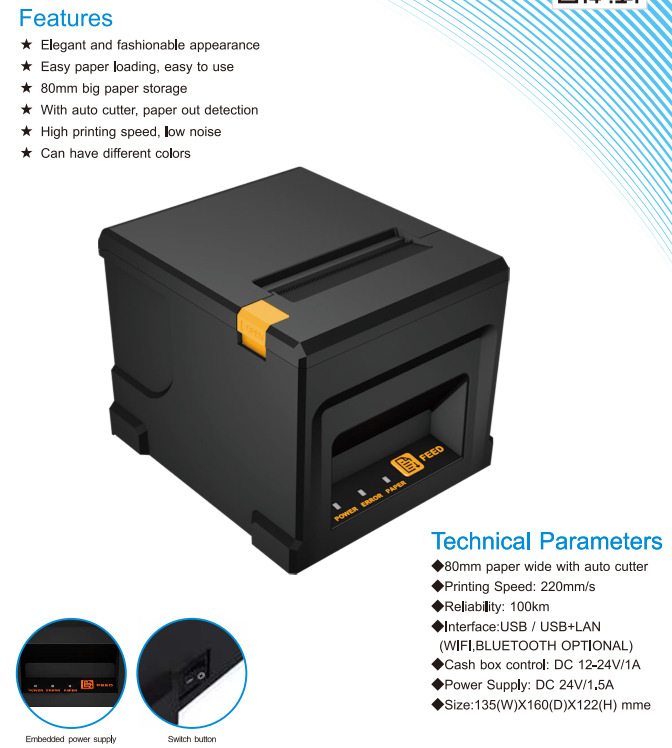

Features
- Elegant and fashionable appearance
- Easy paper loading, easy to use
- 80mm big paper storage
- With auto cutter, paper out detection
- High printing speed, low noise
- Can have different colors
Technical Parameters
- 80mm paper wide with auto cutter
- Printing Speed: 220mm/s
- Reliability: 100km
- Interface: USB / USB+LAN (WIFI, BLUETOOTH OPTIONAL)
- Cash box control: DC 12-24V/1A
- Power Supply: DC 24V/1.5A
- Size: 135(W) X 160(D) X 122(H) mm
Specifications
| Parameter | Value |
|---|---|
| Print Method | Direct Line Thermal |
| Interfaces | USB / LAN / Bluetooth (optional) |
| Print Command | ESC / POS command |
| Print Speed | 220mm/s |
| Resolution | 203DPI (8dot/mm) |
| TPH Reliability | 100km |
| Auto Cutter | Partial |
| Cutter Life | 1.5 million cuts |
| Logo | Support downloading and printing logo |
| Line Spacing | 3.75mm (Adjustable by commands) |
| Input Buffer | 2048K bytes |
| NV Flash | 256K bytes |
| Driver | Win2003 / WinXP / Win7 / Win8 / Win10 / Linux; Support iOS / Android |
| Power | Input: AC 110V/220V, 50~60Hz; Output: DC 24V/2.5A |
Paper
| Parameter | Value |
|---|---|
| Paper Types | Thermal Roll Paper |
| Paper Width | 79.5 ± 0.5mm / ⌀ 80mm |
| Print Width | 72mm |
| Paper Thickness | 0.06–0.08mm |
Package
| Parameter | Value |
|---|---|
| Printer Dimension | 16 × 13.5 × 12.15 CM |
| Printer N.W. | 0.72 kg |
| Package | 1pc with accessories/Box, 12 boxes/CTN |
| Accessories | Manual, USB Cable, Power Adapter, Paper Roll |
| Box Dimension | 19.8 × 18.4 × 13.9 CM |
| Box G.W. | 1.1 kg |
| CTN Dimension | 61.4 × 38.8 × 29.8 CM |
| CTN G.W. | 14 kg |
Environmental Requirements
| Parameter | Value |
|---|---|
| Work Environment | Temperature 0~45°C, Humidity 10~80% |
| Storage Environment | Temperature -10~60°C, Humidity 10~90% |
| Mechanical Noise | Less than 60dB |
