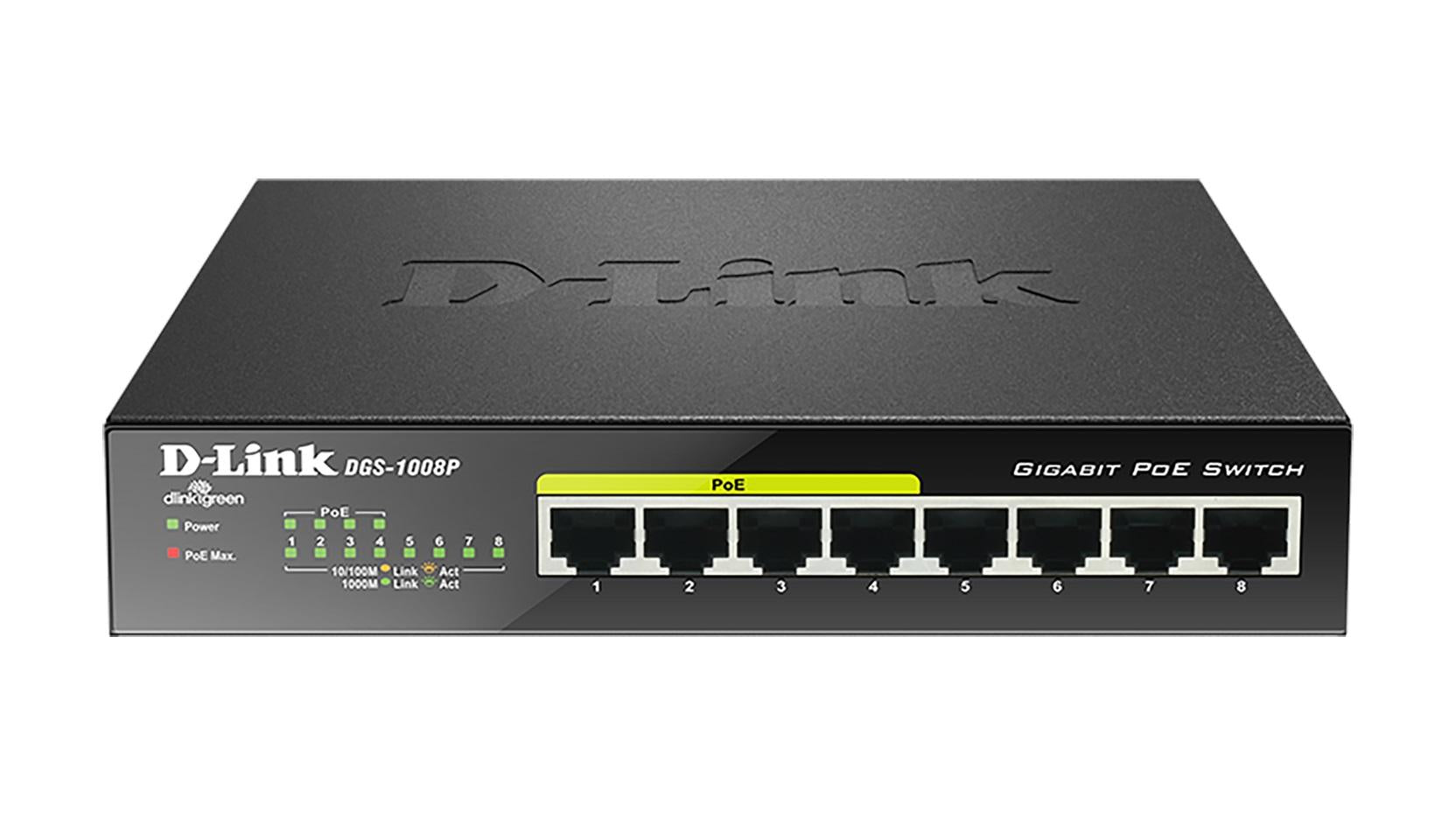

D-Link DGS-1008P 8 Port 10/100/1000 Network Switch
Power over Ethernet
The DGS-1008P features 4 10/100/1000BASE-T ports that support the IEEE 802.3at PoE protocol, supplying up to 30 watts on each PoE port and providing a total power budget of 68 watts. This allows compatible devices to be connected without requiring an additional power supply, saving on cabling and allowing devices to be installed in locations without immediate access to power outlets. When a device is not PoE-compatible, the D-Link DWL-P50 PoE Adapter can turn any regular Ethernet port into a PoE Ethernet port.
High Performance
The DGS-1008P features plug-and-play installation and no configuration is required. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1008P maximizes network performance while minimizing the transmission of bad network packets.
Green Technology
The DGS-1008P features green technology, such as IEEE 802.3az Energy Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces power consumption of the switch when network utilization is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected, and cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Compact and Silent
The DGS-1008P has a compact design, meaning that it can be placed in almost any convenient location. This includes small offices and work spaces where space is at a premium. The desktop form factor provides everything you need to set up a new network, or expand an existing network by connecting it to other switches. The fanless design ensures silent operation, making the switch suitable for office spaces, work floors, and areas which are sensitive to noise, such as meeting rooms. Features
- 8 10/100/1000 Mbps Gigabit Ports
- Auto MDI/MDIX Crossover for all ports
- Store-and-forward Switching Scheme
- Full/half-duplex for Ethernet/Fast
- Ethernet Speeds
- IEEE 802.3x Flow Control
- Plug-and-play Installation
- Built-in D-Link Green Technology
- RoHS Compliant
- IEEE 802.1p QoS (4 Queues, Strict Mode)
- Supports Cable Diagnostics
- Supports 9720 Kbytes Jumbo Frames
- Switching capacity
- 16 Gbps
