4PORT 10/100 POE+2PORT UPLINK - TXE064
Model Name: TXE064
Chipset: IP178G+DH2184
Standards and Protocols: IEEE802.3,IEEE802.3i, IEEE 802.3u,IEEE802.3x,IEEE802.3az, IEEE802.1q, IEEE802.3at, IEEE802.3af
Interface: 6 x 10/100Mbps Auto-Negotiation Ports
Network Media: 10Base-T: UTP category 3, 4, 5 Cable (maximum 100m), 100Base-Tx: UTP category 5, 5e Cable (maximum 100m)
Transfer Method: Store-and-Forward
MAC Address Table: 1K
Switching Capacity: 1.6Gbps
Packet Forwarding Rate: 1.19Mpps
PoE Ports(RJ45): 4 x PoE ports compliant with IEEE802.3at/af
Power Pin Assignment: 1/2(+),3/6(-)
PoE Budget: 60W
Indicators
Per Device: Power
Per Port: Link/Activity
Power Supply AC:100 - 240V/50-60Hz
Power Consumption: Maximum(PoE on): 62W (220V/50Hz)
Dimensions: ( W x D x H ) 200 x 118.4 x 44.3mm
Environment
Operating Temperature: 0--45°
Storage Temperature: -40°-70°
Operating Humidity: 10%-90% non-condensing
Storage humidity: 5%-90% non
Description

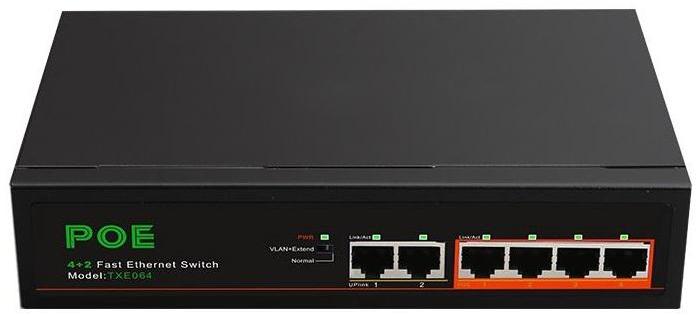

TXE064 is a 6-Ports 10/100Mbps Desktop PoE Switch provides the seamless network connection.
These PoE ports can automatically detect and supply power with those IEEE802.3at compliant Powered Devices (PDs).
In this situation, the electrical power is transmitted along with data in one single Cable.
Allowing you to expand your network where there are no power lines or outlets.
Where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
VLAN isolation to meet security monitoring requirements Support extension technology.
Data transmission and power supply up to 250m.
Independent uplink port can ensure that the port can easily cope with sudden high traffic.
And ensure that the upstream channel is unobstructed.
TXE064 is easy to install and use. It requires no configuration and installation.
With desktop design, outstanding performance and quality.
The 6 Ports10/100Mbps Desktop PoE switch is a great selection for expanding your home or office network.
Features
Comply with IEEE802.3, IEEE802.3i,IEEE 802.3u,IEEE802.3x,IEEE802.3az,IEEE802.1q, Ethernet standards.
Supports IEEE802.3af, IEEE802.3at PoE standards.
Supports PoE power up to 30W for each PoE port, all power up to 60W.
VLAN isolation to meet security monitoring requirements.
Support 6 x10/100Mbps Auto -negotiation RJ45 ports with 4 port PoE function (port1-port4).
Support extension technology, up to 250m transmission distance.
Independent uplink port can ensure that the port can easily cope with sudden.
High traffic, and ensure that the upstream channel is unobstructed.
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for.
Half-Duplex Mode
LED indicators for monitoring Port Link / Activity.
Internal power supply, exquisite design, suitable for desktop use.
