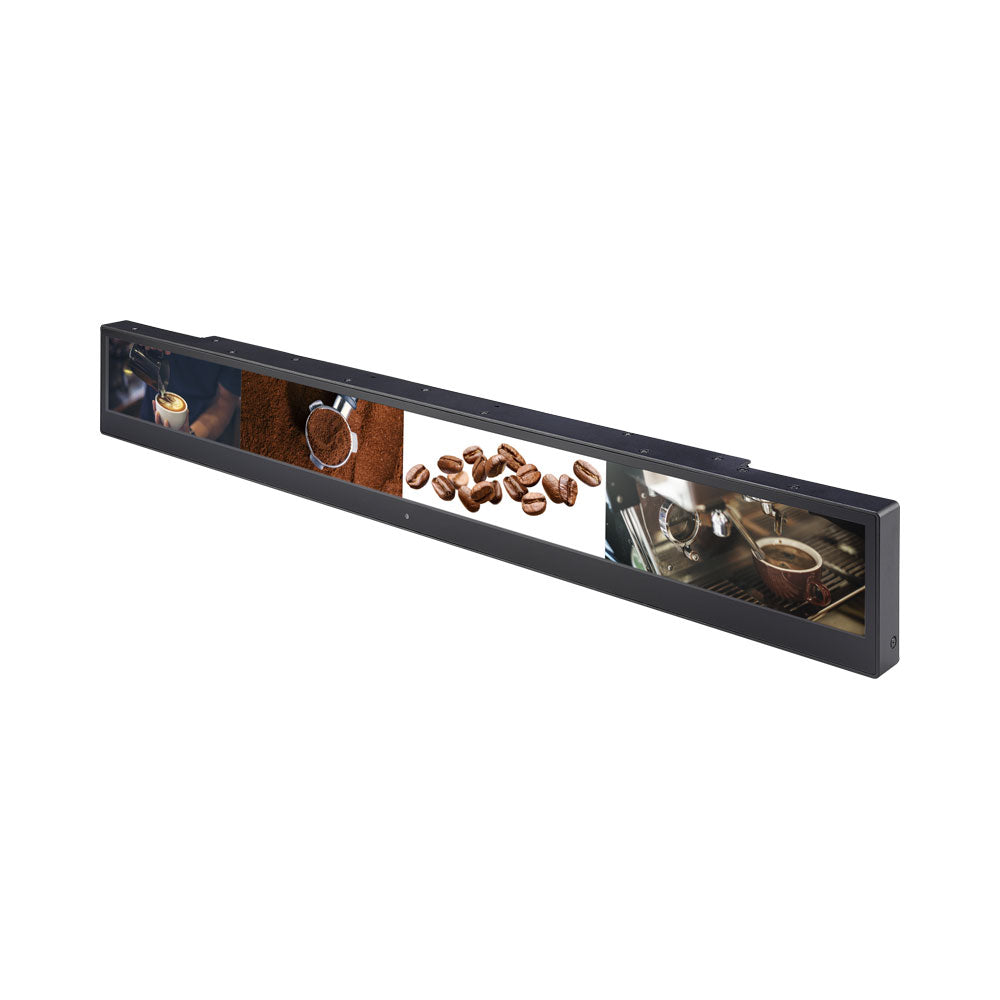

Shuttle D230 Smart Retail Shelf Signage with Face Recognition
For retailers who want to optimize shelf space to increase revenue with the innovative signage installation, the D230 is a perfect choice. The platform utilizes a 23.1’’ ruggedized shelf display combined with facial recognition and to play optimal multimedia contents, providing customer insights, and allowing for content triggering on detected age and gender. It’s available with standalone and server versions. For the server version, it helps you analyze data from viewers and make the precision marketing plans.
Features
- Display: 23.1″ Stretched LCD (1920 × 158 Pixels), ~400 Nits Brightness
- Processor: ARM-Based (Rockchip RK3399) With Integrated GPU
- Operating System: Android (Android 7.x)
- Memory & Storage: 2 GB RAM and 16 GB eMMC Onboard
- Connectivity: Wi-Fi (802.11ac), Ethernet (10/100), Optional LTE Modem
- Camera: Built-In 2 MP Camera Module - Used for Optional Gender/Age Biometric Trigger Content
- Audio: Built-In Speakers + Line-Out Available
- Mounting & Protection: VESA Mounting Support; Front Panel IP54 (Dust/Splash Protection)
- Operation: Fanless, 24/7 Rated for Continuous Commercial Use
Specifications
- Processor: ARM Cortex Hexa-Core 1.8GHz
- Storage Interface: eMMC 16GB
- Dimensions: 603mm × 75mm × 29mm
- Web Cam: 2MP FHD
- Screen: 23.1" LCD (1920 × 158), 400 Nits
- I/O: 1× USB2.0, 1× Micro SD, 1× RJ-45, 1× DC In, 1× Audio Out, 2× ATX 2-Pin, 1× SIM Card Slot (Optional)
- Network: Ethernet: 10/100 Mbps,Wi-Fi: 802.11 a/b/g/n/ac, 4G LTE: M.2 Type (Optional)
- Communication: 1× 2W Speaker
- VESA Mount: 100 × 100mm, 75 × 75mm, 50 × 50mm
- Certification: CB, CE, ETL, FCC, VCCI, RCM, BSM
- Operating Temperature: 0–40°C
- Adapter: 12V / 2A 24W External Adapter, PoE Support (Optional)
- IP Level: Front Panel IP54 Certified
