Shuttle Edge SPCEL12 0.5L PoE Industry PC
Robust 0.5L PoE Industry PC with Intel Celeron Processor

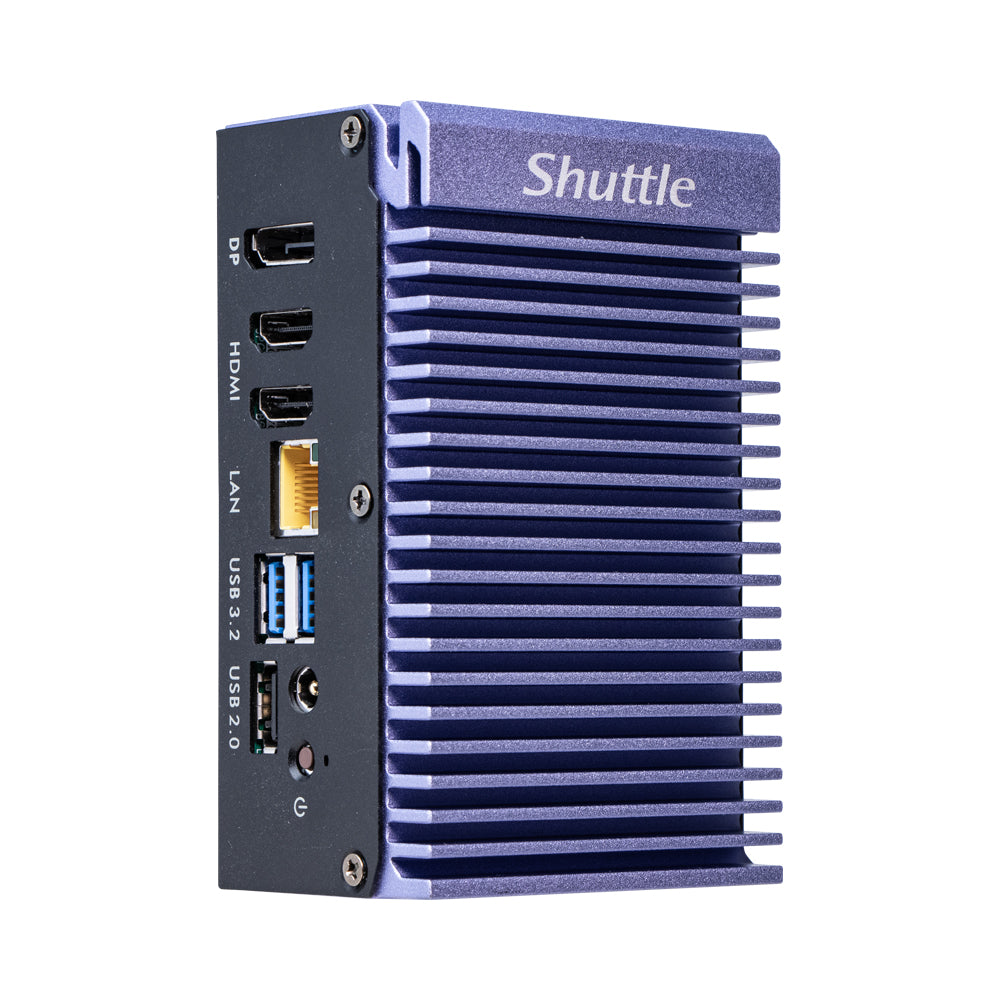

The Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.
*Available DC Powered or PoE Powered
Features
- Ultra-Compact Design - Measuring just 120 × 75 × 51 mm with a 0.5l footprint
- Advanced Motherboard - Features the industry's smallest PICO-ITX (100×72mm) x86 motherboard.
- Stunning Visuals - Enjoy immersive 4K visuals with support for up to three displays via HDMI 2.0b and DisplayPort 1.4 connections.
- Enhanced Multitasking - Supports DDR4-3200 with a maximum capacity of 32GB for efficient multitasking.
- Stable Dual LAN Support - Stay connected with up to 2.5GbE dual LAN support, ensuring reliable network performance.
- Wake-on-LAN (WoL) Functionality - Enable remote powering of your device from S3/S4/S5 mode, enhancing convenience and efficiency.
Specifications
- Dimensions: 120 × 75 × 51mm
- Weight: 1.6kg
- CPU: Intel Celeron J6412 2.60GHz
- RAM: 1× DDR4 Max. 32GB
- Expansion Slot: M.2-2280/2242 M-Key SATA/SSD
- GPU: Intel UHD Graphics
- Video Ports: 2× HDMI2.0 and 1× DisplayPort 1.4
- LAN/Wireless: Dual 2.5Gbe LAN and Wi-Fi 802.11ac
- USB Ports: 2× USB3.2 Gen2 and 1× USB2.0
- I/O: BT5.0 and SIM Card Slot
- Audio: Line-Out and Mic-In
- Power: PoE
- OS Support: Windows 11 64bit or Linux 64bit
