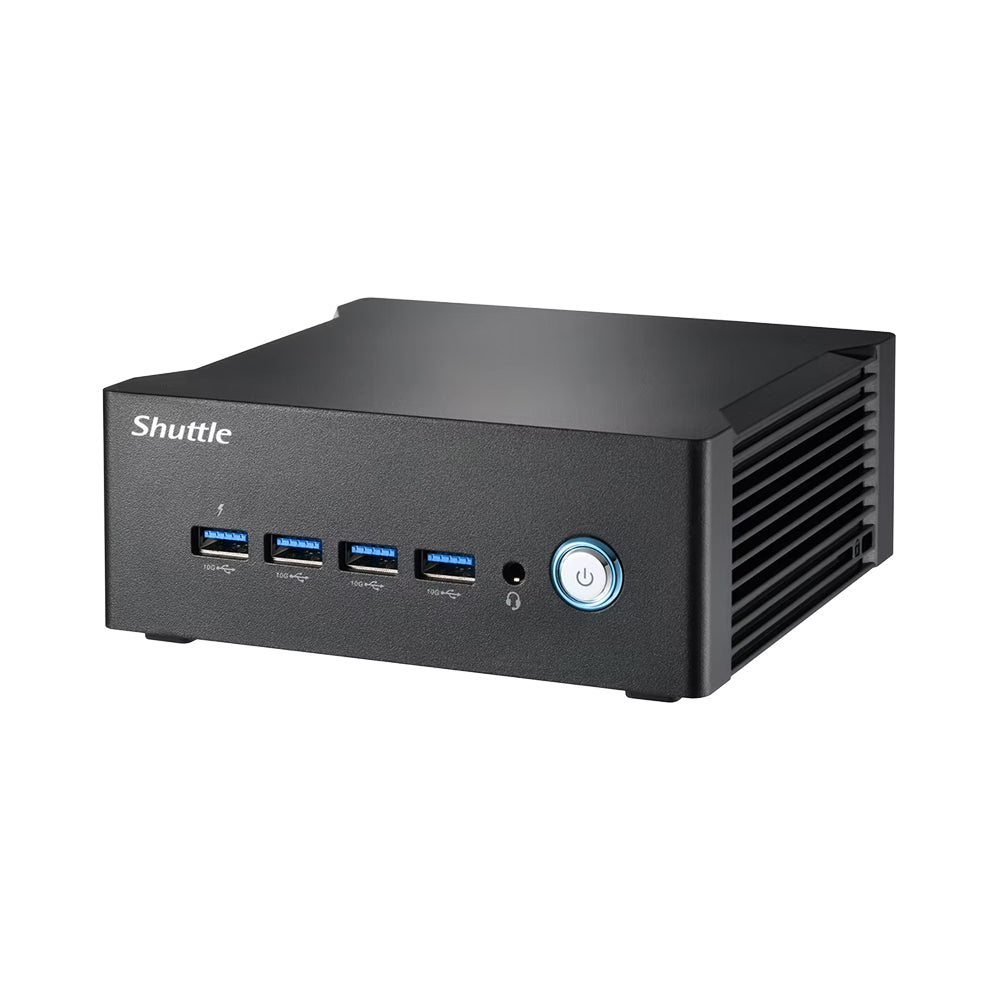

Shuttle XPC Nano NT10H5 Intel Core Ultra 5 125H Nano Barebone AI PC
The Shuttle NT10H5 is a compact Intel Core Ultra mini PC engineered to accelerate everyday AI tasks and deliver powerful performance in a space-saving 1-litre chassis. Built on the latest Intel Core Ultra platform with integrated Intel Arc graphics and an Intel AI Boost NPU, the NT10H5 handles demanding graphical workloads, multimedia editing, and AI-infused applications with ease. It supports up to four independent 4K displays via HDMI and USB-C outputs and offers high-speed connectivity including USB-4, dual 2.5 GbE LAN, and PCIe 4.0 storage expansion, making it ideal for modern content creation, edge computing, industrial, and professional environments. Its robust thermal design and comprehensive I/O make the NT10H5 an adaptable choice for productivity and AI applications in small form-factor setups.
Features
AI-Accelerated Performance
Powered by an Intel Core Ultra 5 125H processor with integrated Intel Arc graphics and Intel AI Boost (NPU), delivering up to ~34 TOPS of combined AI performance for advanced AI tasks, edge computing, and multimedia workflows.
Quad 4K Display Support
Drive up to four independent 4K/60 Hz displays via dual HDMI 2.0b and dual USB4 Type-C ports with DisplayPort 1.4 - ideal for multi-monitor setups, digital signage, and productivity stations.
- High-Speed Connectivity: Includes 2× USB4 (40 Gbps), multiple USB3.2 Gen2 ports, SD card reader, and flexible I/O for peripherals and external devices
- Robust Networking: Dual 2.5 GbE LAN ports for fast wired networking, supporting Wake-on-LAN and PXE boot
- Expandable Memory & Storage: Supports up to 96 GB DDR5-5600 SO-DIMM (two slots) and PCIe Gen4 NVMe SSD storage via an M.2-2280 slot; additional M.2-2230 slot for Wi-Fi/Bluetooth expansion
- Comprehensive I/O & Usability: Includes combo audio jack, Kensington lock, and flexible BIOS functions such as power-on scheduling and resume after power failure
- Mounting & Deployment: Comes with VESA mounting support (75×75 and 100×100 mm) for behind-monitor or space-saving installations
Specifications
- Chassis: Barebone mini PC with black plastic housing; VESA mount included
- Dimensions: 132 × 143 × 55 mm (~1.04 L)
- Weight: ~0.8 kg (net), ~1.7 kg (gross)
- CPU: Intel Core Ultra 5 125H SoC (Meteor Lake-H)
- 4 Performance cores + 8 Efficiency cores + 2 low power Efficiency cores
- Up to 18 threads, 1.2–4.5 GHz, 28 W TDP (configurable)
- Graphics: Intel Arc integrated graphics (7 Xe-cores, up to ~2.2 GHz)
- AI NPU: Intel AI Boost with ~11.5 TOPS (up to ~34 TOPS combined)
- Memory: 2× DDR5-5600 SO-DIMM, up to 96 GB
- Storage: 1× M.2-2280 PCIe Gen4 x4 (NVMe)
- Expansion: 1× M.2-2230 E key for WLAN/BT modules
- Display Outputs:
- 2× HDMI 2.0b
- 2× USB4 Type-C with DisplayPort 1.4
- USB Ports:
- 2× USB4 Type-C (40 Gbps)
- 5× USB3.2 Gen2 (10 Gbps)
- 1× USB2.0
- Networking: Dual 2.5 GbE LAN (Intel i226V)
- Audio: Realtek ALC269-VC3 combo (Line-out / Mic-in); digital audio via HDMI/DP
- Firmware & Features: AMI UEFI BIOS; Wake-on-LAN, RTC power-on, resume after power failure
- Security: TPM 2.0 supported (Infineon SLB9670VQ2.0)
- Operating System Support: Windows 11 64-bit, Linux 64-bit (OS not included)
- Cooling: Heat-pipe system with dual fans for sustained performance
- Power: External 120 W adapter
