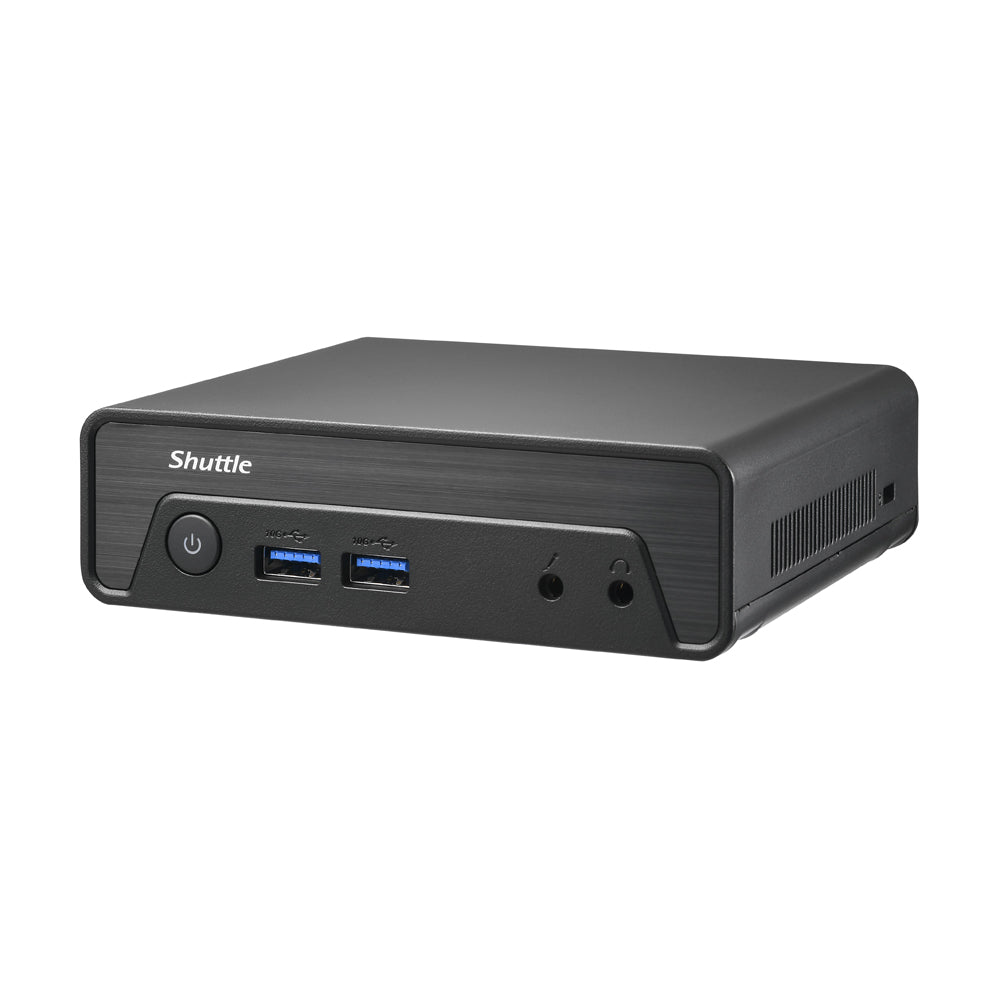

Shuttle XPC nano Barebone NE10N
The Shuttle XPC nano NE10N is a palm-sized mini PC engineered for space-constrained environments without sacrificing performance or connectivity. Powered by efficient Intel Alder Lake-N processors and integrated Intel UHD Graphics, it delivers responsive daily computing and supports dual independent 4K displays for crisp visuals and enhanced productivity - perfect for business, office, retail, and digital signage applications.
Features
- Compact Design - Ultra-compact XPC nano form factor designed for space-constrained environments. Ideal for offices, kiosks, POS systems, and digital signage
- Efficient Performance - Powered by Intel processors with integrated Intel graphics, delivering reliable performance for everyday business and multimedia workloads
- Multi-Display Support - Supports up to three independent displays with HDMI, DisplayPort, and USB-C video output, including 4K resolution at 60Hz
- Flexible Expandability - Supports DDR4 memory, 2.5" storage, and multiple M.2 slots for SSDs and optional wireless connectivity
- Business-Ready Connectivity - Equipped with multiple USB ports, Gigabit LAN, audio ports, and optional WLAN for seamless integration into professional environments
- Reliable Cooling - Smart Fan cooling system ensures stable and quiet operation for continuous use
- Easy Installation - Includes VESA mount and stand brackets for flexible mounting behind monitors or on walls
Specifications
- Cooling System: Smart Fan
- Processor: Intel Celeron 7305 or Intel Core i3-1215U / i5-1235U / i7-1255U
- Graphics: Intel Iris Xe Graphics
- Maximum Display Resolution:
- HDMI: 4096 × 2160 @ 60Hz
- DisplayPort: 4096 × 2160 @ 60Hz
- Display Output: Supports up to 3 independent displays
- Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1
- Memory: 2× DDR4 3200 / 2933 / 2666 MHz, up to 64GB
- Storage: 1× 2.5" HDD / SSD (maximum height 15mm)
- Expansion Slots:
- 2× M.2 2280 (M Key)
- 1× M.2 2230 (E Key)
- Video Outputs:
- HDMI: 1×
- DisplayPort: 1×
- USB Type-C: 1×
- I/O Ports:
- USB3.2 Gen1 / Gen2 (Front): 3× (including Type-C)
- USB3.2 Gen1 / Gen2 (Rear): Yes
- USB2.0 (Front / Rear): No
- COM Port: No
- Audio (Line-out / Mic-in): Yes
- Network:
- LAN: Intel Gigabit LAN
- WLAN: Optional
- Mounting: VESA mount bracket included
- Stand: Bracket included
- Dimensions (L × W × H): 142 × 142 × 42 mm
- Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI
- Operating Temperature: 0 to 50°C
- Chassis: Plastic
- Power Supply:
- Power Input: 19V DC
- Bundled Adapter: 19V / 3.42A, 65W external adapter
- Operating System Support: Windows 10 / 11 64-bit, Linux
