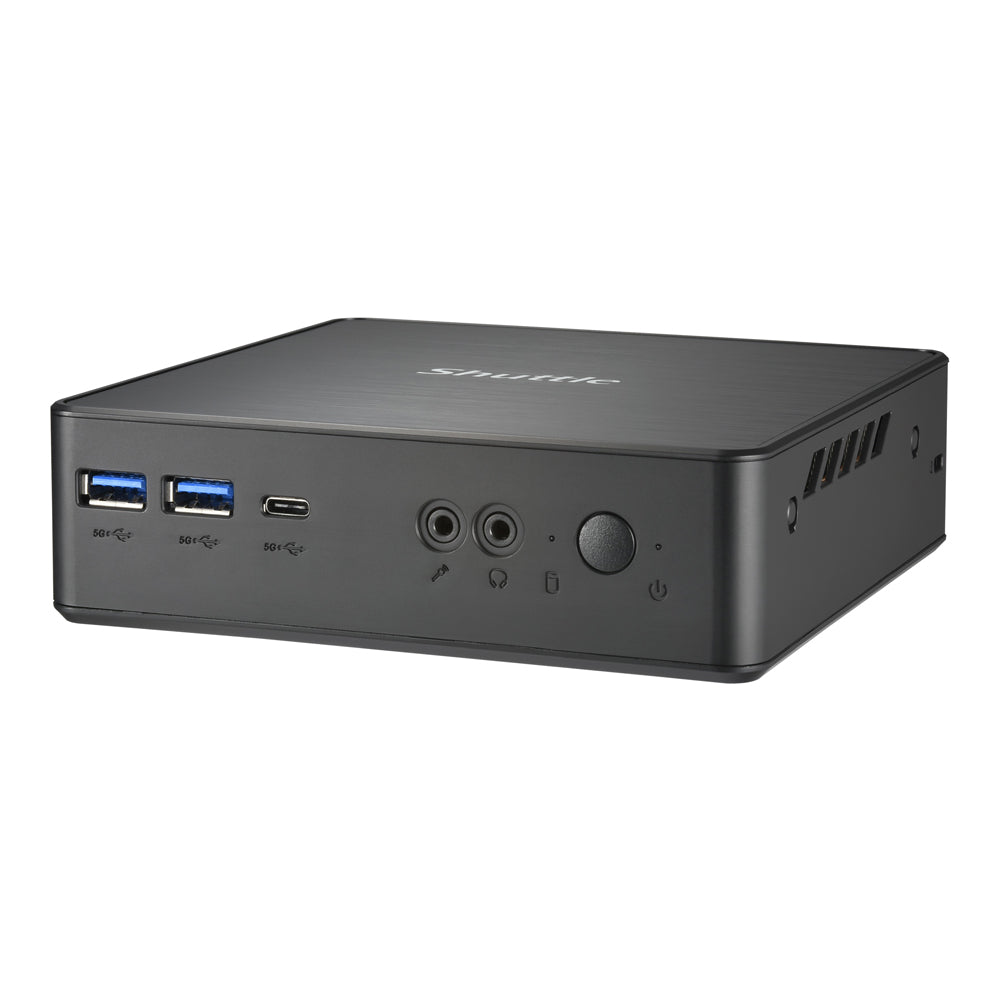

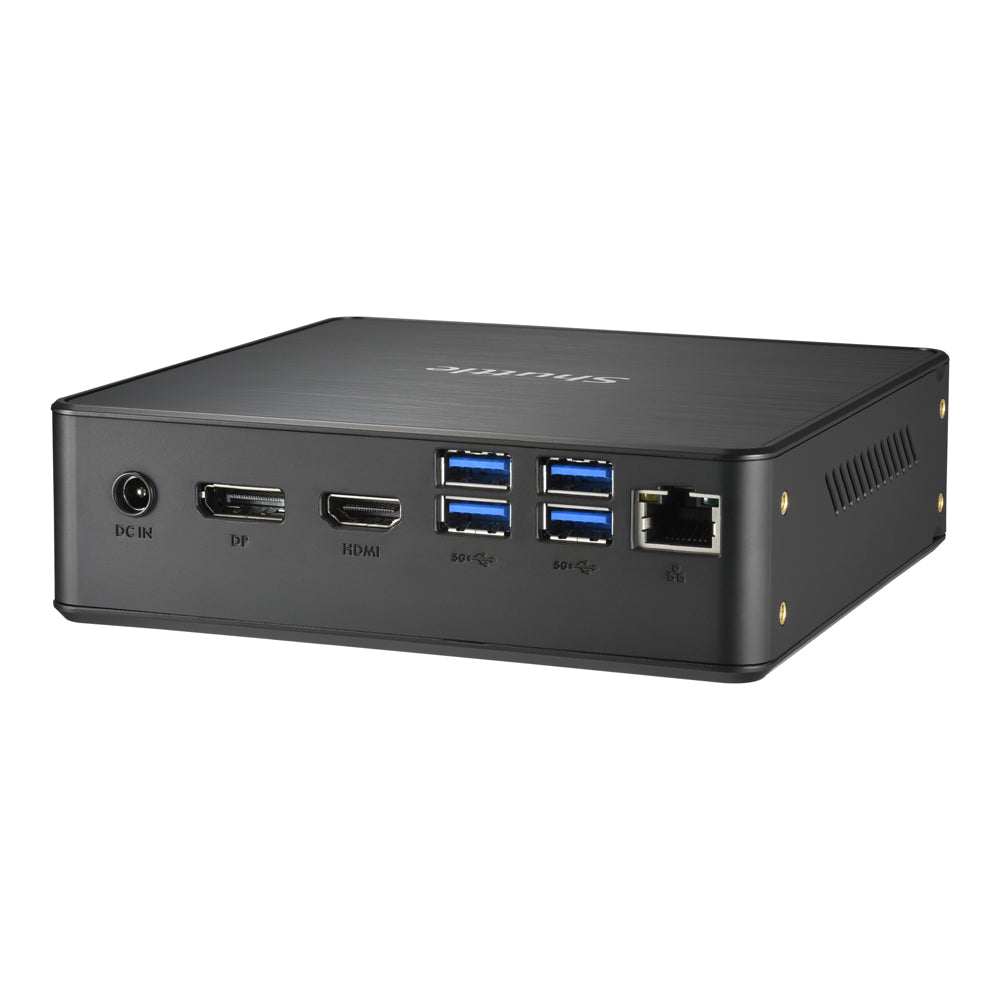

Shuttle NC50N XPC Nano Intel N150 VESA Mount Barebone NUC PC
Compact Business Computing with Flexible Storage and Dual 4K Display Support.
The Shuttle NC50N XPC Nano is a compact barebone PC designed for digital signage, point-of-sale, office, control and multimedia applications. Powered by an efficient Intel N150 quad-core processor, it supports up to 16GB DDR5 memory and two independent 4K @60Hz displays through HDMI 2.0b and DisplayPort 1.4a. Flexible storage options include two M.2 NVMe SSD slots and a 2.5" SATA drive bay, while six USB Type-A ports, USB Type-C and 2.5GbE LAN provide extensive connectivity. The included 75mm and 100mm VESA mounting system allows the 0.85L chassis to be installed discreetly behind a compatible display.
Features
- Intel N150 Processor - Quad-core performance with speeds up to 3.6GHz for everyday commercial computing
- Compact 0.85L Design - Fits neatly into space-constrained offices, counters and digital signage installations
- Dual 4K Display Support - Drives two independent displays at up to 3840 × 2160 @60Hz
- Flexible VESA Mounting - Includes mounting hardware for compatible 75 × 75mm and 100 × 100mm displays
- DDR5 Memory Support - Accepts up to 16GB DDR5-4800 SO-DIMM memory
- Dual NVMe Storage - Supports two M.2-2280 PCIe Gen3 ×2 NVMe SSDs
- Additional SATA Storage - Accommodates one 2.5" SATA HDD or SSD up to 15mm thick
- 2.5GbE Networking - Provides fast wired connectivity through an Intel I226LM controller
- Seven USB Ports - Connects multiple peripherals through six USB Type-A ports and one USB Type-C port
- Optional Wireless Expansion - M.2-2230E slot and pre-installed internal antennas support a compatible WLAN module
- Always-On Mode - Hardware jumper enables automatic start-up whenever power is applied
- Wake-on-LAN Support - Allows compatible network-based remote start-up and management
- Kensington Lock Support - Provides a security slot for compatible locking equipment
Specifications
- Processor: Intel N150
- Processor Architecture: Twin Lake-N
- Processor Cores and Threads: 4 Cores, 4 Threads
- Maximum Processor Frequency: 3.6GHz
- Processor Cache: 6MB
- Processor TDP: 6W
- Integrated Graphics: Intel Graphics
- Maximum Graphics Frequency: 1.0GHz
- Display Support: up to 2× Independent 4K Displays
- Maximum Display Resolution: 3840 × 2160 @60Hz
- HDMI Output: 1× HDMI 2.0b
- DisplayPort Output: 1× DisplayPort 1.4a
- Memory Slots: 1× 262-Pin SO-DIMM
- Memory Type: DDR5-4800, 1.1V
- Maximum Memory Capacity: 16GB
- M.2 Storage Slots: 2× M.2-2280 M-Key
- M.2 Storage Interface: PCIe Gen3 ×2 NVMe
- Drive Bay: 1× 2.5" SATA HDD or SSD
- Maximum Drive Thickness: 15mm
- Wireless Expansion Slot: 1× M.2-2230E
- Internal Wireless Antennas: 2× Pre-Installed (Requires Optional WLAN Module)

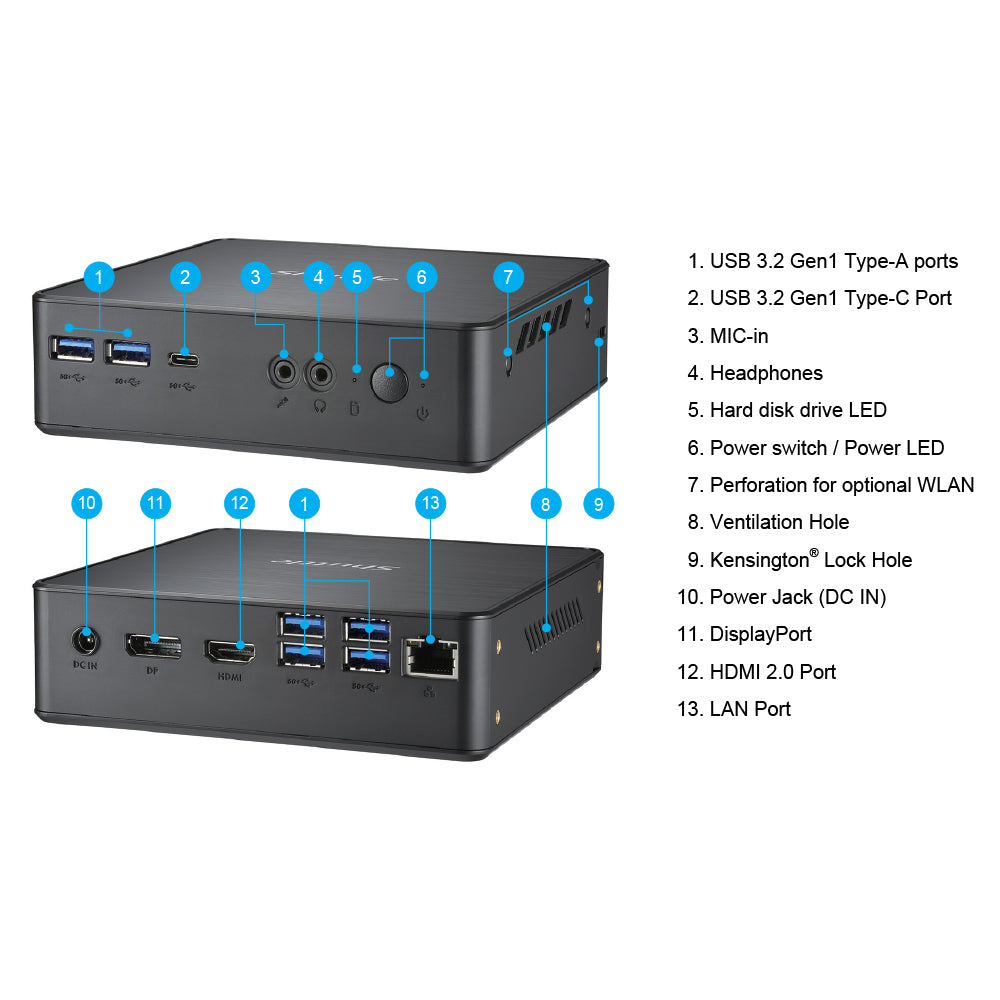

- Front USB Ports: 2× USB3.2 Gen1 Type-A And 1× USB3.2 Gen1 Type-C
- Rear USB Ports: 4× USB3.2 Gen1 Type-A
- Total USB Ports: 7×
- USB Data Rate: up uo 5Gbps
- Network Interface: 1× RJ45 2.5GbE LAN
- Ethernet Controller: Intel I226LM
- Supported Network Speeds: 100Mbps, 1Gbps and 2.5Gbps
- Audio Codec: C-Media CM6542
- Audio Connections: 1× 3.5mm Microphone Input and 1× 3.5mm Headphone Output
- Digital Audio Output: HDMI and DisplayPort
- Security: Kensington Lock Slot and Firmware TPM2.0
- BIOS Features: Wake-on-LAN, PXE, RTC Alarm, Watchdog and Resume After Power Failure
- Cooling: Temperature-Controlled CPU Cooling Fan
- Power Supply: External 65W Power Adapter
- Power Adapter Input: AC100~240V, 50/60Hz
- Power Adapter Output: DC19V 3.42A
- VESA Compatibility: 75 × 75mm and 100 × 100mm
- Housing Material: Plastic
- Colour: Black
- Dimensions: 142 × 142 × 42mm
- Chassis Volume: Approximately 0.85L
- Net Weight: 0.4kg
- Operating Temperature: 0~40°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Supported Operating Systems: Windows 11 64-Bit and Linux 64-Bit
- Certifications and Compliance: CE, UKCA, FCC, BSMI, RCM, VCCI, CB, cTUVus, RoHS, Energy Star and ErP
Notes
- The front USB Type-C port supports data transfer only and does not support DisplayPort video output
- Both M.2-2280 storage slots support NVMe drives only and do not support M.2 SATA SSDs
