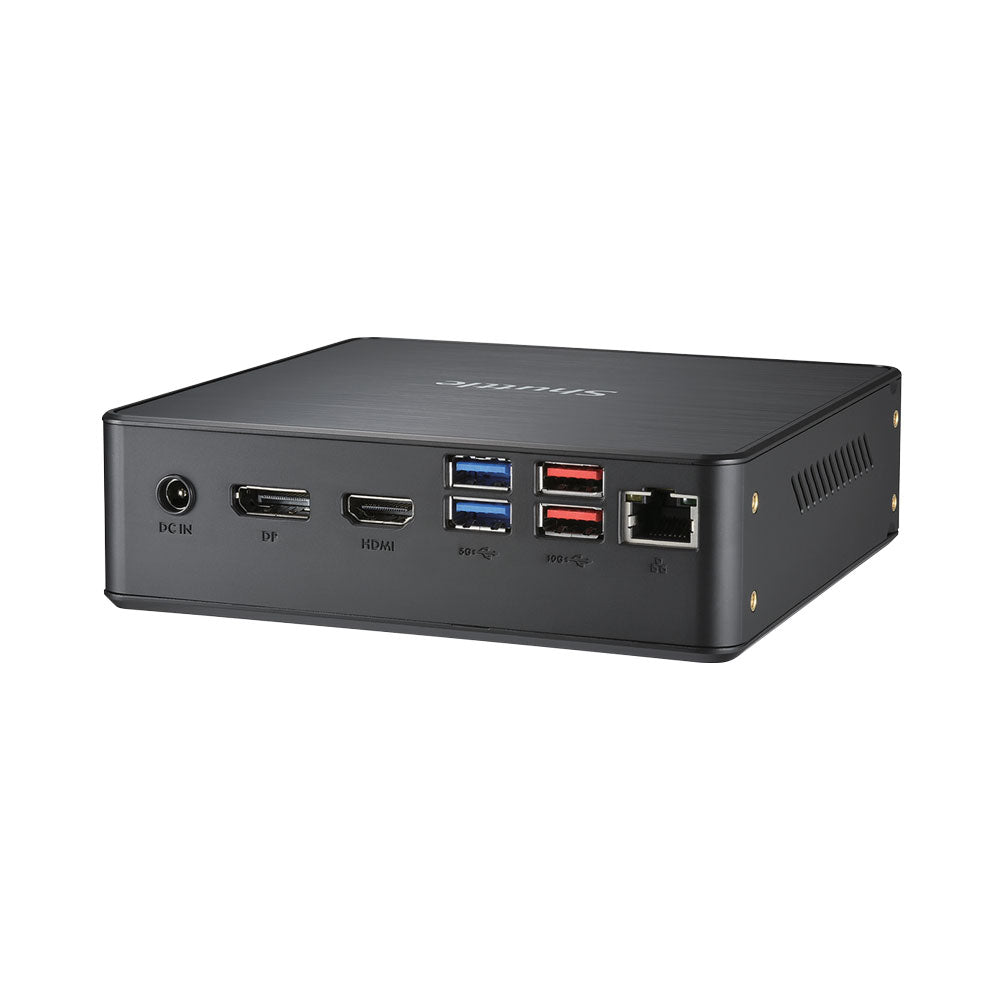

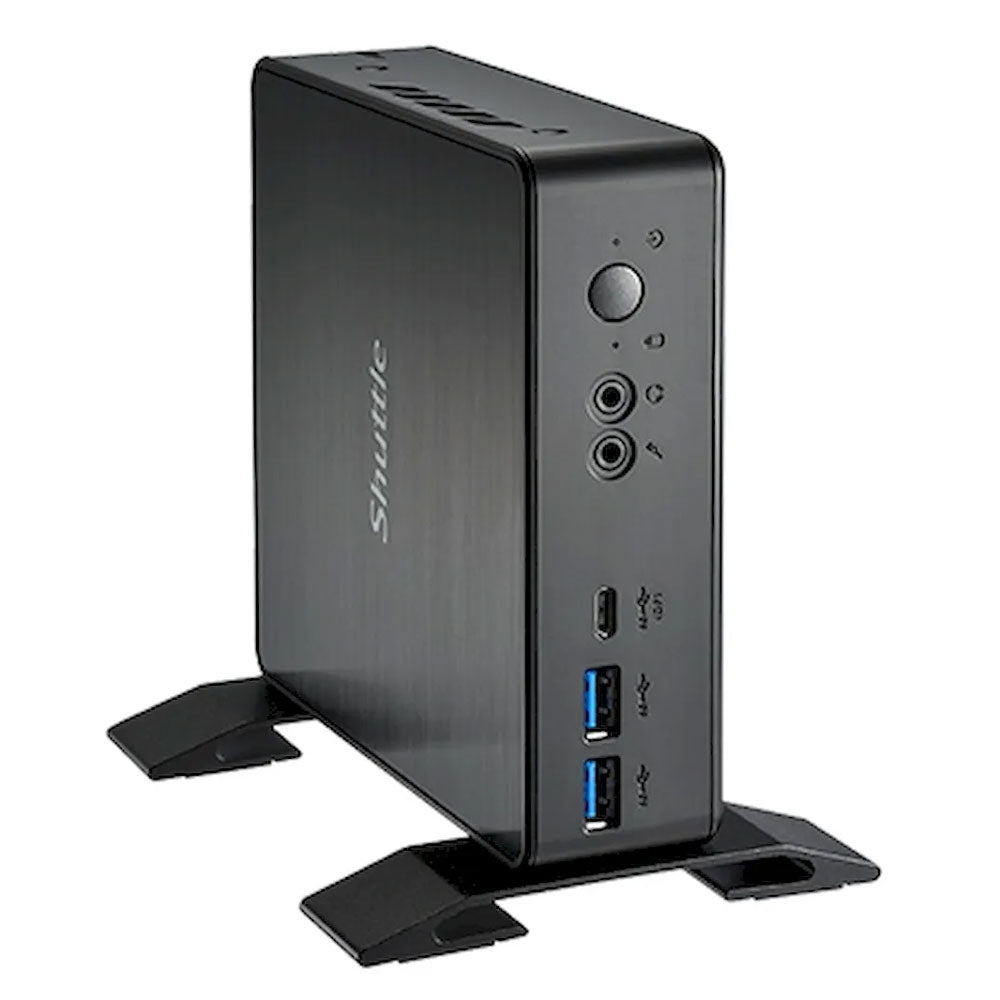

Shuttle XPC Nano NC40U Palm-Sized Barebone NUC PC - Intel i7
Multi-Tasking and Superior Performance for Your Business Needs
Shuttle’s XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multi-tasking and parallelism and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85l palm-size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os such as USB3.2 Gen2, USB3.2 Gen1 and Intel Gigabit LAN, supporting triple display by the HDMI, DisplayPort and Type-C that increase the functionality to adapt to various business computing to suit digital signage, kiosk, edge computing and video conferencing.
Features
- Intel UHD Graphics for 12th Gen Intel Processors
- Up to 64GB of DDR4 SO-DIMM memory
- 2× NVMe (RAID support), 1× SATA 2.5"
- 1× HDMI 2.0b, 1× DisplayPort 1.4a
- 2× M.2-2280, 1× M.2-2230
- Gigabit Ethernet
- 2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C
- Always-On Jumper
- Wall/VESA Mount Included
Specifications
- Cooling System: Smart Fan
- Processor: Intel Celeron 7305 or Intel i3-1215U / i5-1235U / i7-1255U
- Graphics: Intel Iris Xe Graphics
- Display Resolution Max.:
- HDMI: 4096 × 2160 @60Hz
- DisplayPort: 4096 × 2160 @60Hz
- Display Output: 3× Independent Displays
- Video Decoder: WMV9, AVC / H.264, JPEG / MPEG, HEVC / H.265, VP9, AV1
- Memory: 2× DDR4 3200/2933/2666 MHz, Max. 64GB
- Storage: 1× 2.5" HDD/SSD (max. 15 mm)
- Expansion Slot:
- 2× M.2 2280, M Key
- 1× M.2 2230, E Key
- Video Output:
- HDMI Port: 1×
- DisplayPort: 1×
- Type-C: 1×
- I/O Port:
- USB3.2 Gen1/Gen2 (Front): 3× (Includes Type-C)
- USB2.0 (Front): No
- USB3.2 Gen1/Gen2 (Rear): Yes
- USB2.0 (Rear): No
- COM Port: No
- Line out / Mic in: Yes
- Operating System: Windows 10 / 11 64bit, Linux
Network
- LAN: Intel Gigabit LAN
- WLAN: Optional
- VESA Mount: Bracket included
- Stand: Bracket included
- Dimension (L × W × H): 142 × 142 × 42mm
- Certification: CB, CE, BSMI, cTUVus, FCC, RCM, RoHS, VCCI
- Operating Temperature: 0~50°C
- Chassis: Plastic
Power Supply
- Power Input: 19V DC
- Bundled Adapter: 19V / 3.42A 65W External Adapter
