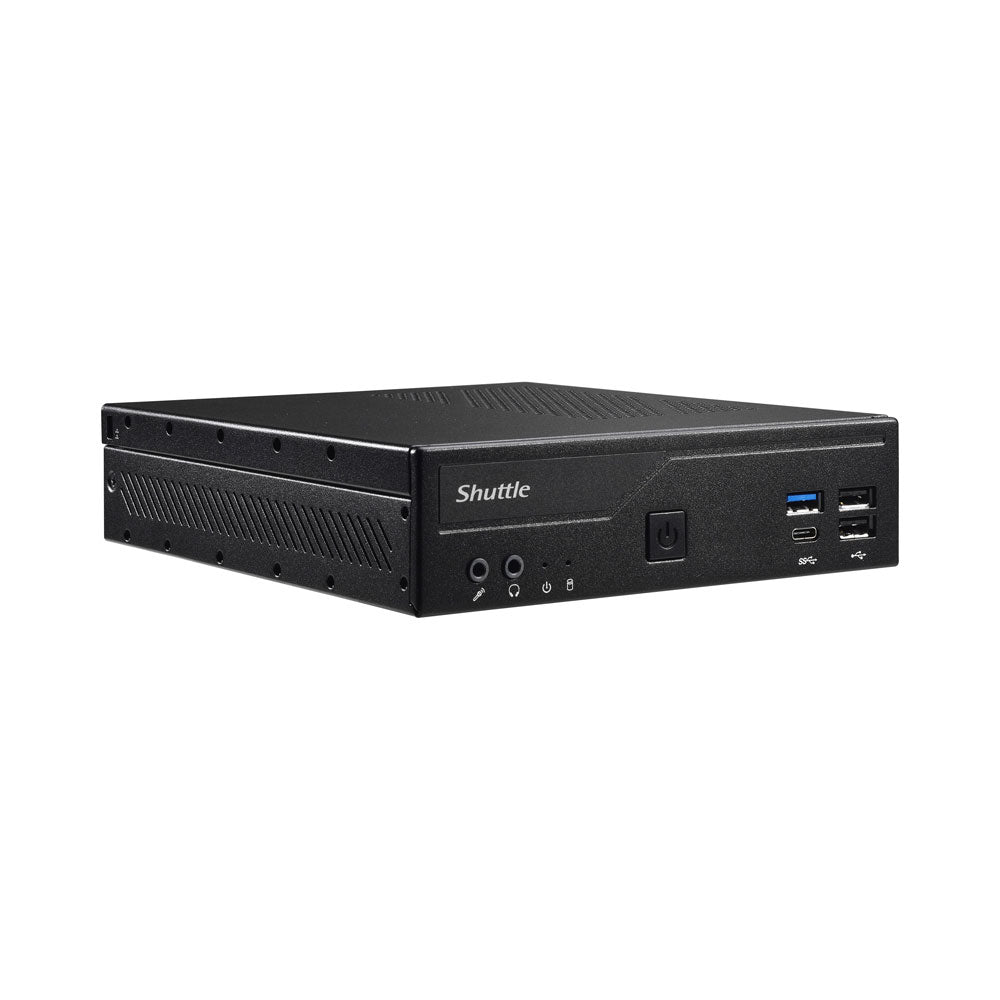

Shuttle XPC Slim DH610 Robust 1.3-Litre Barebone PC Supporting Intel Core Gen. 12/13 Processors and Triple UHD Displays
The Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th/13th generation Core desktop processors for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1× HDMI2.0 and 2× DisplayPort 1.4a. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50°C.
Features
- For 12/13th Gen Intel Core CPUs (LGA1700)
- Up to 64GB DDR4 SO-DIMM
- Two RJ45 network ports (1× 2.5 Gbit, 1× 1 Gbit)
- 1× M.2-2280, 1× M.2-2230
- 3× USB3.2 (5 Gbit), 1× USB3.2 Type-C (5 Gbit), 4× USB2.0, 2× RS-232
- 1 HDMI2.0b, 2× DisplayPort 1.4a
- Supports three displays
- 1× NVMe SSD, 1× 2.5" drive
- Remote power-on connector
- Only 19 × 16.5 × 4.3cm LBH
- Heatpipe cooling system with dual fans
- VESA/wall mount included
- 24/7 Permanent Operation
Specifications
- Dimensions: 190 × 165 × 43mm
- Weight: 2.05kg
- CPU: Supports Intel 13th and 12th i9, i7, i5, i3, Pentium and Celeron 65W
- RAM: Up to 2× DDR4. Max. 64GB
- Storage: 1× 2.5" Hard Drive Bay, 1× M.2-2280 M-Key and 1× M.2-2230 E-Key
- GPU: Intel UHD Graphics
- Video Ports: Triple Display via 1× HDMI2.0b and 2× DisplayPort Simultaneously
- LAN/Wireless: Gigabit LAN and 2.5Gbe LAN
- USB Ports: 1× Type-C, 3× USB3.2 and 4× USB2.0
- IO: 1× RS232 Only and 1× RS232 / 422 / 485 DB9 Ports
- Audio: Line-Out & Mic-In, Front & Rear
- Kensington: Yes
- Power: 19V 6.32A, 120W AC Adapter
