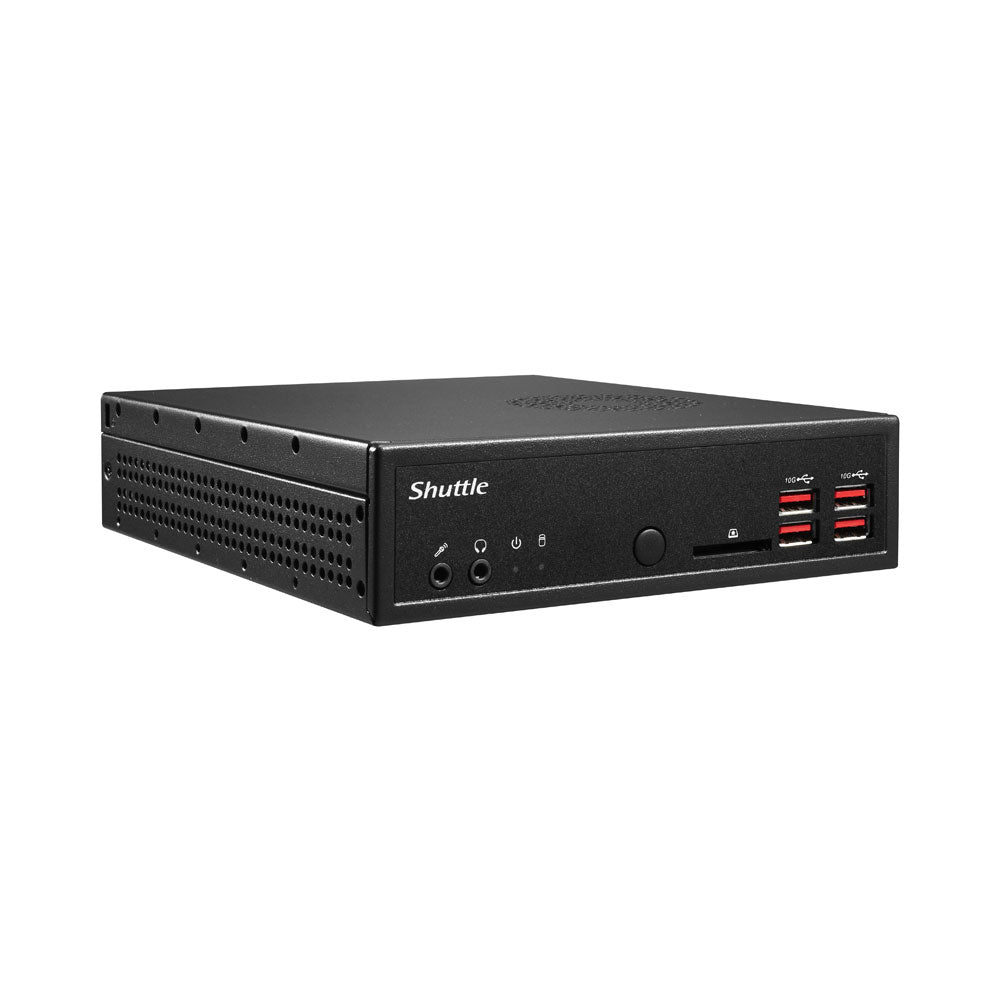

Shuttle DHU32U i5 XPC Slim Industrial Quad Display PC – 2x LAN
This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor “Tiger Lake-U" and supports no less than four Ultra HD displays at 60 Hz frame rate via HDMI2.0b. It’s slim metal chassis with a VESA mount included, versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as Digital Signage, Kiosk, Surveillance, Control Room, Gambling Machines, Healthcare and Industry.
Features
- Slim industrial mini PC with metal chassis and VESA mount support, ideal for digital signage, kiosks, surveillance, control rooms, and healthcare environments
- Supports quad Ultra HD displays via 4× HDMI 2.0b outputs at 60 Hz
- Powered by 11th Gen Intel Tiger Lake-U processors (e.g., Intel Core i5-1135G7)
- Dual Gigabit LAN ports for robust networking
- Up to 64 GB DDR4 memory support via 2× SO-DIMM slots
- Flexible storage with a 2.5″ SATA bay and M.2-2280 slot (plus optional wireless module slot)
- Multiple USB ports including USB3.2 Gen1 and Gen2 for peripherals
- Integrated Intel Iris Xe or UHD Graphics depending on CPU selection
- I/O includes RS-232 and RS-232/422/485 serial ports and audio line-out/mic-in
- Supports operation in ambient temperatures up to ~50 °C for demanding environments
- External 19 V DC / 90 W power adapter included
Specifications
- Dimensions: 190 x 165 x 43mm
- Weight: 2.1kg
- CPU: Supports Intel i7, i5, i3 and Pentium
- RAM: Up to 2x DDR4. Max. 64GB
- Storage: 1x 2.5" hard drive bay, 1x M.2-2280 M-Key
- GPU: i5 and i7 processor supports Intel Xe graphics; Pentium and i3 processor supports Intel UHD graphics
- Video Ports: Quad display via 4x HDMI2.0b simultaneously
- LAN/Wireless: Dual gigabit LAN
- USB Ports: 4x USB3.2 Gen 1 and 4x USB3.2 Gen 2
- IO: 1x RS232 DB9 port and 1x RS232 / 422 / 485 DB9 port
- Audio: Line-out and mic-in
- Kensington: Yes
- Power: 19V 4.74A, 90W AC adapter, extended power connector
