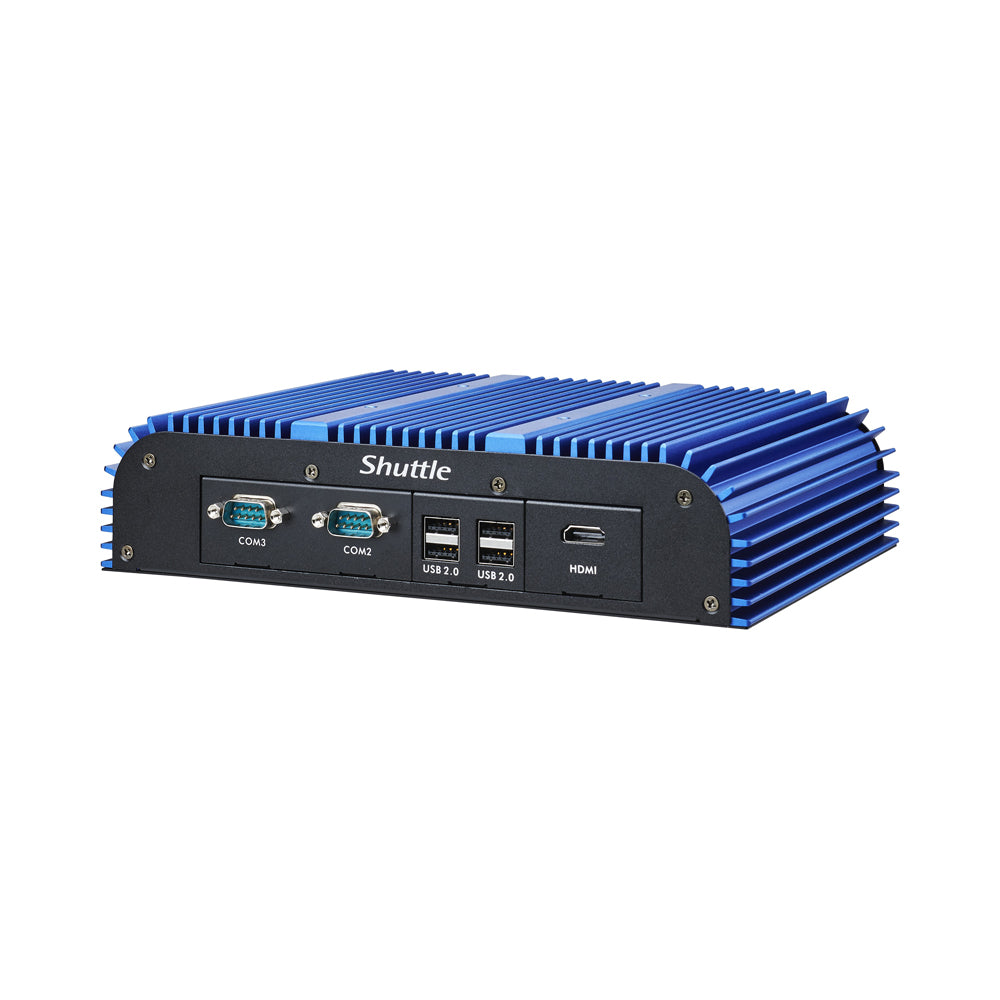

Shuttle BPCAL02 Fanless Box-PC With an Intel Core Processor in a Robust Chassis
Shuttle's BPCAL02 fanless Box-PC Series is fuelled by Intel’s 12th Generation (Alder Lake) Core processors in a ruggedised box designed for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customised requirements in industrial environments.
Features
- Dual 2.5 Gigabit Ethernet
- Mounting Options: VESA, Ear mount and DIN rail
- Fanless cooling system
- 24/7 Operation
- Robust aluminium/steel chassis
- Up to 64GB RAM
Specifications
System
- Processor: 12th Gen. Intel Alder Lake Core
- Optional: i5-1235U, i5-1245UE, i7-1255U, i7-1265UE, Celeron 7305E
- Memory: 2x 262-Pin SODIMM, up to 64GB
- Dual Channel DDR5: 4800MHz
- BIOS: AMI UEFI 64Mbit
Graphics
- Display Interface: 2x HDMI 2.0b: 4096 x 2160 @60Hz
- Display Output Max: 4x Independent or Clone - Configuration Dependent
Audio
- Audio Codec: Realtek ALC888s-VD 2-Channel
Network
- Ethernet: 2x Intel 2.5GB LAN
- WLAN: Intel Wi-Fi Module (802.11 a/b/g/n/ac) and BT 5.0 (Optional)
- Realtek RTL8821CE: 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN Card M.2 2230 E-Key (Optional)
- External Antenna: 2x Dipole (Optional)
I/O Interface
- LAN: 2x RJ45 (10/100/1000Mbps / 2.5GB)
- Supports: Wake-on-LAN
- Serial Ports: 1x RS232 (DB9)
- 2x RS232 / 422 / 485: (DB9) (RS232 with Power Supply: Ring in / 5V (Standard) and 12V (with Specific Optional Board))
- USB: 4x USB3.2 Gen 2 (Type-A)
- USB: 4x USB2.0 (Type-A)
- Audio: 1x Line-Out
- Audio: 1x Mic-In
Power
- Type: 19V (without Wide Range Board)
- Wide Range Board: Motherboard Support 9~36V DC-in
- Adapter: BPCAL02: 19V/4.74A 90W external adapter
Operating System
- OS Support: Windows 10 / 11 IoT 64bit
- Linux: 64bit
Mechanism
- Mounting: VESA Mount 75 x 75
- Ear Mount: 256 x 100mm
- Din Rail Mount: 35mm
- Dimensions (W x H x D): 245 x 57 x 169mm
- Weight: 2.85kg
- Operating Temperature: 0~40°C
- Storage Temperature: -20~80°C
- Relative Humidity: 10~90% RH (Non-Condensing)
- EMC: CE, FCC, VCCI, BSMI
- Safety: cTUVus, CB, CEC, BSMI
