AOPEN DE3650S ACE Mini Compact PC with Intel Celeron N6210 1.2GHz CPU, 4GB DDR4 RAM and 64GB eMMC
Compact Performance. Fanless Reliability. Built to Scale.
The AOPEN DE3650-S ACE Mini is a compact and cost-effective mini PC designed for reliable, long-term deployment in commercial and digital environments. Powered by an Intel Celeron processor with Intel UHD graphics, it delivers efficient performance for signage, kiosks and embedded applications. Its fanless, solid-state design reduces dust build-up and maintenance, ensuring greater durability and uptime in demanding environments. Supporting multiple operating systems including Windows, Chrome OS Flex and Linux, it offers flexible deployment across a wide range of applications. Dual display output via HDMI and mini DisplayPort enables versatile visual setups, while TPM 2.0 enhances system security for business use.
Features
- Intel Celeron N6210 Processor - Efficient dual-core performance for embedded and commercial applications
- Intel UHD Graphics - Smooth visual performance for signage and display solutions
- Fanless Design - Silent operation with reduced dust build-up and lower maintenance requirements
- Dual Display Output - HDMI and mini DisplayPort for flexible multi-screen setups
- Multi-OS Support - Compatible with Windows, Chrome OS Flex and Linux environments
- Compact and Space-Saving - Ultra-small 0.45L form factor ideal for tight installations
- Onboard Memory and Storage - 4GB RAM and 64GB eMMC for reliable everyday performance
- Expandable Storage - Supports M.2 2280 SSD for additional storage flexibility
- TPM 2.0 Security - Enhanced hardware-based security for business environments
- Industrial-Grade Reliability - Designed for 24/7 operation with high durability
Specifications
Cpu And Graphics
- CPU: Intel Celeron N6210 1.20GHz (Dual Core)
- Graphics: Intel UHD Graphics for 10th Gen Processors
Memory
- Onboard Memory: 4GB DDR4
- Expansion Slot: 1× DDR4 SO-DIMM
- Channels: Dual Channel
- Data Rate: 2666 / 3200MHz
- Max. Memory: up to 20GB
Storage
- Onboard Storage: 64GB eMMC
- Expansion: 1× M.2 2280 (M-Key) SATA, 1× M.2 2230
Audio
- Audio Chipset: Realtek HD Audio Codec ALC897
- Channel: Stereo
Network
- LAN: 1× Gigabit Ethernet (10/100/1000Mbps)
Front Panel I/O
- Power Button: 1×
- Audio: 1× Audio Combo Jack
- Other: 1× BIOS Recovery

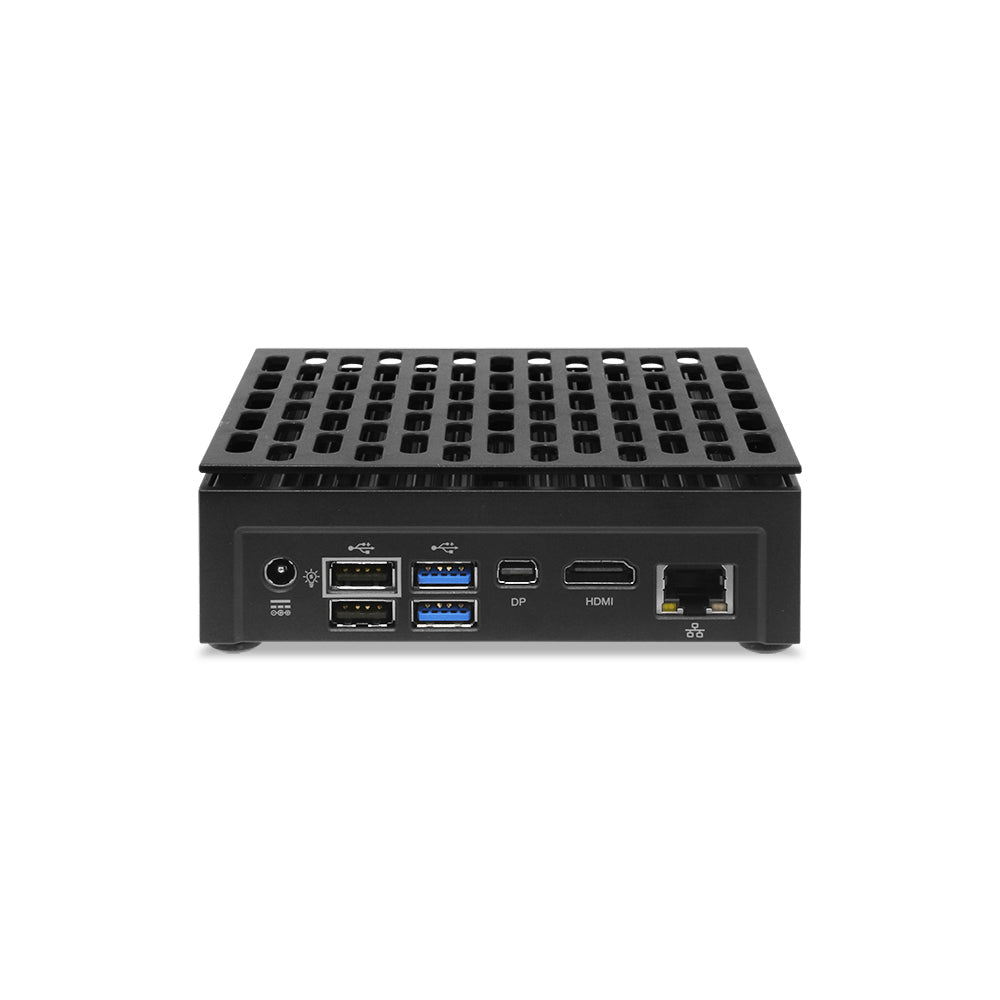

Rear Panel I/O
- HDMI: 1× HDMI 2.0
- DisplayPort: 1× mini DisplayPort
- USB Ports: 4× USB (2× USB2.0, 2× USB3.1)
- LAN: 1× RJ45
- Power Input: 1× DC Input (12~24V)
Control And Security
- Watchdog Timer: 1~255 sec/min
- TPM: 2.0
Power
- Power Supply: 40W Adapter
- Input Voltage: AC 100~240V
Environment
- Operating Temperature: 0~35°C
- Storage Temperature: -30~60°C
- Humidity: 90% RH (Non-Condensing)
- MTBF: 50,000 hours
Physical
- Dimensions: 125 × 35 × 110mm
- Volume: 0.45L
- Colour: Black
Compatibility
- OS Support: Windows, Chrome OS Flex, Linux
