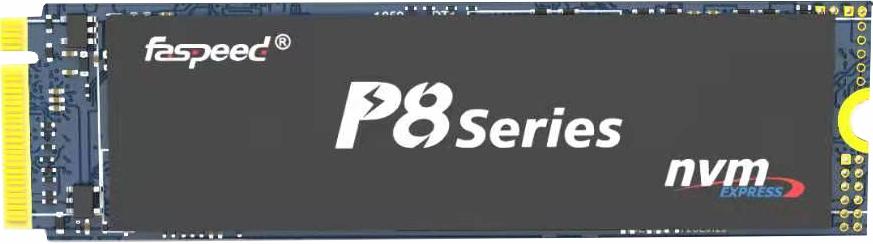

Faspeed P8 Series NVME M.2 SSD (Faspeed P8960GB) - P8960GB
Form factor: M.2
Interface: NVMe
Fully Compliant with NVMe 1.3 / PCIe 3.0 x4
Wide Operating TEMP Ranges from 0 to +70 and -40 to +70 for Storage TEMP
Flash management algorithm global static and dynamic wear-leveling, bad block management algorithm
MTBF:1,200,000 Hours
1.2 Capacity 960GB
Total Number Of Sectors(512/Sector): 1875385008
Total Number Of Bytes: 960197124096
Flash Type: 3D NAND Flash
1.3 Supply Voltage
Allowable Voltage: 3.3 V + 5%
Allowable noise/ripple: 100mV p-p or less
1.4 Power Consumption
Active (W): 1.8-4.5
Idle (W): 0.32
1.6 Environment
Features: Temperature
Operating: 0 to +70 -40 to +70
Non-Operating: -40 to +70
Humidity: 5% to 95%, Non-Condensing
Vibration: 20G Peak, 10~2000Hz, (15mins/Axis) x3Axis
Shock :1500G, duration 0.5ms, Half Sine Wave
3.1 Physical Dimension
Length (mm): 80 ±0.15
Width (mm): 22 ±0.15
Height (mm): 2.15 ±0.2
Weight(g): = 7.7g
3 Years Warranty
