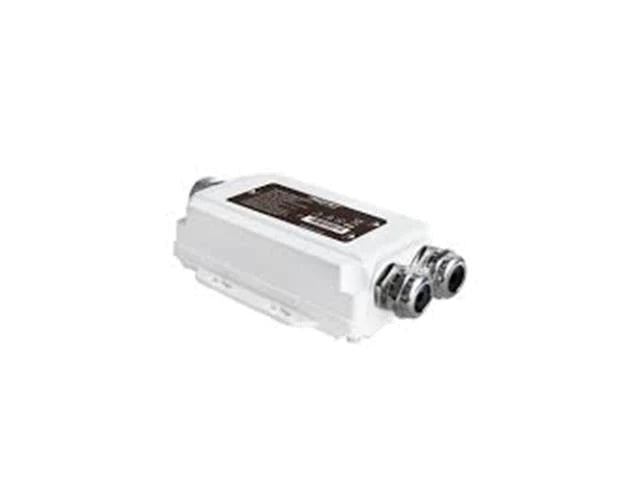

PT-PEX-02GB-OT is an outdoor rated PoE Extender with two PoE output ports, specially designed for exterior, complex backhaul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy housing.
The 3 ports 10/100/1000Mbps includes: 1 x PoE powered input port with 802.3bt at 95W and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 45W(Max) power for remote two PDs, totaling up to 90W. PoE Input port requiring more power which is powered by ultra 802.3bt PoE, works with input voltage of 50- 57Vdc, and operates under -40℃ to +65℃. The output ports equipped detecting chip which are compliant with IEEE802.3af/at/bt PDs, such as wireless APs, IP cameras, Microwave radio, base stations and other power Ethernet backhaul devices.
For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power. It is easy to install with mounting hole, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.
