OUTDOOR CAM 1080P NIGHT VISION - C3TNCV
EZVIZ C3TN Outdoor Security Camera 1080P
Home Protection In The Simplest Way
Wi-Fi Smart Home Camera
If you are seeking for a simple, durable Camera to tackle Multiple Security needs at a super affordable price
The C3TN cant be beat. The camera is well-engineered to focus on the most needed Features to get the basics right
Including great Video Quality, Extended Night Vision, Weatherproof housing, and more
C3TN 2MP
Crisp 1080p video with extended night vision
Specifications
Model CS-C3TN(2MP)
Camera
Image Sensor: 1/2.7Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed: Self-Adaptive Shutter
Lens: 2.8 mm @ F2.0, View Angle: 106 (Horizontal), 122(Diagonal)
Lens: Mount M12
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.265 / H.264
Video Bit Rate Ultra-HD; HD; Standard. Adaptive Bit Rate
Max. Resolution: 1920 × 1080
Frame Rate: Max: 30fps; Self-Adaptive during Network Transmission
Network
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate: 1 Mbps
Interface
Storage Micro: SD Card Slot (Max. 256 GB)
Wired Network: RJ45 × 1(10M/100M Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
General
Operating Conditions: -4F to 122 F (-20ºC to 50ºC ); Humidity 95% or less ( non-condensing)
Power Supply: DC 12V/1A
Power Consumption: Max. 6W
IP Grade: IP 67
Night Vision Distance (Black/White Night Vision Mode): Max. 30 m (98 ft)

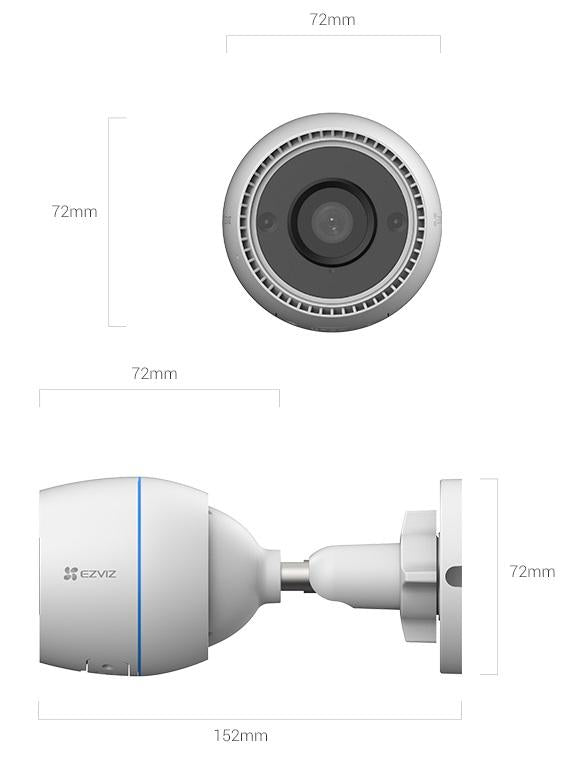

Dimensions: 72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight: 253 g (8.9 oz)
In The Box
C3TN Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Certifications: CE / FCC / UL / RoHS / WEEE
