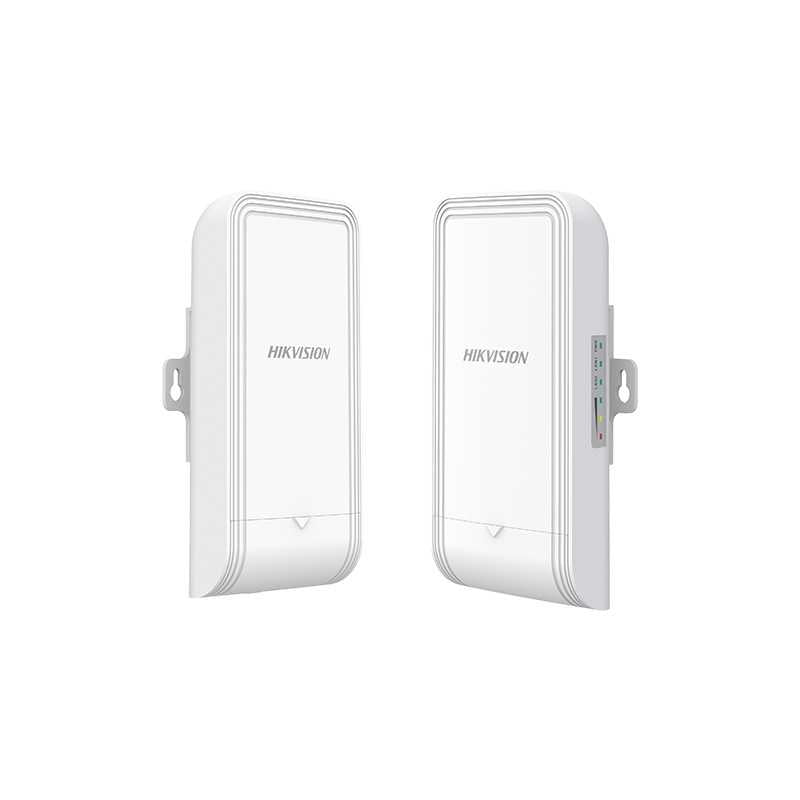

Wireless Kit DS-3WF3000-EI-5AC/P 8dBi
Manufacturer overview
5Ghz 867Mbps 3KM Wireless Bridge Kit
- Up to 3 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 8 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
Specifications
| Installation Mode |
Pole Mounting |
| Ingress Protection |
IP55 |
| Power Consumption |
2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W |
| Max. Transmission Rate of Air Interface |
≤ 867 Mbps |
| Wireless Standard |
IEEE 802.11/a/n/ac |
| Working Frequency Band |
5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz |
| Antenna Gain |
8 dBi |
| Antenna Angle |
(H) Beamwidth [3 dB] 50°, (V) Beamwidth [3 dB] 50° |
| Transmitting Power |
22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity |
-84 ±2dBm@AC80-MCS0 |
| Throughput Rate |
PTP: 90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): 20 Mbps/3 KM(AC80) |
| Network Interface |
2 × 10/100 Mbps RJ45 ports |
| LED Indicator |
Power indicator,LAN indicator,Signal intensity indicator |
| Reset |
Hardware resetting button |
| Power Supply |
48V PoE/12~24V DC;Check the physical interface image below for more details. |
| Application Function |
IFM,IPM,DFS,TPC |
| Channel Width |
20/40/80 MHz |
| Channel Selection |
Auto/manual selection |
| Security Mode |
WPA2-PSK |
| Security Mechanism |
Wireless network name hidden |
| Network Protocol |
NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) |
| Management Method |
HCP,Web,iVMS-4200,HPP |
| System Log |
Syslog,Control center information |
| Upgrade |
Web,iVMS-4200,HCP,HPP |
| PoE Port |
AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT |
