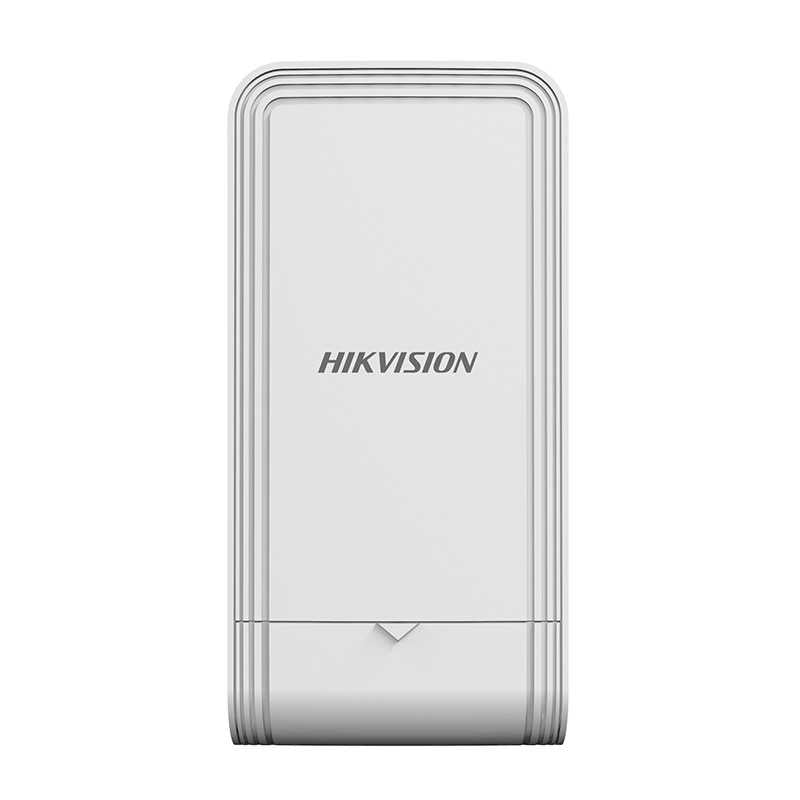

Wireless CPE DS-3WF02C-5AC/O 5GHz 9dBi
Manufacturer overview
5Ghz 867Mbps 5km Outdoor Wireless CPE
- Up to 5 km wireless transmission distance
- All gigabit LAN ports
- TDMA supported
- Quick match through DIP switch
- Visualized topology management
Specifications
| Installation Mode |
Pole Mounting |
| Ingress Protection |
IP55 |
| Power Consumption |
2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
| Max. Transmission Rate of Air Interface |
≤ 867 Mbps |
| Wireless Standard |
IEEE 802.11/a/n/ac |
| Working Frequency Band |
5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz,(Note: Available channel may vary with local regulations.) |
| Antenna Gain |
12 dBi |
| Antenna Angle |
(H) Beamwidth [3 dB] 35°, (V) Beamwidth [3 dB] 35° |
| Transmitting Power |
22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity |
-84±2dBm@AC80-MCS0 |
| Throughput Rate |
PTP: 230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): 80 Mbps/1 KM(AC80) |
| Network Interface |
2 × 1000 Mbps RJ45 ports |
| LED Indicator |
Power indicator,LAN indicator,Signal intensity indicator |
| Reset |
Hardware resetting button |
| Power Supply |
12 VDC/1 A Passive PoE |
| Application Function |
TDMA,DFS,TPC,IFM,IPM |
| Channel Width |
20/40/80 MHz |
| Channel Selection |
Auto/manual selection |
| Security Mode |
WPA2-PSK |
| Security Mechanism |
Wireless network name hidden |
| Network Protocol |
NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) |
| Management Method |
Web,iVMS-4200,HCP,HPP |
| System Log |
Syslog,Control center information |
| Upgrade |
Web,iVMS-4200,HCP,HPP |
| EMC |
CE-EMC(EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4), IC(ICES-003, Issue 7) |
