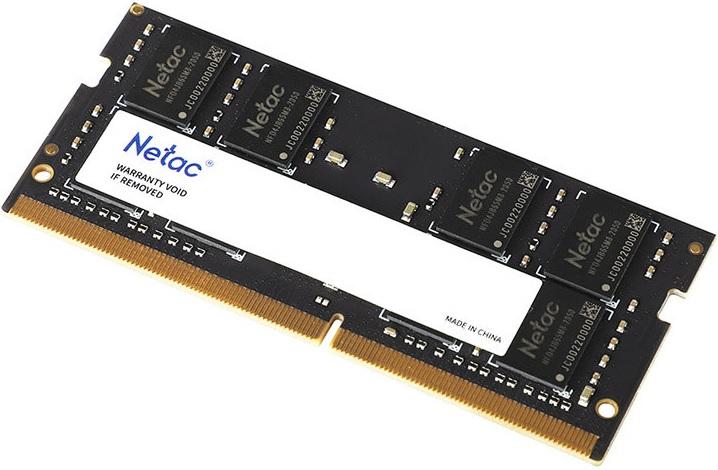

NETAC BASIC 8GB 3200 SODIMM - NTBSD4N32SP-08
Basic SO DDR4 260-Pin SODIMM
Capacity: 8GB
Speed: 3200MHz
Latency: 22-22-22-52 1.2V
Voltage: 1.2V
Features
Power Supply: VDD=1.2V (1.14V to 1.26V)
VDDQ :1.2V (1.14V to 1.26V)
VPP - 2.5V (2.375V to 2.75V)
VDDSPD: 2.25V to 3.6V
Nominal and dynamic on-die termination (ODT) for Data, strobe, and mask Signals
Low-Power Auto self-refresh (LPASR)
Data Bus Inversion (DBI) for Data Bus
On-die VREFDQ Generation and calibration
On-Board I2C Serial presence-detect (SPD) EEPROM
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the Mode Register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Data Bus write cyclic redundancy check (CRC)
Temperature controlled refresh (TCR)
Command/Address (CA) parity
Per DRAM Addressability is Supported
8 Bit pre-fetch
Fly-by Topology
Command/Address Latency (CAL)
Terminated control command and address bus
PCB: Height 1.18 (30.00mm)
Gold edge contacts
RoHS Compliant and Halogen-Free
