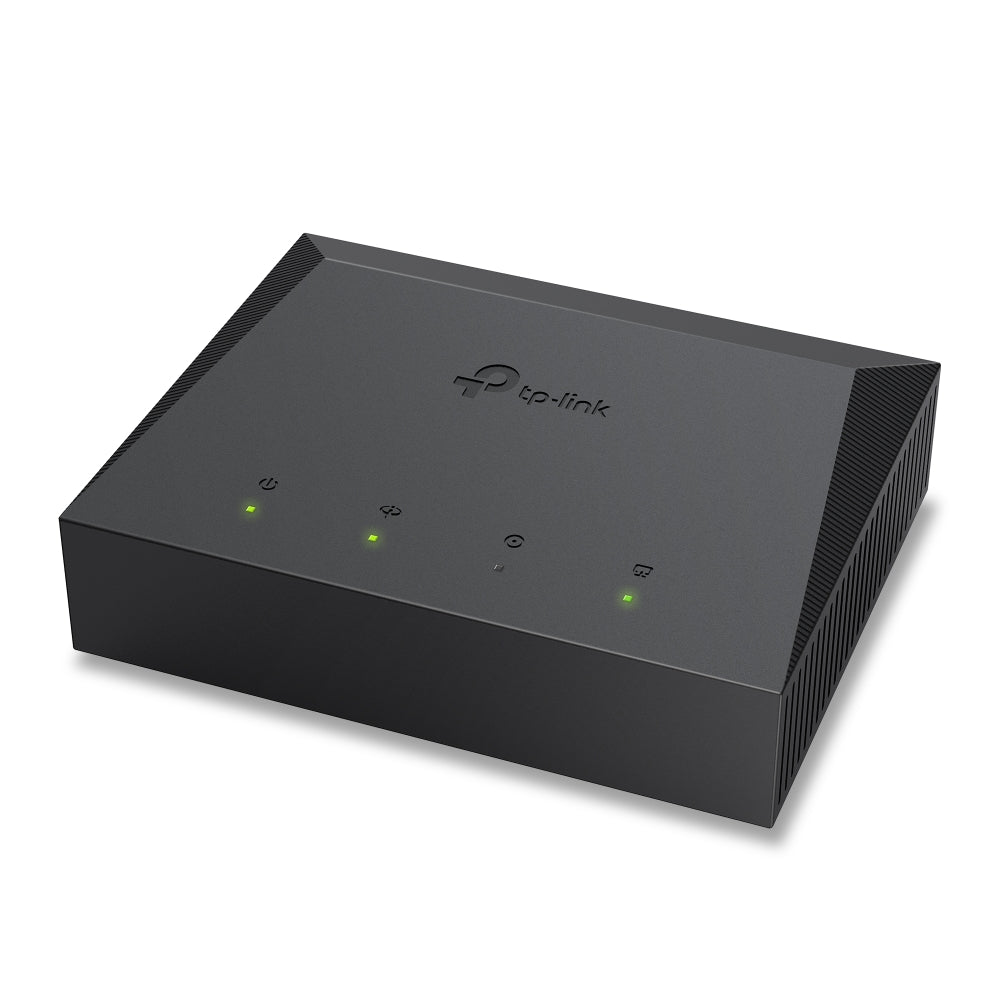

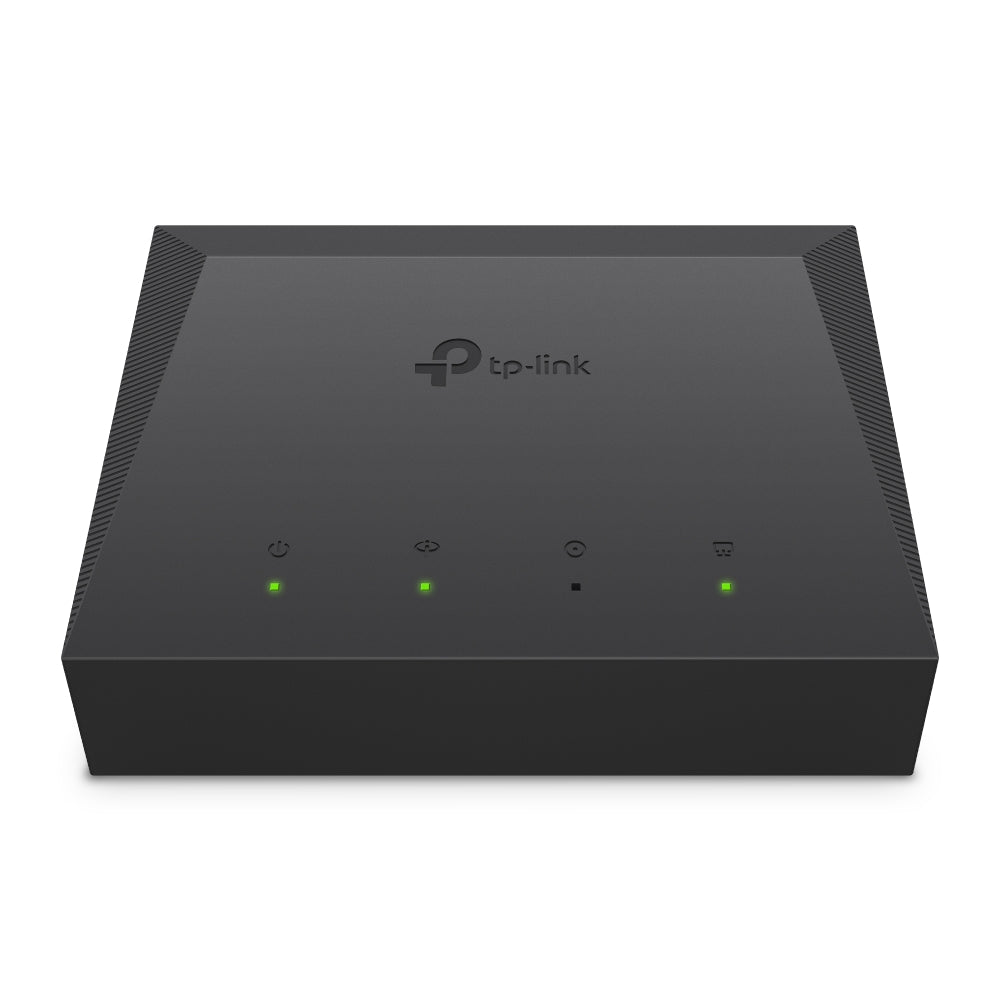

TP-Link XZ000-G6 1-Port Gigabit XPON Terminal
Gigabit Fibre Made Simple. Reliable GPON Performance.
The TP-Link XZ000-G6 delivers high-speed fibre connectivity with up to 2.488Gbps downstream and 1.244Gbps upstream for smooth, uninterrupted performance. Designed for FTTH deployments, it provides stable Gigabit wired access for homes and businesses. OMCI support enables easy remote provisioning and management, reducing operational complexity for service providers. Advanced GPON technologies ensure efficient bandwidth allocation and reliable network performance. With built-in security features such as AES encryption and VLAN filtering, it safeguards data across the network. Compact, cost-effective and scalable, it痴 ideal for modern fibre infrastructure.
Features
- High-speed GPON performance - Supports up to 2.488Gbps downstream and 1.244Gbps upstream for reliable high-bandwidth services
- Gigabit wired connectivity - 1× Gigabit LAN port delivers fast and stable wired network access
- FTTH ready solution - Ideal for fibre-to-the-home deployments with seamless integration into existing infrastructure
- Easy remote management - OMCI support enables simple provisioning, configuration and maintenance
- Advanced GPON technology - Supports DBA and FEC for efficient bandwidth allocation and improved transmission stability
- Secure network operation - Features AES encryption and VLAN-based filtering for enhanced data security
Specifications
Hardware Features

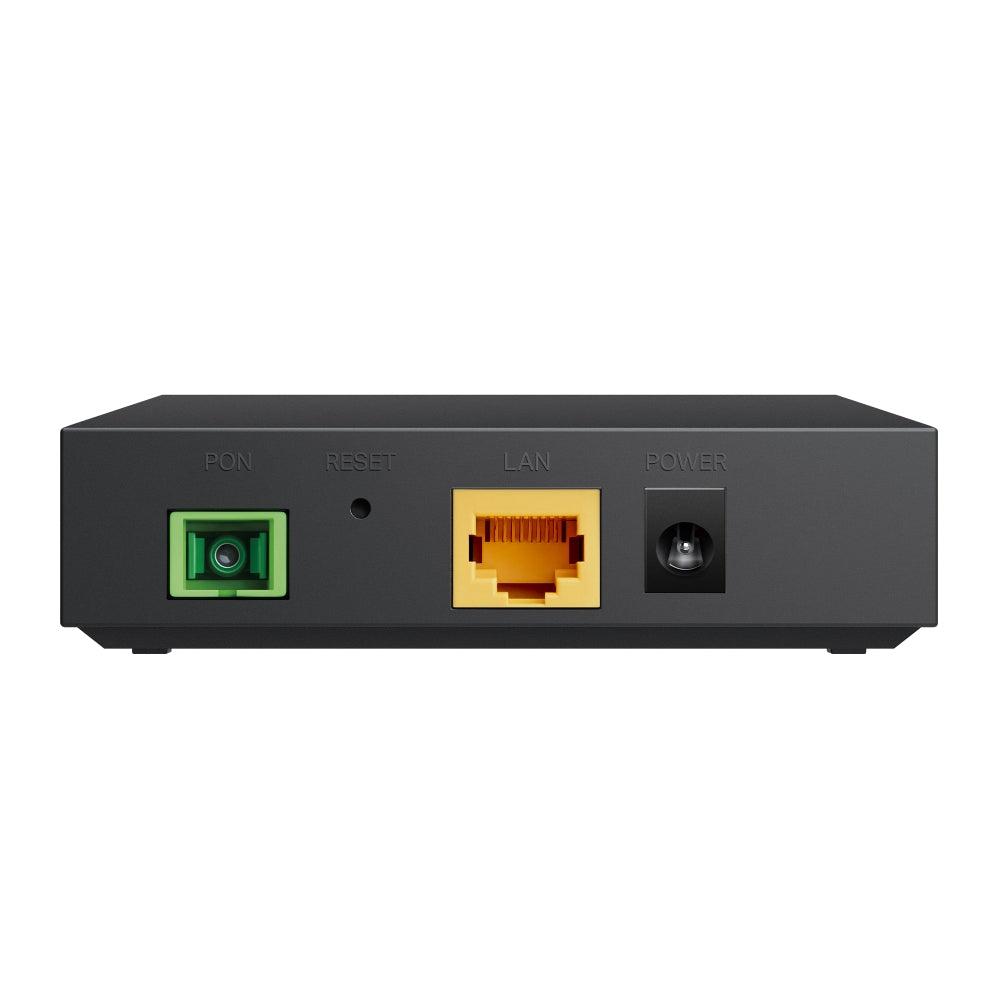

- Interface: 1× PON Port, 1× Gigabit LAN Port
- Button: Reset Button
- Power Supply: 9V 0.6A
- IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
- Data Rates: Up to 2.488Gbps Downstream / 1.244Gbps Upstream (GPON), 1.25Gbps Symmetrical (EPON)
- Wavelength: 1490nm Downstream, 1310nm Upstream
- Optical Module: Class B+
- Transmission Distance: up to 20km
- Transmitter: DFB Laser
- Receiver: PIN-TIA
- Dimensions: 95 × 75 × 29.3mm
Software Features
- Protocols: IPv4 and IPv6 Supported
- Working Mode: Bridge
- GPON Features: DBA, FEC
- VLAN: 802.1Q Tag VLAN
- VLAN Modes: Transparent / Translation / Trunk
- Authentication: SN and Password Based, VLAN Auto Detect
- IGMP: IGMP v1/v2/v3
- Management: Local (WebGUI, Telnet), Remote (OMCI)
- Security: AES Encryption, VLAN-based Packet Filtering
- Advanced Features: Optical Power Detection, Dying Gasp, Terminal Silent Mechanism, up to 16× T-CONTs and 256× GEM Ports
General Specifications
- GPON Standard: ITU-T G.984 Series (Class B+)
- EPON Standard: 1000BASE-PX20+
- Receiving Sensitivity: -27dBm (GPON/EPON)
- Transmitting Power: 0.5~5dBm (GPON), 0~4dBm (EPON)
- Input Optical Power: -18~0dBm
- Output Reflection Loss: >15dB
Environment
- Operating Temperature: 0~40°C
- Storage Temperature: -40~60°C
- Operating Humidity: 10~90% Non-Condensing
- Storage Humidity: 5~90% Non-Condensing
