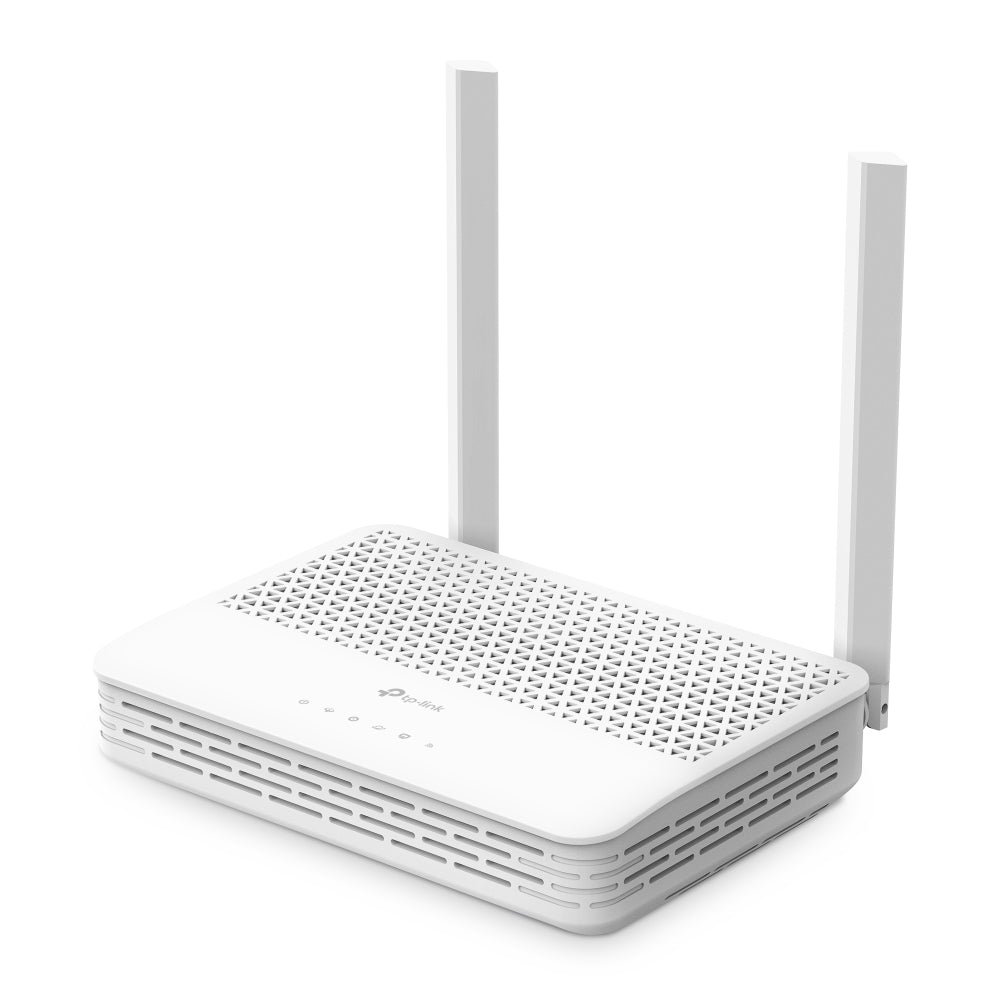

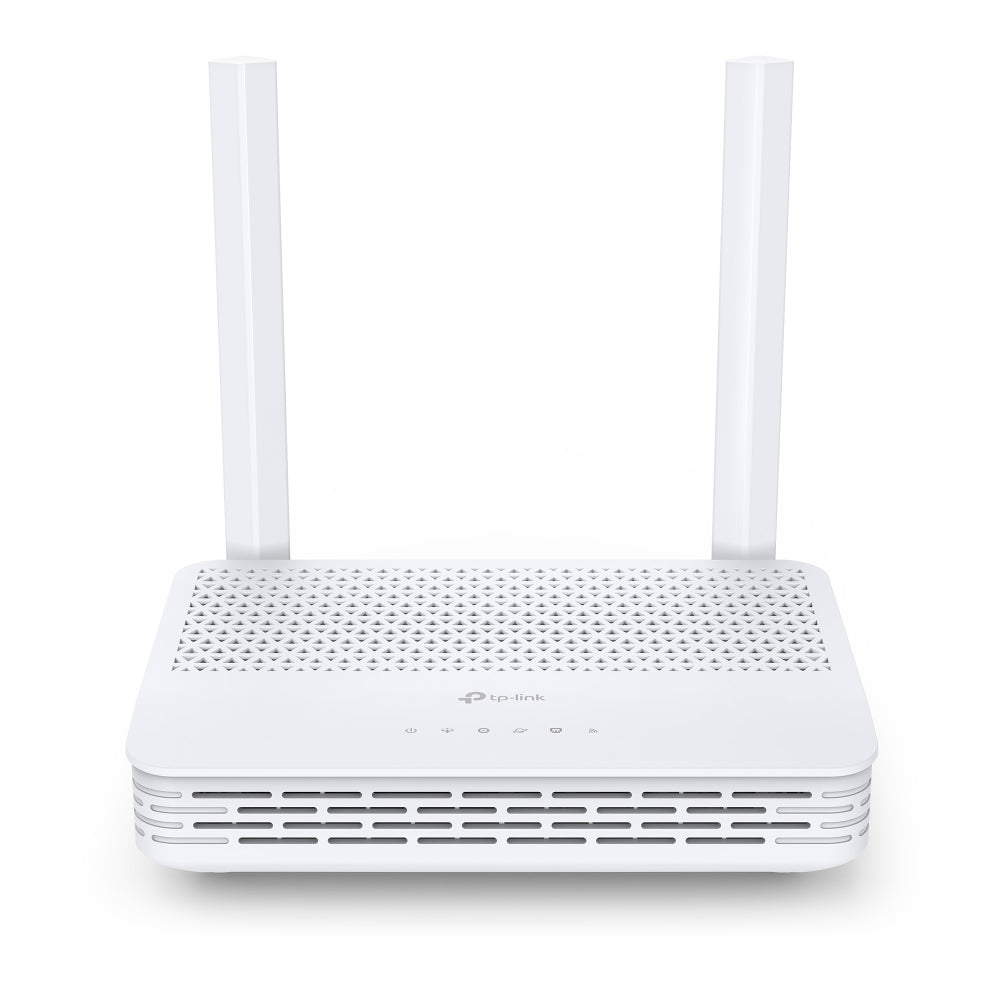

TP-Link XC220-G3 AC1200 Dual-Band Wireless XPON Router
Dual-Band Fibre Connectivity for FTTH Deployments.
The TP-Link XC220-G3 AC1200 Wireless XPON Router is designed for Fibre-to-the-Home deployments, supporting both GPON and EPON access through a dedicated PON port. It delivers dual-band Wi-Fi speeds up to 1,200Mbps, with 867Mbps on 5.0GHz and 300Mbps on 2.4GHz, making it suitable for streaming, browsing, gaming and everyday connected devices. With 2× Gigabit LAN ports, EasyMesh compatibility, IPTV support, WPA3 security and remote management through OMCI and TR-069, the XC220-G3 provides a practical fibre router solution for service providers and home networks.
Features
- AC1200 Dual-Band Wi-Fi - Delivers combined wireless speeds up to 1,200Mbps
- 867Mbps 5.0GHz Band - Ideal for streaming, gaming and bandwidth-heavy applications
- 300Mbps 2.4GHz Band - Provides reliable connectivity for browsing and everyday use
- XPON Dual Mode - Supports both GPON and EPON fibre access
- High-Speed GPON Service - Supports up to 2.488Gbps downstream and 1.244Gbps upstream
- Gigabit Wired Connectivity - Includes 2× Gigabit LAN ports for PCs, consoles and wired devices
- EasyMesh Compatible - Supports standard mesh networking for wider whole-home coverage
- MU-MIMO Technology - Improves wireless efficiency when multiple devices are connected
- Beamforming Technology - Focuses Wi-Fi signal towards connected devices for better coverage
- IPTV Support - Supports IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN for IPTV services
- WPA3 Security - Helps protect the wireless network with enhanced encryption
- Remote Management - Supports OMCI and TR-069 for service provider management
- Compact Fibre Tray Design - Helps store and protect redundant fibre cable
Specifications
- Wireless Standard: IEEE 802.11ac/n/a 5.0GHz, IEEE 802.11b/g/n 2.4GHz
- Wi-Fi Speed: AC1200
- 5.0GHz Speed: Up To 867Mbps
- 2.4GHz Speed: Up To 300Mbps
- XPON Mode: GPON And EPON
- GPON Speed: 2.488Gbps Downstream, 1.244Gbps Upstream
- EPON Speed: 1.25Gbps Downstream and Upstream

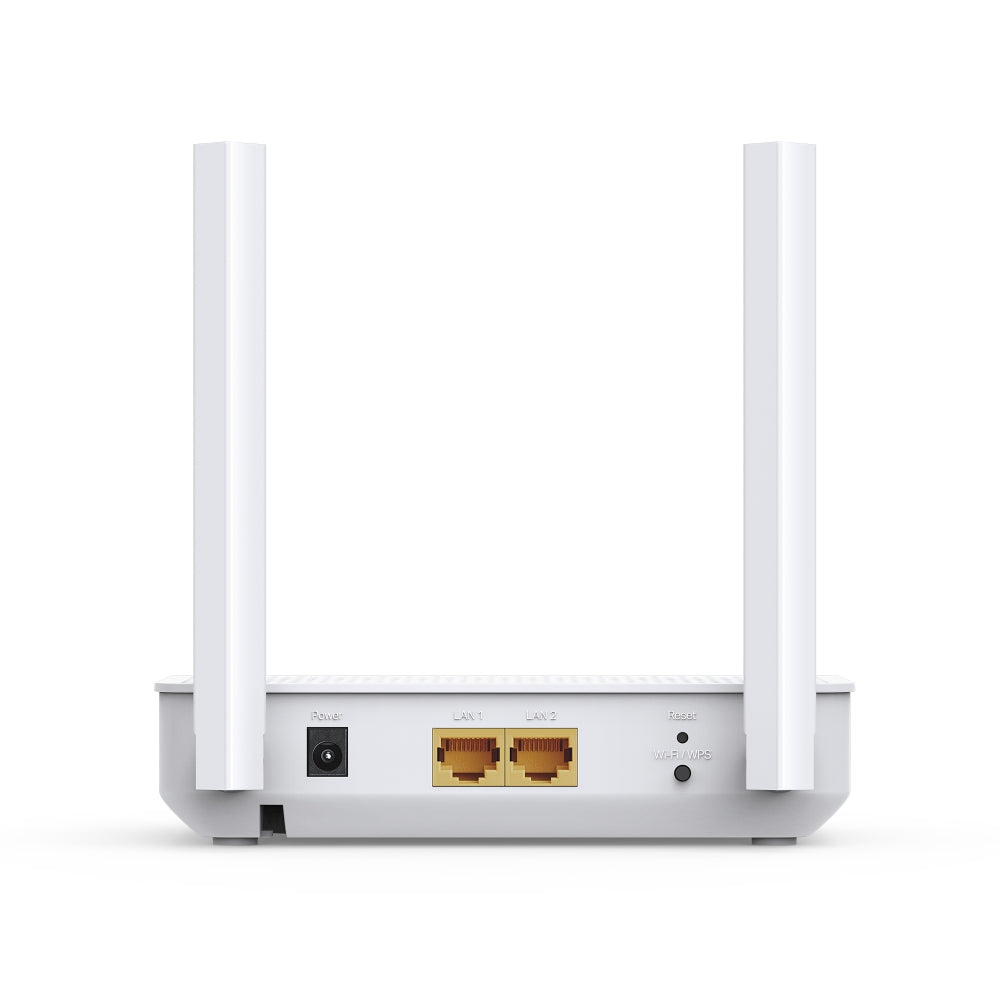

- Interface: 1× SC/APC PON Port, 2× 10/100/1000Mbps LAN Ports
- Antennas: 2× External Dual-Band Antennas
- Buttons: Reset Button, WPS/Wi-Fi Button
- Wireless Security: WPA/WPA2/WPA3-PSK
- Mesh Technology: EasyMesh Compatible
- IPTV Support: IGMP V2/V3, IGMP Snooping and Proxy
- Management: Local Management, Remote Management, TR-069 and OMCI
- Protocols: IPv4 And IPv6
- Working Mode: Router
- Power Supply: 12V 1A
- Dimensions: 157.23 × 112.36 × 37mm
- Operating Temperature: 0~40°C
- Certification: CE, RoHS
Notes
- WPA3 requires compatible client devices
- EasyMesh requires compatible EasyMesh products and may require setup through supported management tools
