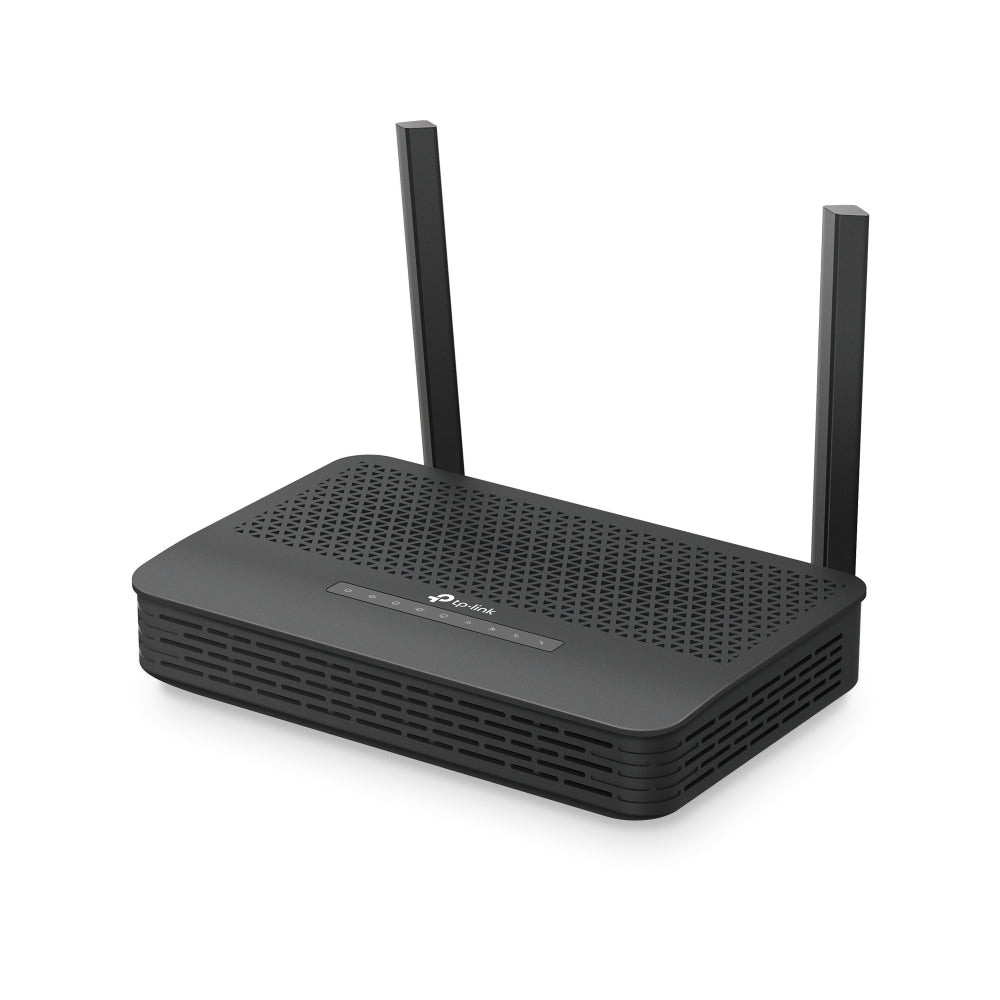

TP-Link XX530v AX3000 Dual-Band Wi-Fi 6 GPON Router with VOIP
High-Speed GPON, Wi-Fi 6 and VoIP in One Service Provider Router.
The TP-Link XX530v is an AX3000 dual-band Wi-Fi 6 GPON router designed for high-speed fibre, voice and home networking deployments. Compliant with ITU-T G.984 GPON standards, it supports GPON data rates up to 2.488Gbps downstream and 1.244Gbps upstream for fast fibre connectivity. Dual-band Wi-Fi 6 delivers up to 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz, while OFDMA, MU-MIMO, Beamforming and EasyMesh support help improve wireless performance across connected homes. With Gigabit Ethernet ports, 1× FXS phone port, 1× USB2.0 port, VoIP support and Aginet remote management, the XX530v is ideal for ISP fibre and voice service deployments.
Features
- AX3000 Dual-Band Wi-Fi 6 - Delivers up to 2,402Mbps on 5.0GHz and 574Mbps on 2.4GHz
- GPON Fibre Connectivity - Supports ITU-T G.984 GPON with up to 2.488Gbps downstream and 1.244Gbps upstream
- VoIP Telephony - Includes FXS phone port support for voice services
- Full Gigabit Ports - Provides 1× Gigabit WAN/LAN port and 3× Gigabit LAN ports
- USB2.0 Port - Supports Samba, FTP and DLNA server functions
- EasyMesh Support - Helps create a unified mesh network with compatible EasyMesh devices
- Seamless Roaming - Supports IEEE 802.11k/v/r for smoother movement across compatible mesh networks
- OFDMA and MU-MIMO - Improves Wi-Fi efficiency for multiple connected devices
- Beamforming Technology - Focuses wireless signal towards connected devices for improved reliability
- Aginet Remote Management - Supports Aginet App, OMCI, TR-069, TR-098 and TR-181 management
- IGMP Support - Supports IGMP Proxy V1/V2/V3 and IGMP Snooping for multicast services
- Multi-SSID Support - Creates multiple wireless networks for different users or services
- VPN Server Support - Supports PPTP VPN, IPSec VPN and OpenVPN
- Quality of Service - Hardware QoS and flow classification help prioritise network traffic
Specifications
- GPON Standard: ITU-T G.984, Class B+
- GPON Speed: 2.488Gbps Downstream, 1.244Gbps Upstream
- GPON Port: 1× SC/APC GPON Port
- GPON Distance: 0~20km Max.
- GPON Wavelength: 1,490nm Downstream, 1,310nm Upstream
- GPON Transmitting Power: 0.5~5dBm
- GPON Receiving Sensitivity: -27dBm
- GPON Saturated Power: -8dBm
- Transmitter: DFB Laser
- Receiver: PIN-TIA
- Wireless Standard: IEEE 802.11a/n/ac/ax 5.0GHz, IEEE 802.11b/g/n/ax 2.4GHz
- Wi-Fi Speed: AX3000
- 5.0GHz Speed: Up to 2,402Mbps
- 2.4GHz Speed: Up to 574Mbps
- Frequency: 2.4GHz and 5.0GHz

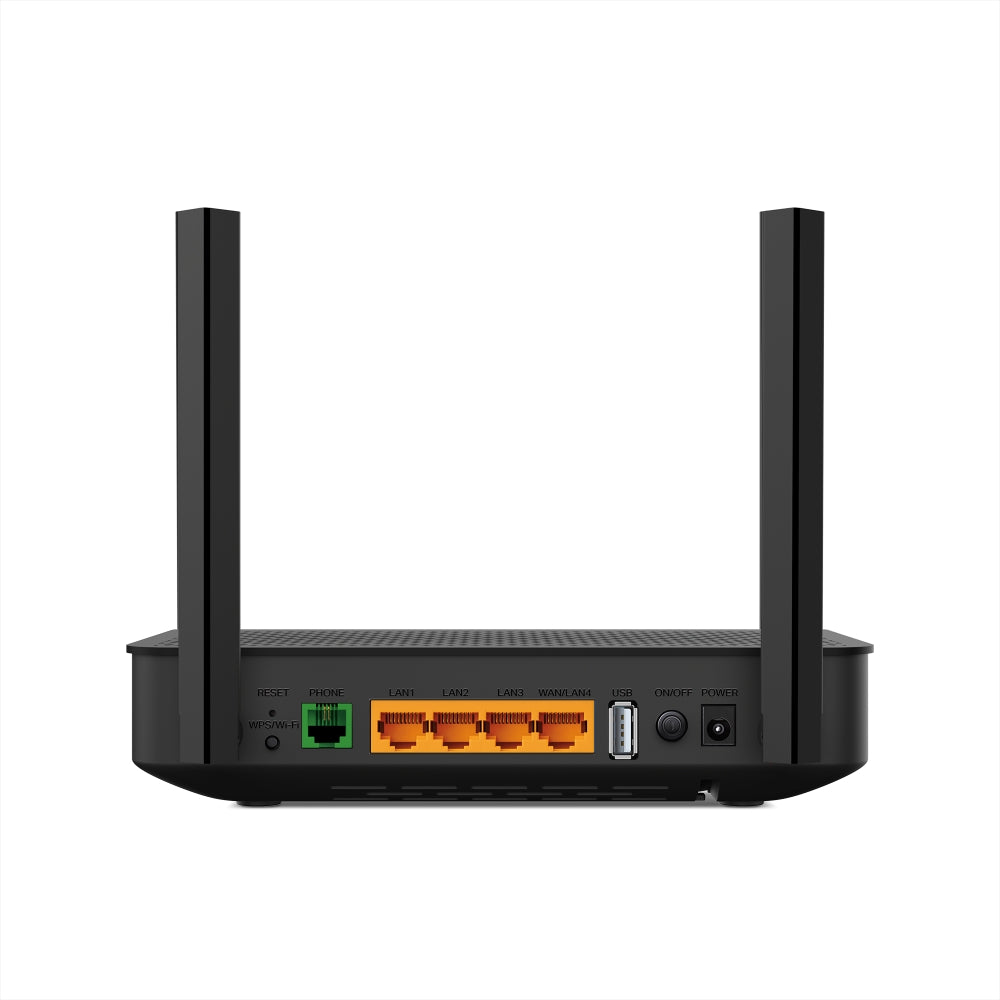

- Interfaces: 1× 10/100/1000Mbps WAN/LAN Port, 3× 10/100/1000Mbps LAN Ports, 1× USB2.0 Port, 1× FXS Port, 1× SC/APC GPON Port
- Antennas: 2× High-Performance External Dual-Band Antennas, 1× Internal 5.0GHz Antenna
- Buttons: Power On/Off Button, WPS/Wi-Fi Button, Reset Button
- Mesh: EasyMesh, IEEE 802.11k/v/r, Self-Healing, Seamless Roaming
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
- Wireless Schedule: Supports 2.4GHz and 5.0GHz Wireless Schedule
- Wireless Security: WPA-PSK, WPA2-PSK, WPA/WPA2 Mixed Mode, 802.1x WPA2 Enterprise
- Protocols: IPv4, IPv6
- Advanced Functions: VoIP, Parental Controls, Port Forwarding, TX Beamforming, MU-MIMO, IGMP Proxy, IGMP Snooping, Airtime Fairness, Band Steering, Multi-SSID, Wi-Fi Schedule
- USB Functions: Samba, FTP, DLNA Server
- Management: Local Management, Remote Management, Aginet App, OMCI, TR-069, TR-098, TR-181
- Quality of Service: Hardware QoS, Flow Classification
- VPN Server: PPTP VPN, IPSec VPN, OpenVPN
- Dynamic DNS: TP-Link, DynDNS, NO-IP
- Firewall Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP And MAC Address Binding, Access Control
- DHCP: Server, DHCP Client List, Address Reservation
- External Power Supply: 12V 1.5A
- Dimensions: 203 × 139.4 × 45.7mm
- Operating Temperature: 0~40°C
- Storage Temperature: -40~60°C
- Certification: CE
Notes
- GPON service must be provisioned by a compatible service provider
- VoIP functionality depends on service provider configuration and SIP/voice service availability
