TP-Link TL-WPA4220 TKIT AV600 Powerline Universal Wi-Fi Range Extender 3-Device Kit
Take Wi-Fi Further Through Existing Wiring.

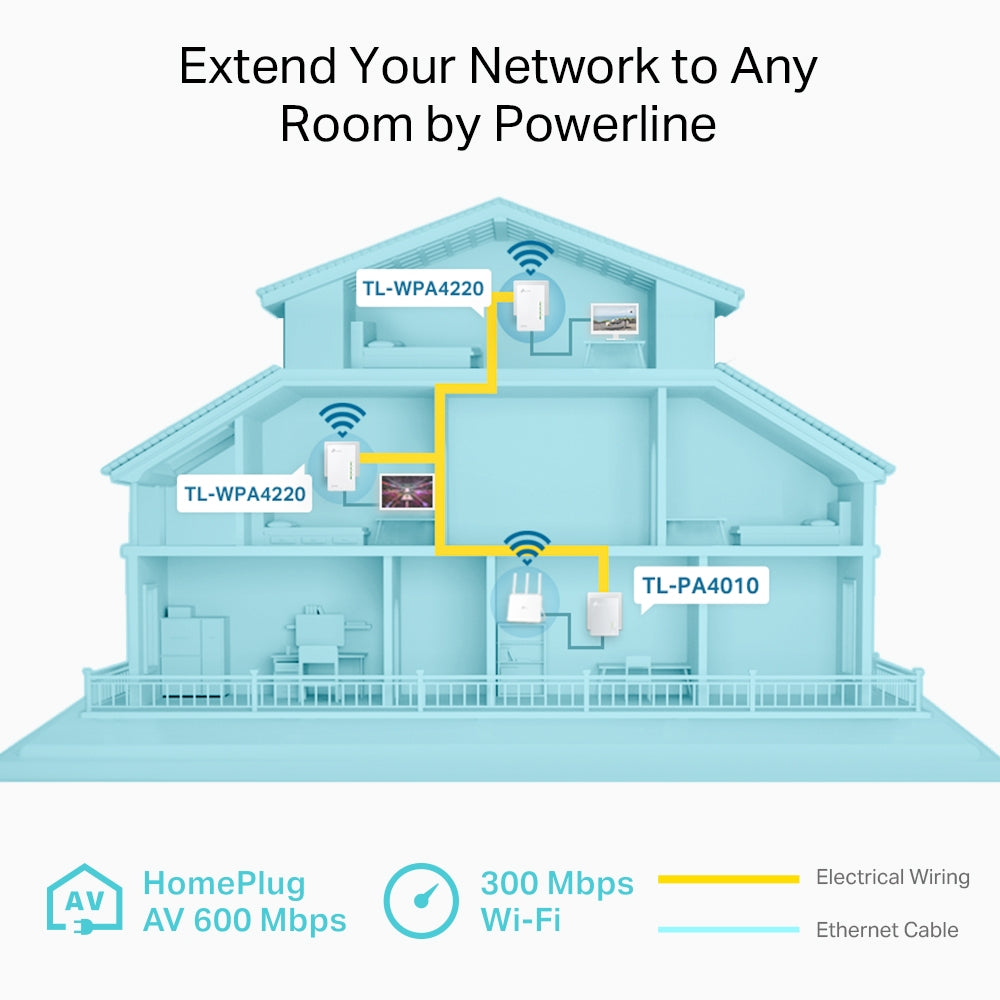

The TP-Link TL-WPA4220 TKIT extends wired and wireless connectivity to rooms where the router’s signal may struggle to reach. The three-device kit includes one TL-PA4010 adapter for connection to the router and two TL-WPA4220 Wi-Fi extenders for placement around the home or office. HomePlug AV2 technology delivers theoretical powerline rates of up to 600Mbps through compatible electrical wiring, while each extender provides 2.4GHz Wi-Fi speeds of up to 300Mbps. Wi-Fi Clone copies the router’s network name and password and Auto-Sync helps keep wireless settings consistent across the powerline network. Five Fast Ethernet ports accommodate smart TVs, computers, game consoles and other wired devices, while Pair buttons and 128-bit AES encryption simplify the creation of a secure powerline connection.
Features
- Complete Three-Device Kit - Includes one wired powerline adapter and two powerline Wi-Fi extenders
- AV600 Powerline Connectivity - Delivers theoretical powerline link rates of up to 600Mbps through compatible electrical wiring
- 300Mbps Wi-Fi - Extends 2.4GHz wireless connectivity to previously difficult-to-reach areas
- One-Touch Wi-Fi Clone - Copies the router’s wireless network name and password for simpler configuration
- Automatic Wi-Fi Synchronisation - Applies compatible wireless-setting changes across the powerline network

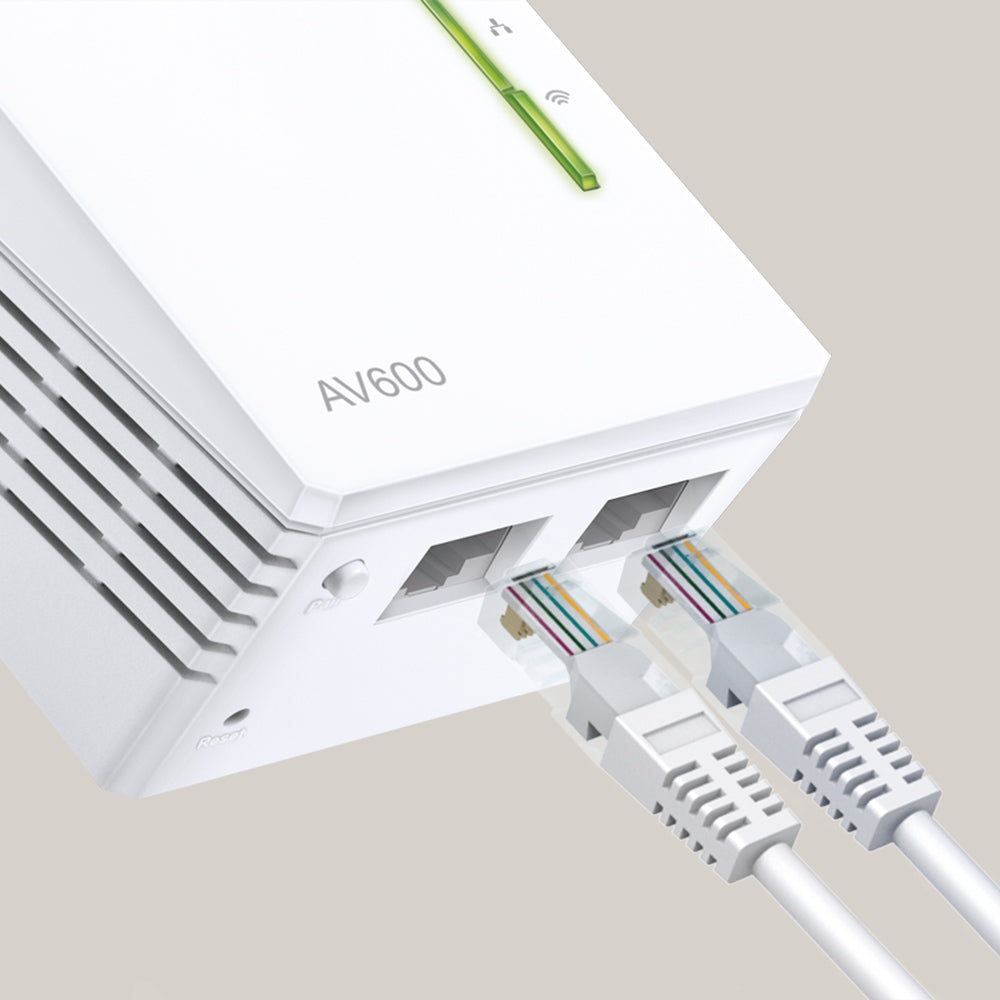

- Five Fast Ethernet Ports - Provides two ports on each Wi-Fi extender and one port on the wired adapter
- Up to 300m Powerline Range - Extends connectivity across compatible wiring on the same electrical circuit

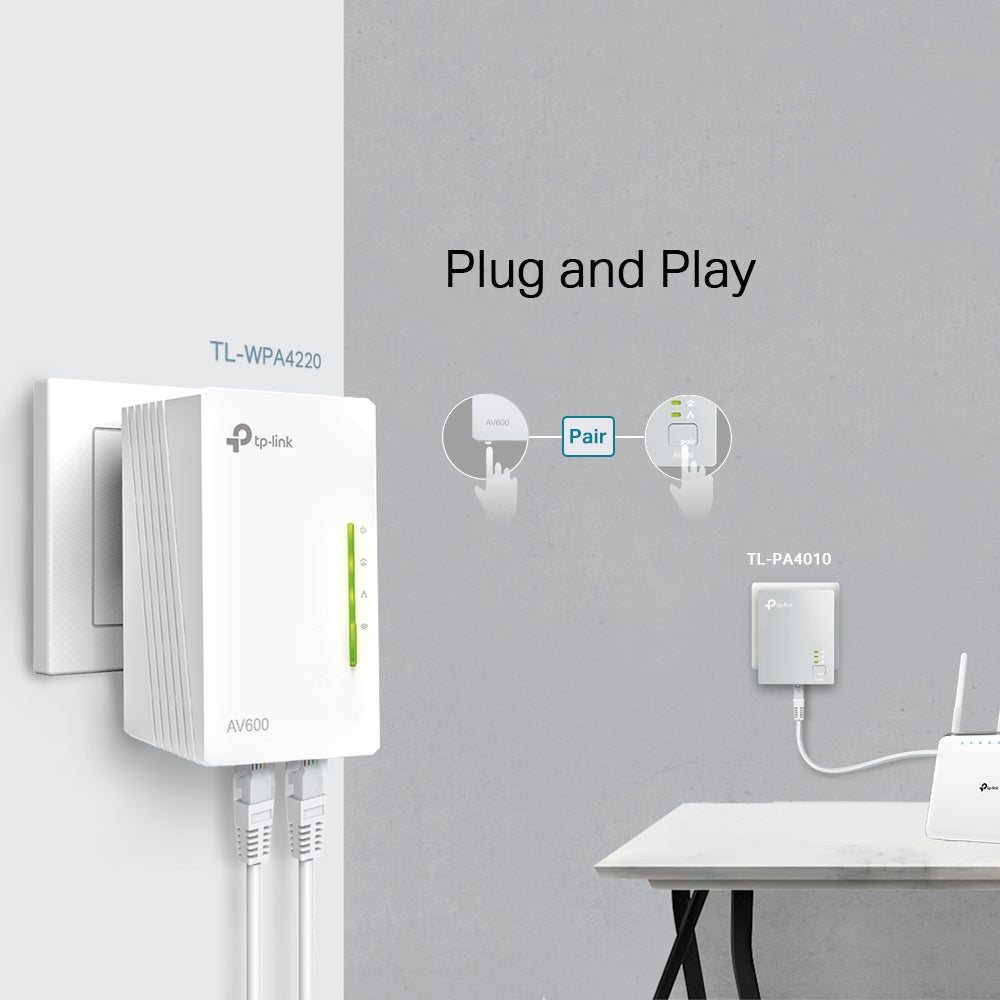

- Plug-and-Play Installation - Establishes a powerline connection without new network cabling or drilling
- Secure Network Pairing - Pair buttons establish a powerline network protected by 128-bit AES encryption
- Convenient Management - Supports the TP-Link tpPLC app and desktop utility for monitoring and configuration
Specifications
General
- Kit Configuration: 2× TL-WPA4220 Wi-Fi Extenders and 1× TL-PA4010 Powerline Adapter
Powerline
- Powerline Standards: HomePlug AV2 and IEEE 1901
- Maximum Powerline Signal Rate: Up to 600Mbps
- Powerline Range: Up to 300m over compatible electrical wiring
- Modulation Technology: OFDM
- Compatibility: HomePlug AV and HomePlug AV2 Powerline Devices
- Multicast Support: IGMP v1, v2 and v3
Wireless
- Wireless Standards: IEEE 802.11b/g/n
- Wireless Band: 2.4GHz
- Maximum Wireless Signal Rate: Up to 300Mbps
- Wireless Security: WEP, WPA-PSK and WPA2-PSK
- Wireless Functions: Wi-Fi Clone, Auto-Sync, WMM and Guest Network
Interfaces And Controls
- TL-WPA4220 Ethernet Ports: 2× 10/100Mbps per Extender
- TL-PA4010 Ethernet Ports: 1× 10/100Mbps
- Total Ethernet Ports: 5×
- Buttons: Pair, Reset and Wi-Fi/Wi-Fi Clone
- LED Indicators: Power, Powerline, Ethernet and Wi-Fi
Management
- Mobile Management: TP-Link tpPLC App for Android and iOS
- Desktop Management: TP-Link tpPLC Utility
- Management Functions: Powerline Speed Monitoring, LED Control and Network Configuration
Power
- TL-WPA4220 Power Consumption: 5.6W Maximum, 5.2W Typical per Unit
- TL-PA4010 Power Consumption: 2.6W Maximum, 2.3W Typical
Physical
- TL-WPA4220 Dimensions: 54 × 40 × 94mm
- TL-PA4010 Dimensions: 52 × 28.5 × 65mm
Environmental
- Operating Temperature: 0~40°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 5~90% RH, Non-Condensing
Compliance
- Certifications: CE and RoHS
Notes
- All powerline devices must be connected to the same electrical circuit
- Connect the devices directly to wall outlets; multiplugs can reduce performance or cause connection loss
- The 10/100Mbps Ethernet interfaces limit the maximum wired connection speed to 100Mbps
