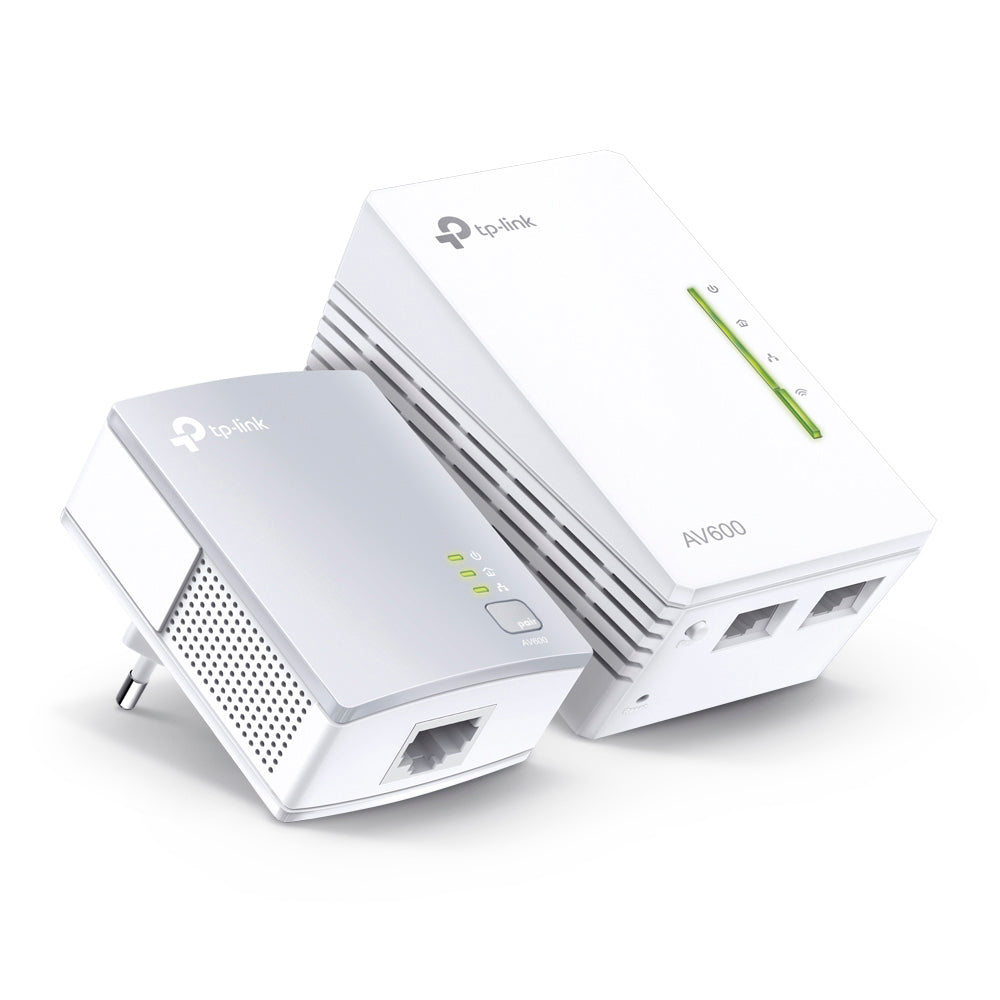

TP-Link TL-WPA4220 KIT AV600 300Mbps Wi-Fi Powerline Extender Starter Kit
The TL-WPA4220 transforms your home痴 existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV2, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters and bringing wired and wireless network simultaneously to anywhere there is a power outlet.
Features
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps¹ high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Specifications
Hardware Features
- Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
- Interface: 2x 10/100Mbps Ethernet Port
- Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
- Power Consumption: Maximum: 7.608W (220V/50Hz)
- Typical: 7.216W (220V/50Hz)
- Standby: 4.610W (220V/50Hz)
- LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
- Dimensions ( W x D x H )TL-WPA4220: 54 × 40 × 94mm
- TL-PA4010: 52 × 28.5 × 65mm
- Range: 300 Meters over electrical circuit
Wireless Features
- Frequency: 2.4-2.4835GHz
- Signal Rate:
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
- Reception Sensitivity:
- 270M: -68dBm@10% PER
- 130M: -68dBm@10% PER
- 108M: -68dBm@10% PER
- 54M: -68dBm@10% PER
- 11M: -85dBm@8% PER
- 6M: -88dBm@10% PER
- 1M: -90dBm@8% PER
- Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
- Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
- Transmission Power: CE:<20dBm (2.4GHz), FCC <30dBm
Software Features
- Modulation Technology: OFDM (PLC)
- Encryption
- Powerline Security: 128-bit AES
- Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
Others
- Certification: CE, RoHS
- System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
