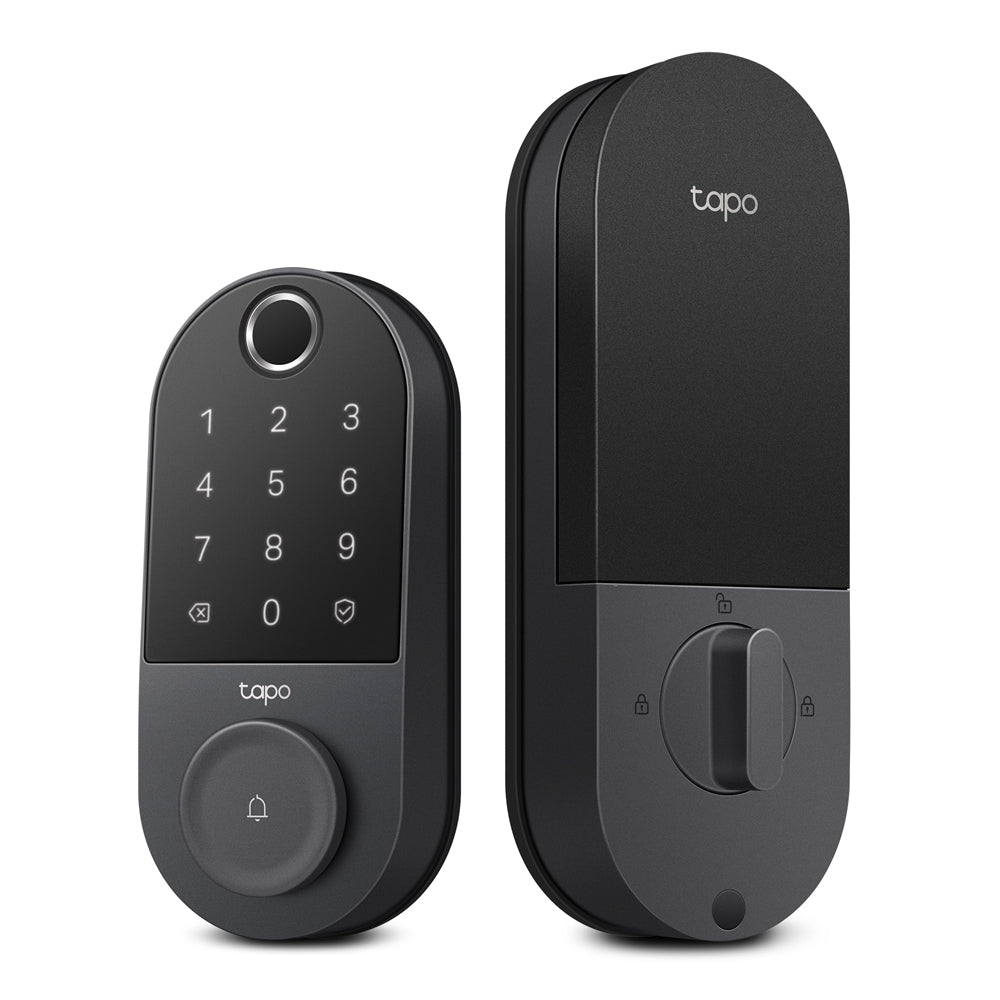

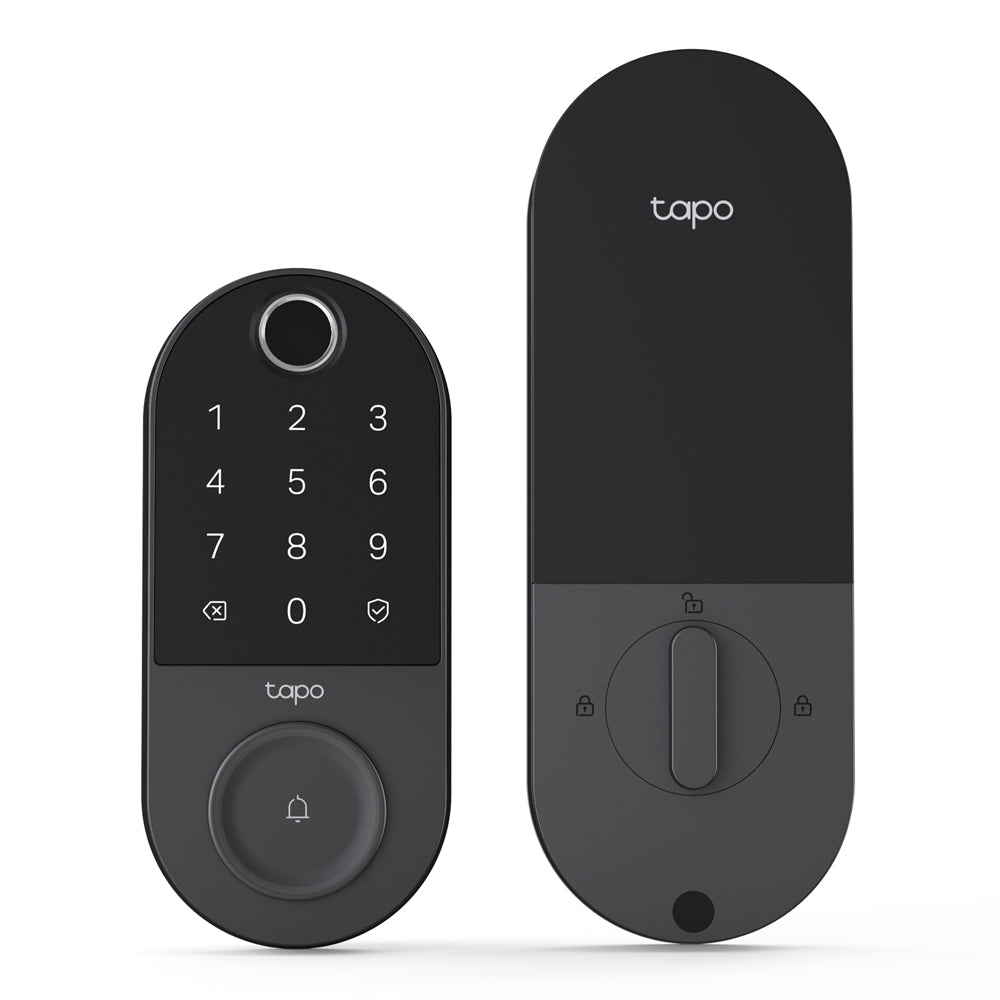

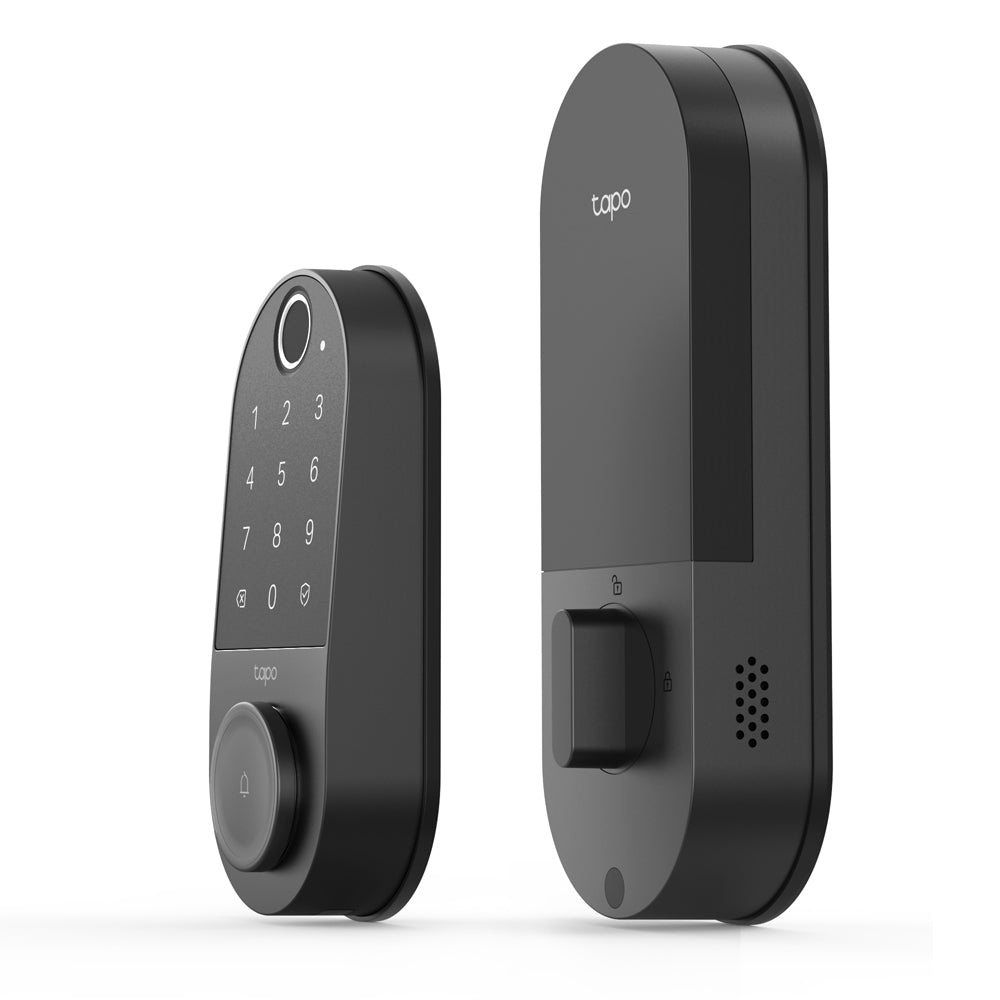

TP-Link Tapo DL110 Smart Wi-Fi Door Lock
Smart Door Access with Fingerprint, Keypad, App and Voice Control.
The TP-Link Tapo DL110 is a Smart Wi-Fi Door Lock designed to make everyday access simpler, smarter and more secure. It offers 6× convenient unlocking methods, including fingerprint recognition, Bluetooth access, Wi-Fi remote access, custom PIN codes, voice assistant control and backup physical keys. With BHMA Grade 2 certification, automatic locking, peek-proof passcodes, resident and guest access control, activity logs and real-time alerts, it helps protect your entrance with practical smart security. The exterior assembly is IP65 weather resistant, while the rechargeable 10,000mAh battery and USB Type-C emergency power support help keep the lock ready when needed.
Features
- 6× Ways to Unlock - Use fingerprint, Bluetooth, Wi-Fi remote access, keypad PIN, voice assistant or backup physical keys
- Rapid Fingerprint Recognition - Unlocks quickly and supports up to 100 registered fingerprints
- Custom PIN Access - Stores up to 200 PIN codes for residents and guests
- Peek-Proof Passcodes - Allows random digits before and after the passcode to help protect access codes
- Remote App Control - Lock, unlock and manage access through the Tapo app when connected to Wi-Fi
- Bluetooth Access - Control the lock locally via Bluetooth when within range
- Resident and Guest Access - Create permanent, one-time or scheduled codes for different users

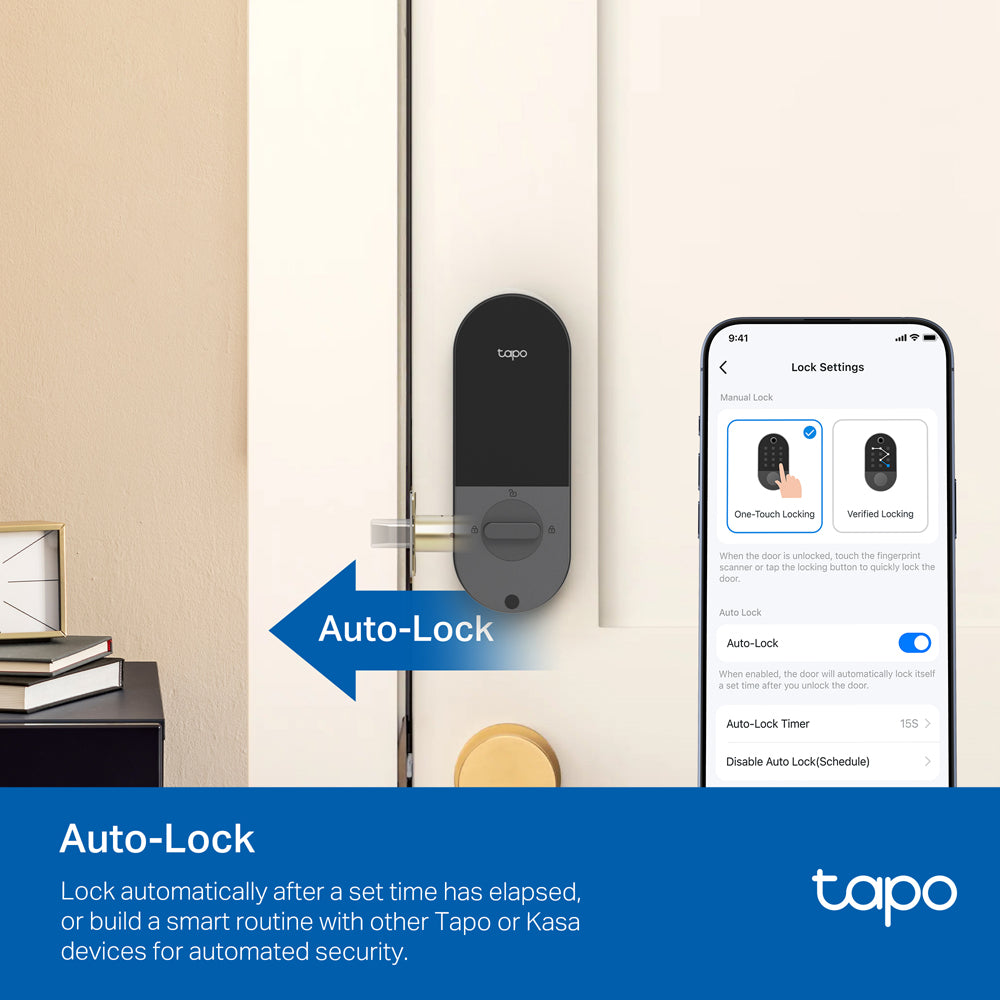

- Automatic Locking - Automatically locks after use with a customisable timer
- Built-In Doorbell - Adds convenient visitor alert functionality to the door lock system

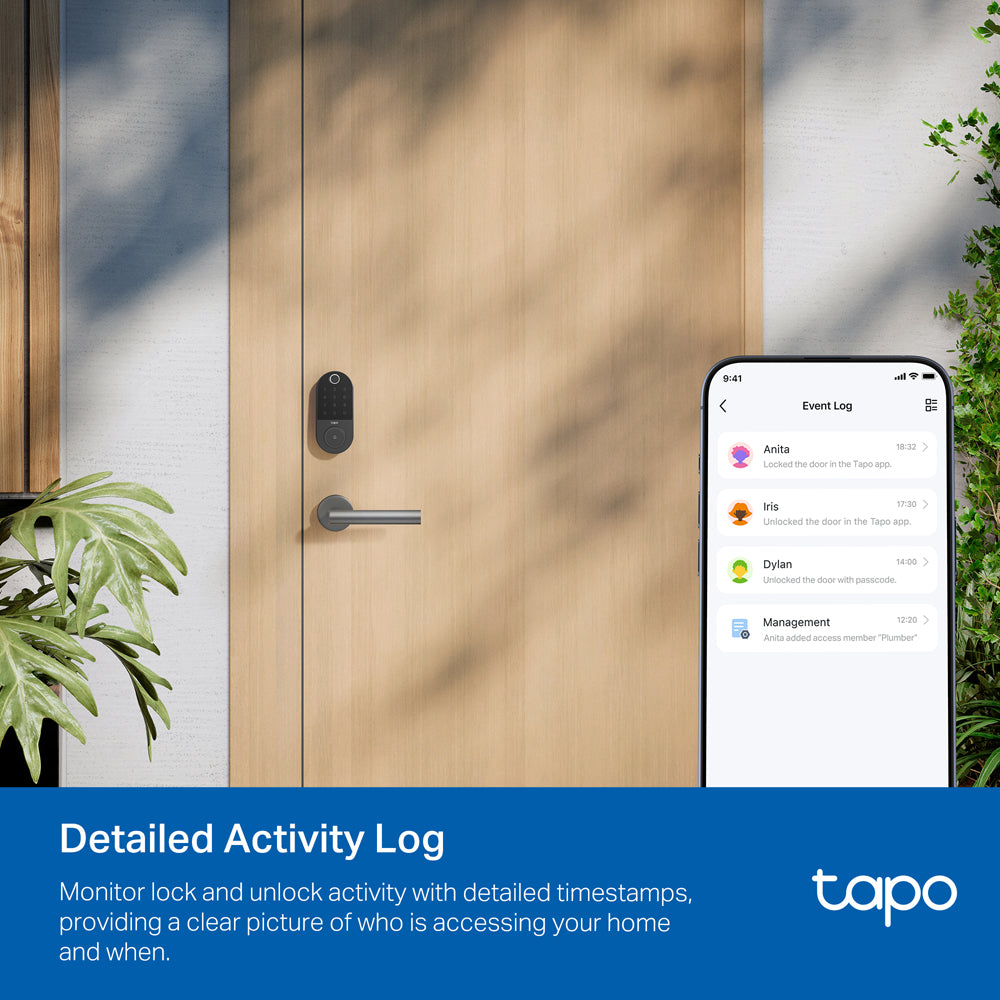

- Detailed Activity Log - Tracks lock and unlock activity with timestamps
- Real-Time Security Alerts - Sends alerts for suspicious activity and repeated failed access attempts
- BHMA Grade 2 Certified - Built for improved durability and security performance

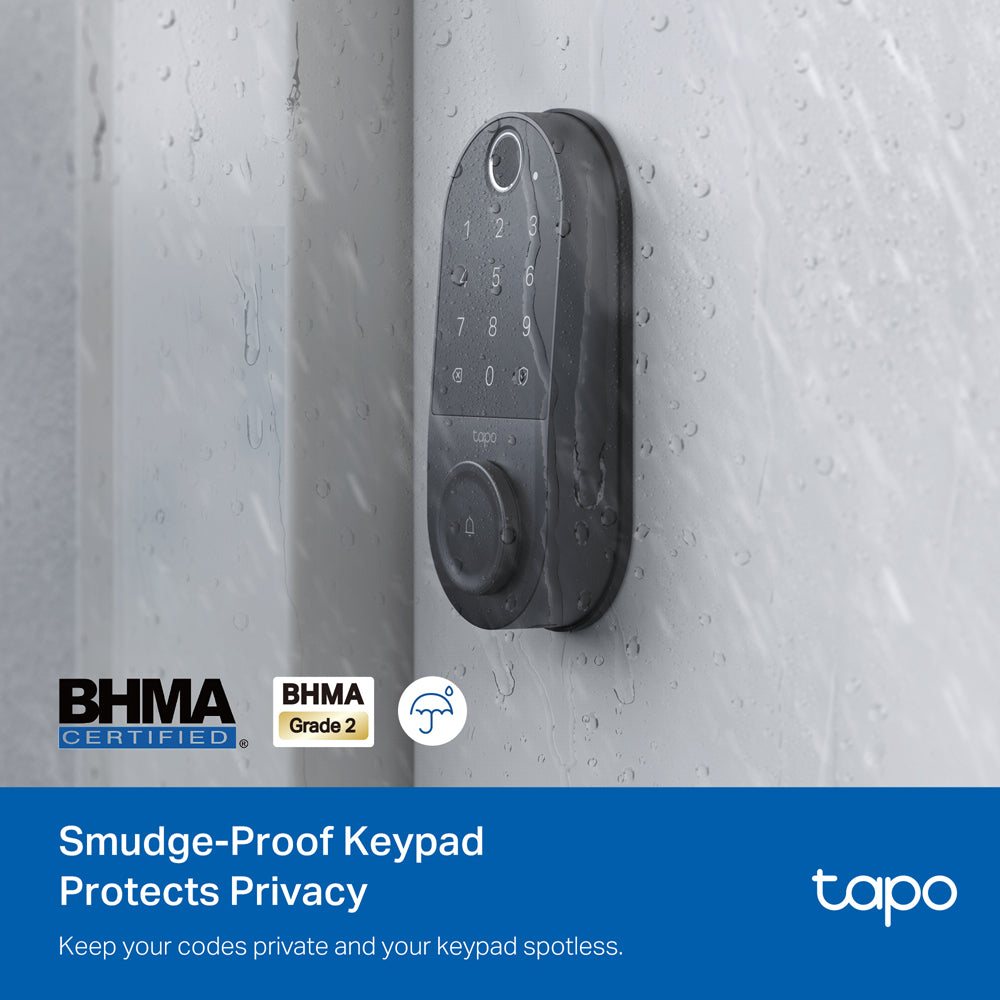

- IP65 Exterior Assembly - Helps protect the outdoor lock assembly against dust and weather
- Smart Home Integration - Works with Amazon Alexa, Google Assistant, Samsung SmartThings and IFTTT
- USB Type-C Emergency Power - Provides backup power support when the battery is depleted
Specifications
- Lock Type: Deadbolt
- Maximum Fingerprint ID: 100
- Maximum PIN Codes: 200
- One-Time Code: Supported
- Scramble PIN Code: Supported
- Emergency Unlock: Supported
- Mechanical Key: Supported
- Automatic Locking: Supported
- BHMA Certification: BHMA Grade 2
- Exterior Assembly Weatherproofing: IP65
- Interior Assembly Weatherproofing: Not Weatherproof
- Network Connectivity: Wi-Fi and BLE 5.0
- Wireless Connectivity: IEEE 802.11b/g/n, 2.4GHz Wi-Fi
- Transmission Rate: Typical 15Mbps
- Protocols: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP, DHCP, ARP
- Security: 128-Bit AES Encryption with SSL/TLS, WPA/WPA2-PSK/WPA3
- Exterior Assembly Interface: Fingerprint Scanner, Doorbell Ring Button, Lock Cylinder, Touchscreen Keypad, Status LED, USB Type-C Emergency Power Port
- Interior Assembly Interface: Wi-Fi On/Off Button, Battery Compartment, Thumb Latch, Reset Button
- Audio: Built-In Audio Buzzer, Built-In Audio Speaker

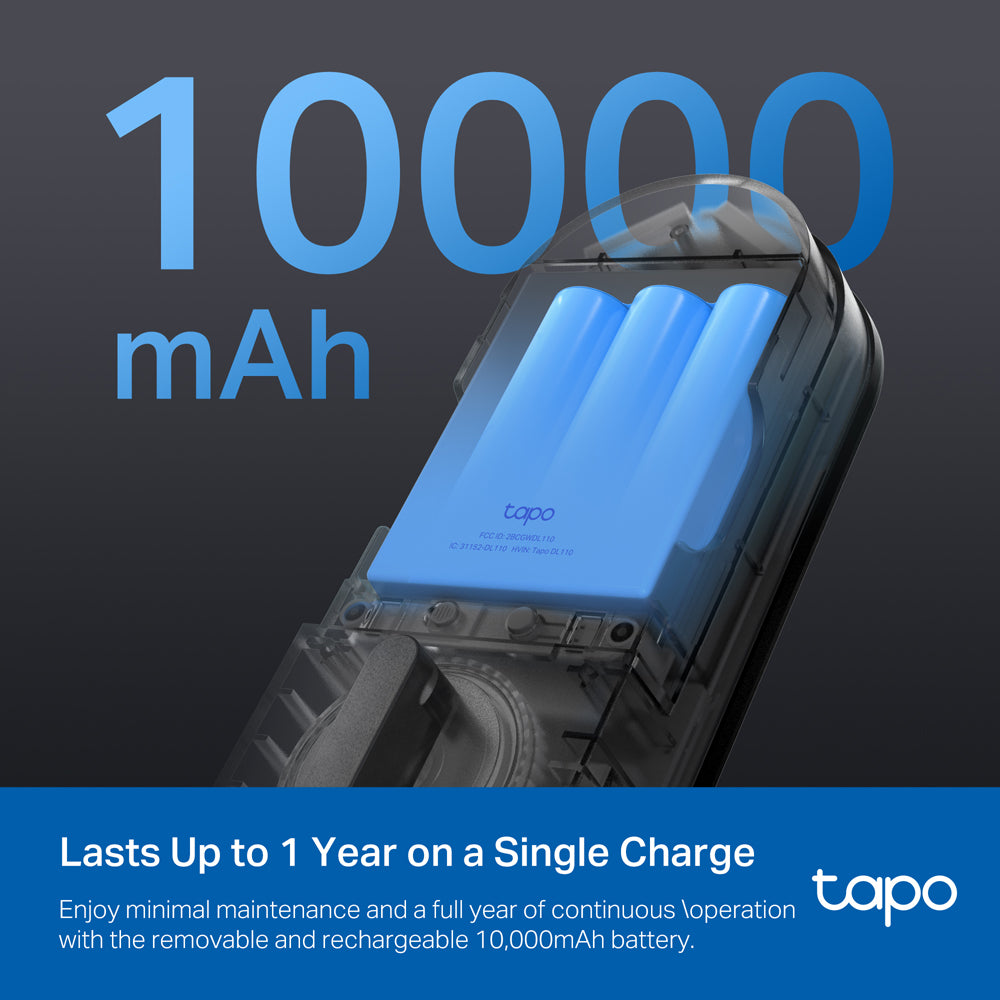

- Power Source: 10,000mAh Rechargeable Lithium-Ion Battery
- Charging Voltage: 5V 2A, USB Type-C
- Output Voltage: 4.2V
- Power Cord Length: 0.5m
- Typical Power Consumption: 1.65mW, Wi-Fi Mode Standby
- Maximum Power Consumption: 3.54W
- Smart Integration: Google Assistant, Amazon Alexa, Samsung SmartThings, IFTTT
- Exterior Assembly Dimensions: 150.2 × 68.2 × 97.5mm
- Interior Assembly Dimensions: 198.8 × 73.8 × 51.4mm
- Operating Temperature: Exterior Assembly -30~70°C, Interior Assembly -10~55°C
- Storage Temperature: -40~70°C
- Operating Humidity: 10~90% RH, Non-Condensing
- Storage Humidity: 0~90% RH, Non-Condensing
- Charging Temperature: 0~45°C
- Certifications: FCC, RoHS, BHMA, CEC, NRCan, DOE, MSDS, UN38.3, IP65
Door Compatibility
- Backset: 60/70mm
- Minimum Distance: 65mm
- Cross Bore: 38/54mm
- Door Hole Diameter: 25.4mm
- Door Thickness: 35-55mm
- Latch Hole Depth: ≥25.4mm
Notes
- Wi-Fi remote access requires the lock to be connected to the internet
- Voice assistant control requires compatible smart home setup
