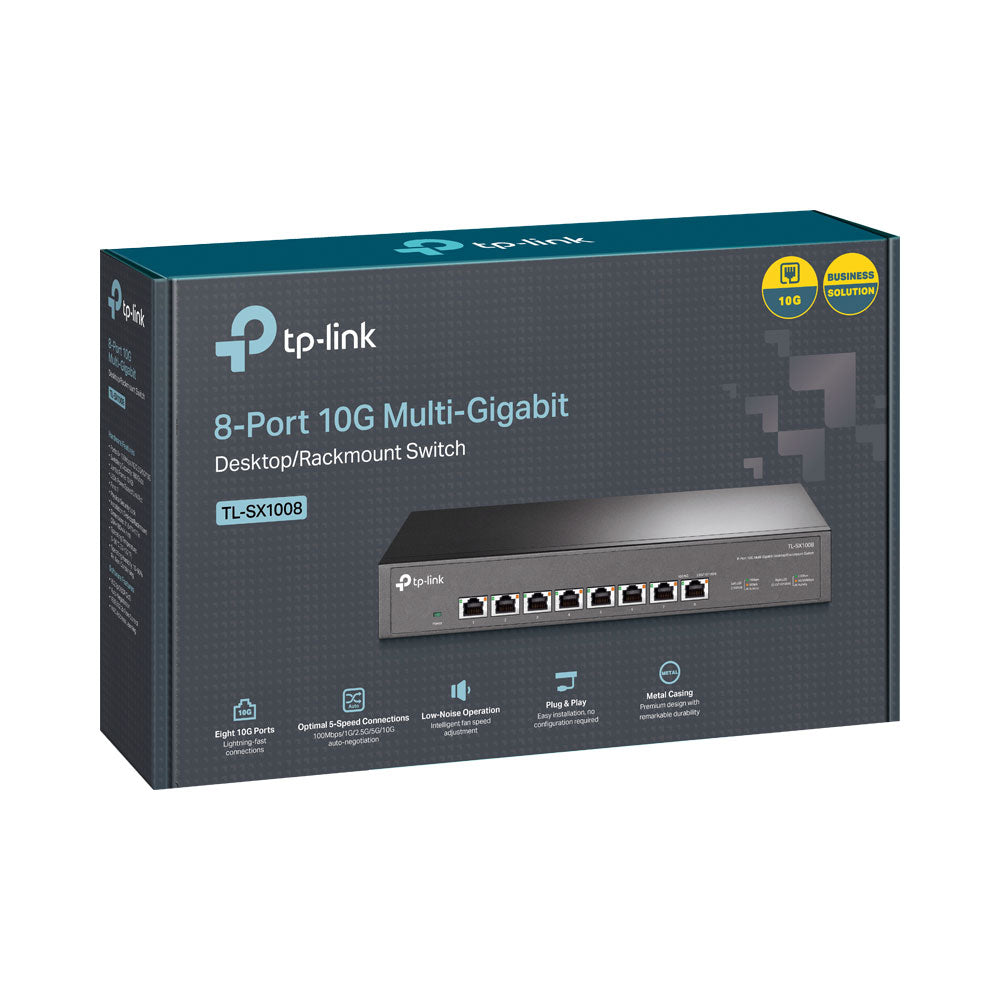

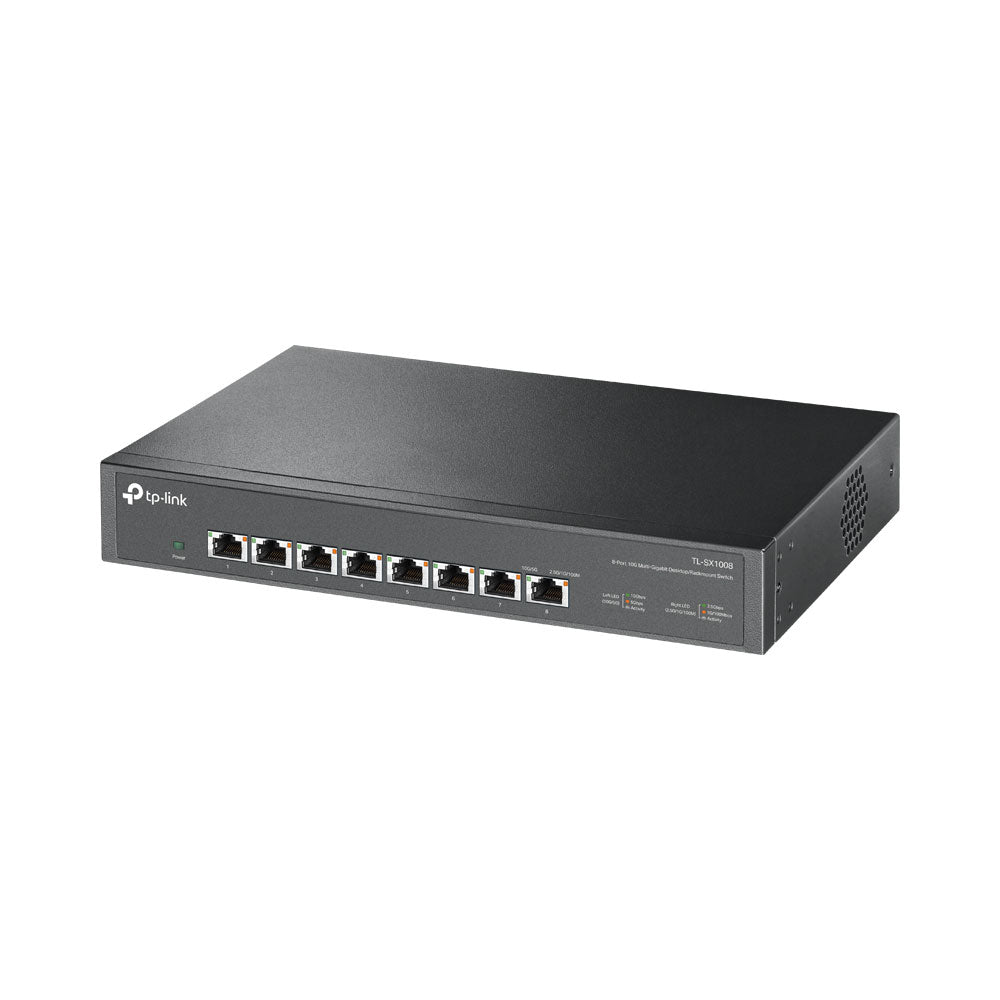

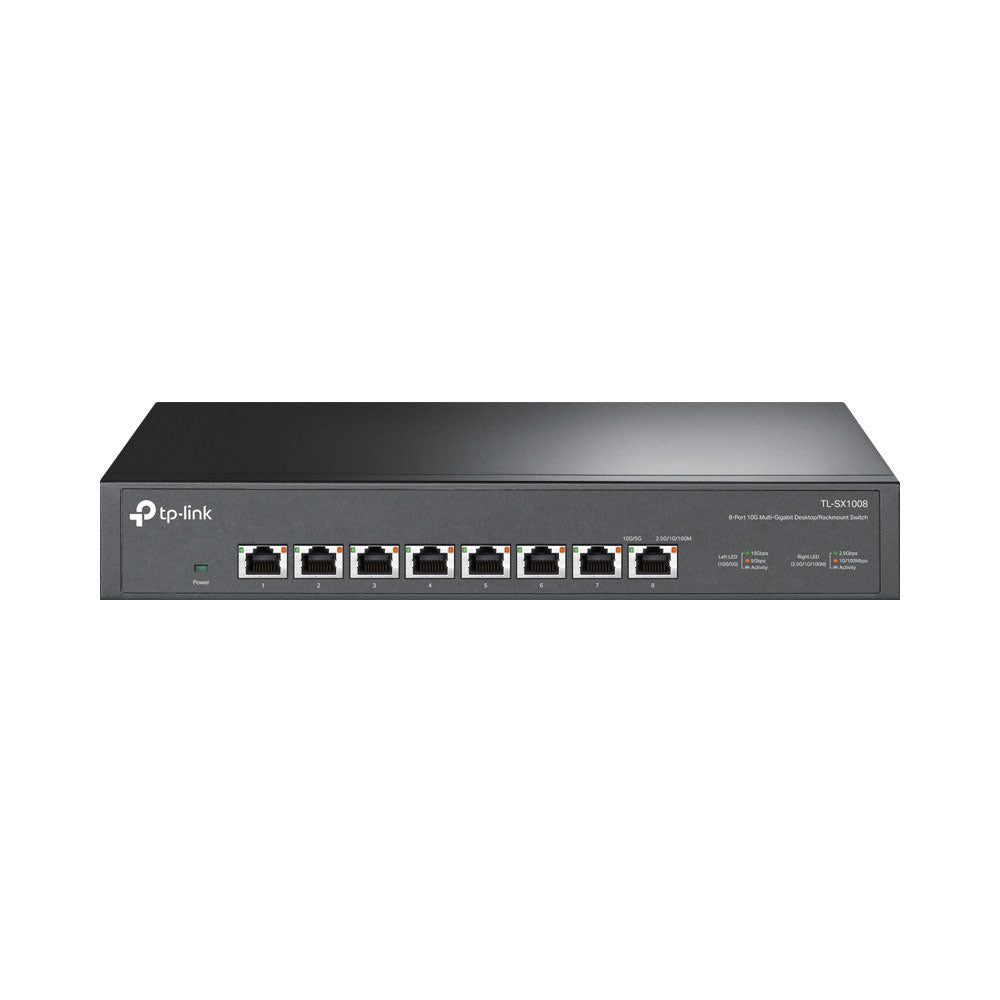

TP-Link TL-SX1008 8-Port 10G Desktop/Rackmount Switch
This is an unmanaged network switch designed to provide 8 RJ?45 ports, each capable of up to 10Gbps, with support for multi?gig speeds (100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps) auto?negotiation.
It is aimed at home offices, small business, high?speed NAS / server connectivity, and traffic?heavy LAN use.
Features
- Eight 10Gbps Ports
- 8X 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160Gbps of switching capacity
- Lightning-Fast Connections
- Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G Wi-Fi 6 AP, 8K video and more
- Ideal for Various Scenarios
- Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
- Optimal 5-Speed Connections
- Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
- Low-Noise Operation
- Smart fan speed adjustment ensures minimal noise to be non-distracting when use
- Wide Operation Temperature
- Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50°C)
- Plug and Play
- Allows for easy deployment without the need for a technician
Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
- Interface8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- Fan Quantity: 1 smart fan with adjustable speed

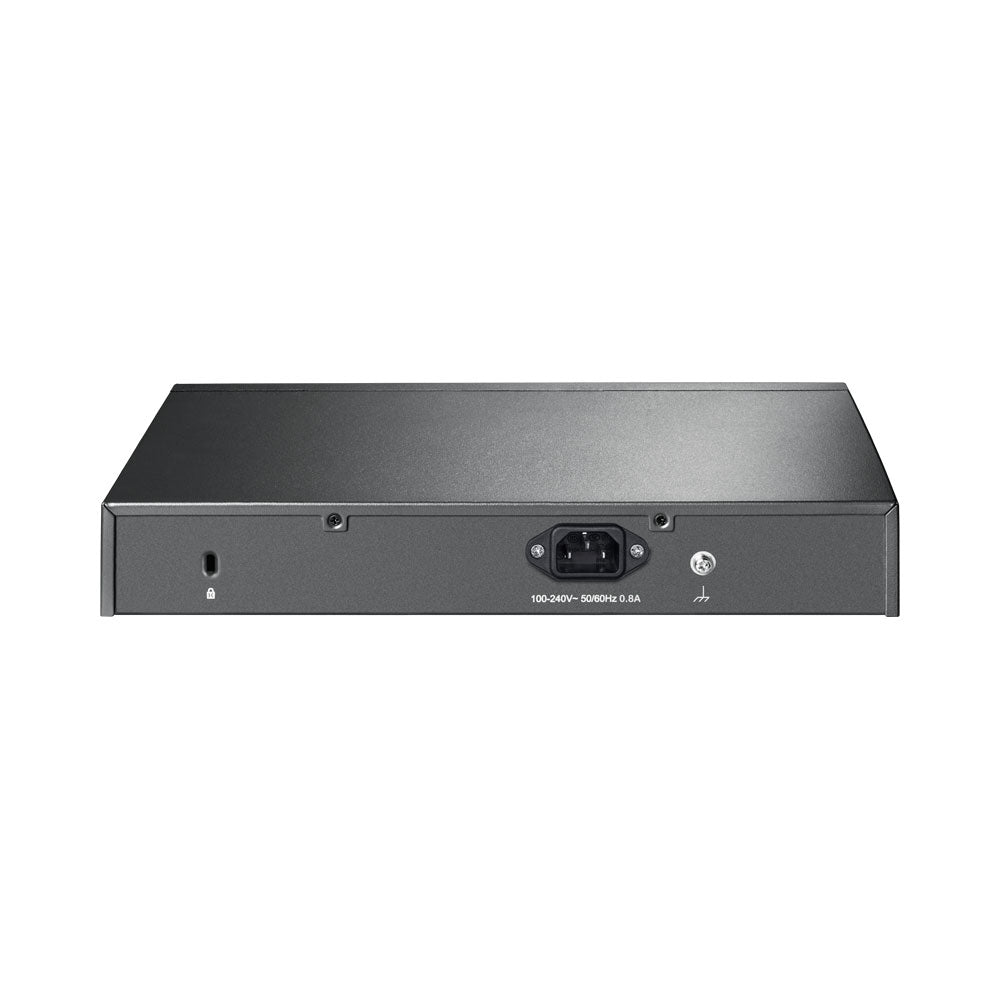

- External Power Supply: 100–240 VAC, 50/60 Hz, 0.8A
- LED Indicator: System Power: 1
- Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
- Dimensions (W x D x H) 294 × 180 × 44mm
- Max Power Consumption: 31.2W
Performance
- Switching Capacity: 160Gbps
- Packet Forwarding Rate: 119.0Mpps
- MAC Address Table: 32K
- Packet Buffer Memory: 2Mb
- Jumbo Frame: 10 KB
Software Features
- Advanced Features: 802.3X Flow Control
- 802.1p/DSCP QoS
- Transfer Method: Store and Forward
Others
- Certification: CE, FCC ,RoHS
- Environment: Operating Temperature: 0–50 °C
- Storage Temperature: -40–70 °C
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
