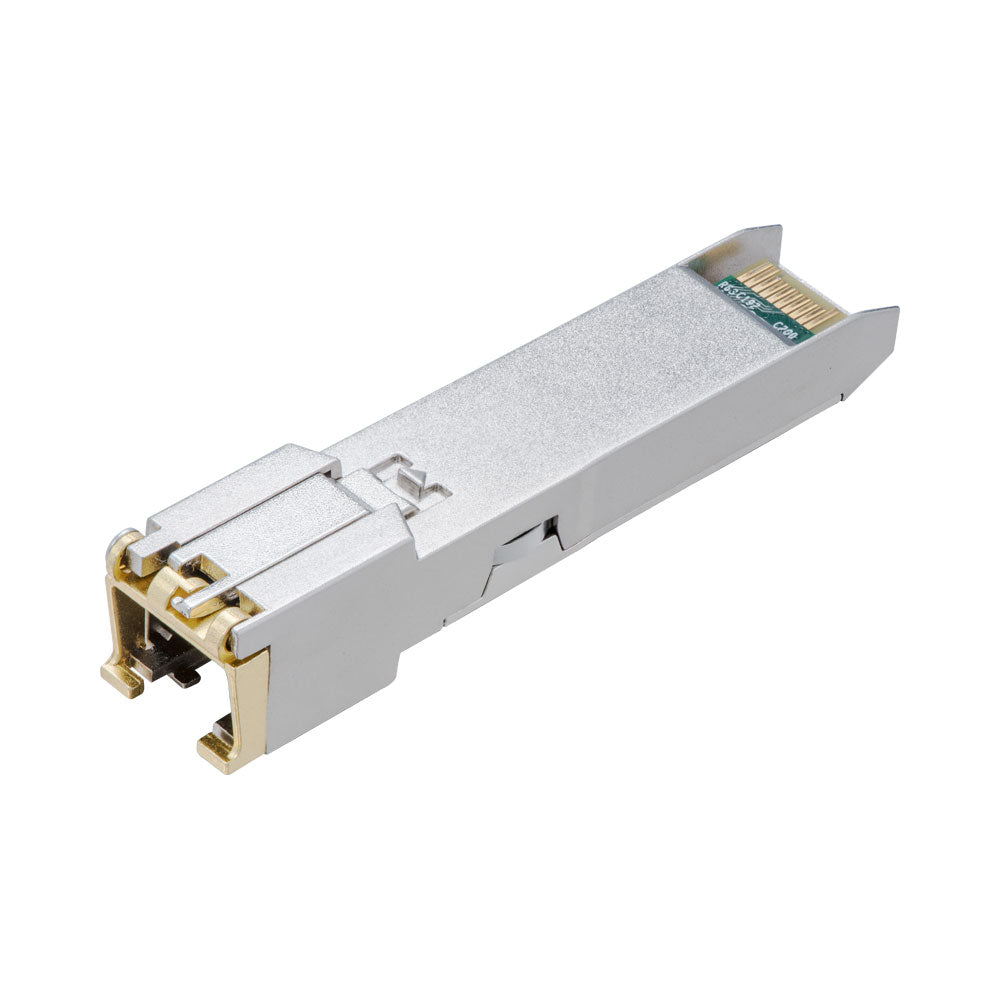

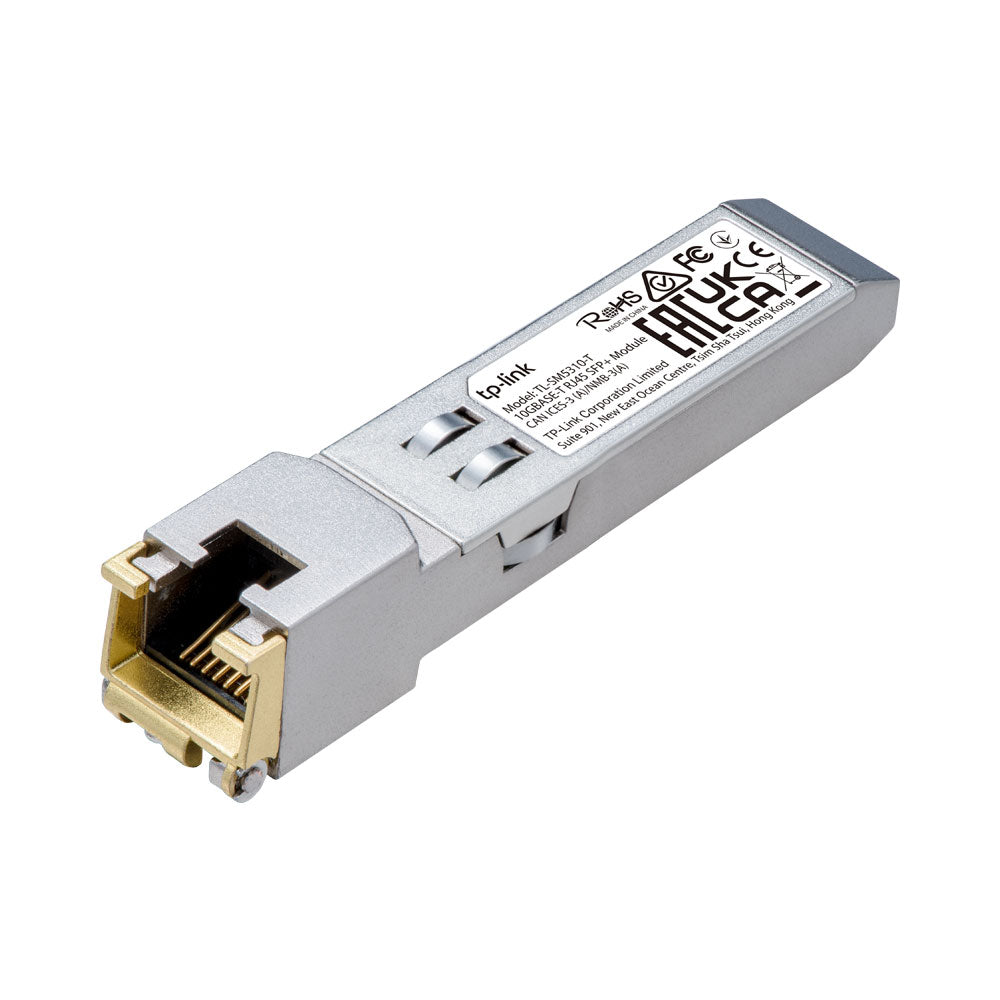

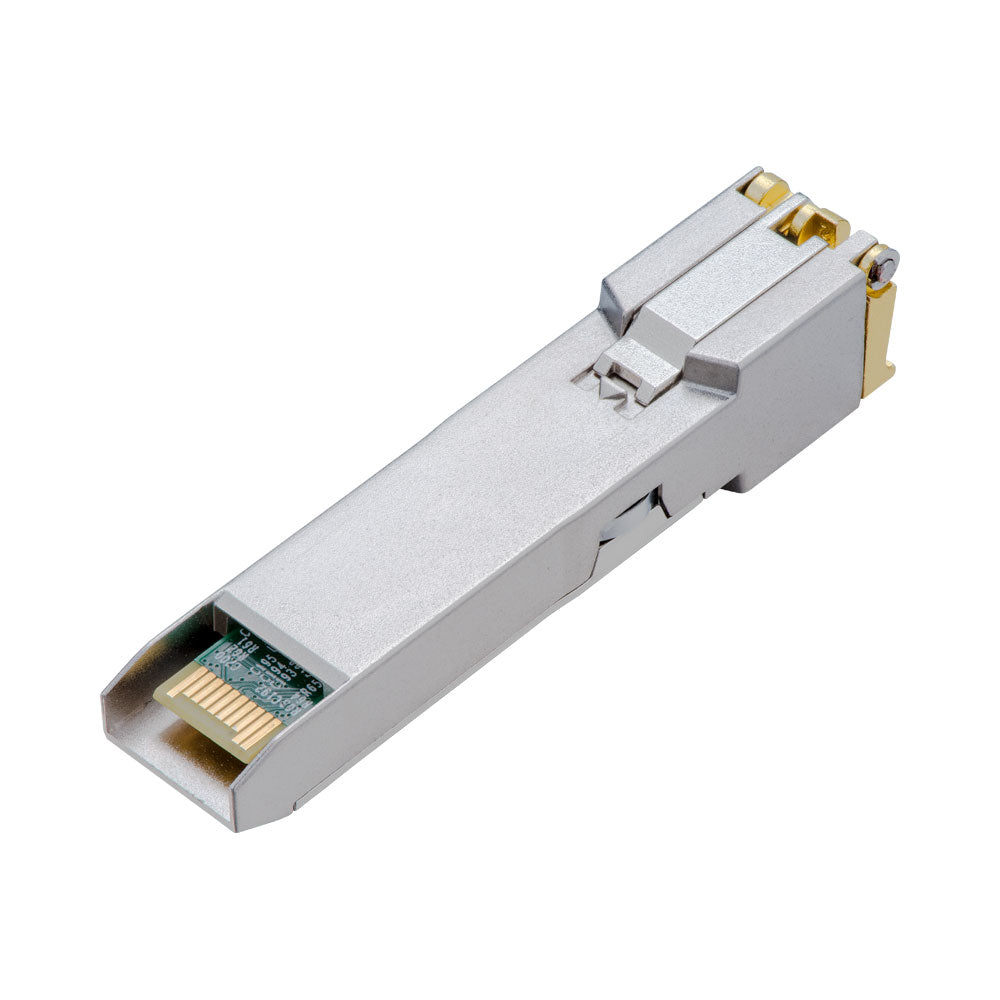

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module
This is a hot?pluggable SFP+ (10G) module with an RJ45 (copper) 10?Gbps port. In other words: if you have a device with an SFP+ slot (typically designed for fiber or 10?G electrical modules) and you want to connect it via standard copper RJ45 (Cat6a/Cat7) at up to 10?Gbps, this module enables that.
Features
- Supports 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX
- Transmit data up to 30m at 10Gbps (UTP CAT6a or above)
- Supports DDM (temperature and voltage)
- Hot-pluggable SFP+ footprint features
- Supports TX disable function
- Commercial product operating temperature range: 0~70°C

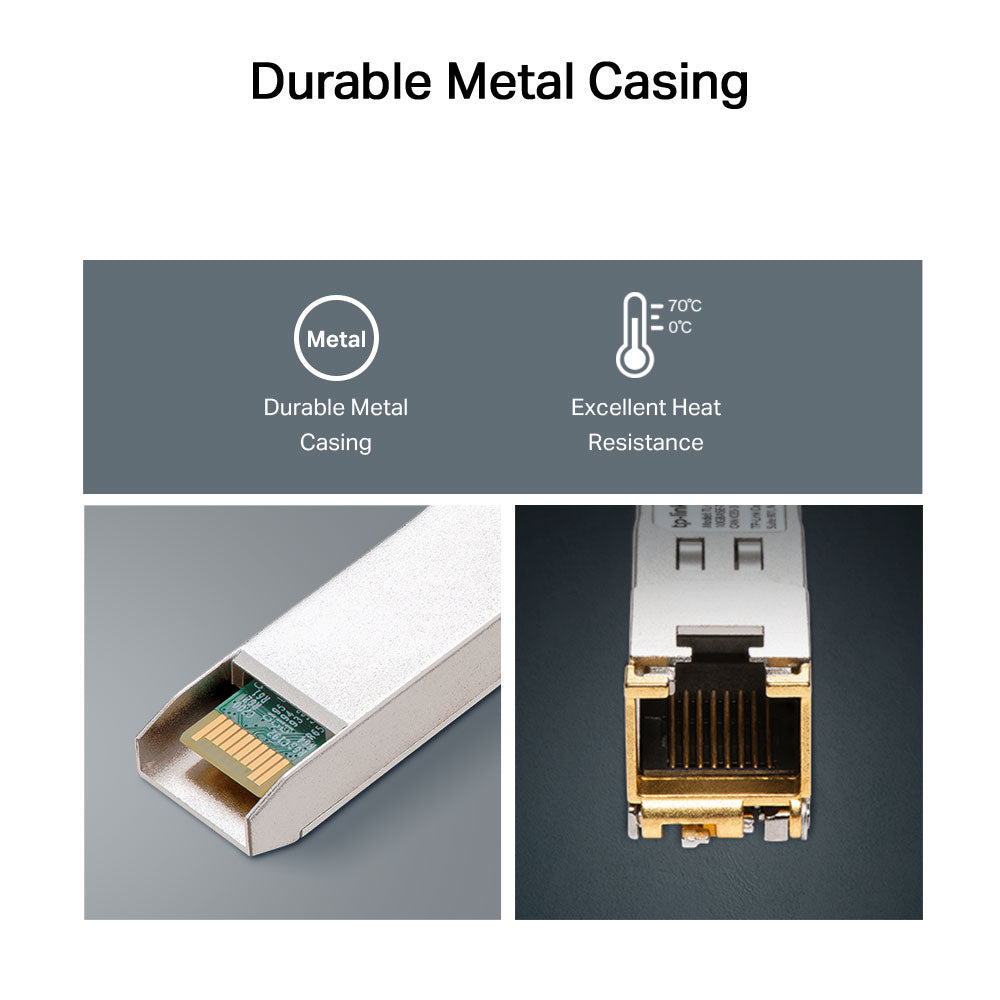

- Fully metallic enclosure for Low EMI
Specifications
- Hot Swappable: Yes
- MEDIA CONVERTER AND MODULE
- Dimensions (W × D × H): 67.4 × 13.75 × 13.8mm
- TRANSCEIVER
- Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
- Power Supply: 3.3V
- Max. Cable Length: 100BASE-TX: UTP CAT5 or above (Max. 100m)
- 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP CAT5e or above (Max. 100m)
- 10GBASE-T: UTP CAT6a or above (Max. 30m)
- Data Rate: 10.3Gbps
- Port Type: 1× 10G RJ45 Port
- Safety and Emission: FCC, CE, RoHS
- Environment: Operating Temperature: 0~70°C
- Storage Temperature: -40~85°C
