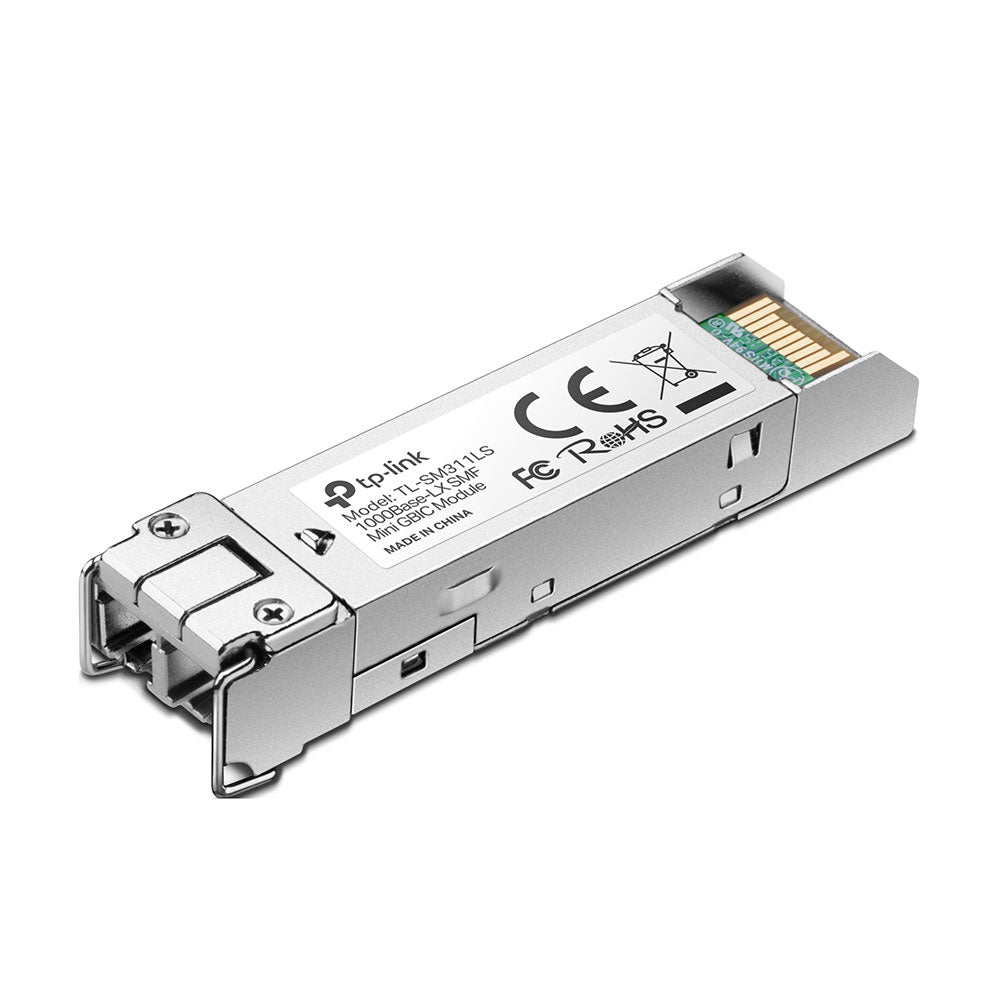

TP-Link Omada SM311LS 1000Base-LX Single-Mode SFP Module
Reliable Long-Distance Fibre Connectivity for Enterprise and Business Networks.
The TP-Link Omada SM311LS SFP module is designed to extend Gigabit network connections over long-distance single-mode fibre links. Supporting transmission distances up to 20km, this hot-swappable Mini GBIC module provides stable and high-speed fibre connectivity for switches, routers and media converters. With LC duplex connectivity, 1.25Gbps data transfer rates and Digital Diagnostic Monitoring support, the SM311LS is ideal for enterprise LANs, campus networks and professional fibre deployments requiring dependable long-range performance.
Features
- 1000Base-LX SFP Module - Delivers reliable Gigabit fibre network connectivity
- Long-Distance Fibre Transmission - Supports distances up to 20km over single-mode fibre
- 1.25Gbps Data Rate - Provides stable high-speed data transfer
- LC Duplex Connector - Ensures secure and efficient fibre connections
- Single-Mode Fibre Support - Compatible with 9/125μm SMF cabling
- Hot Swappable Design - Install or remove without shutting down equipment
- DDM Support - Digital Diagnostic Monitoring for enhanced network management
- SFP-MSA Compliant - Broad compatibility with industry-standard SFP ports
- Compact Mini GBIC Form Factor - Ideal for switches, routers and media converters
Specifications
Standards And Protocols
- IEEE 802.3z
- CSMA/CD
- TCP/IP
- Fibre Type: 9/125μm Single-Mode Fibre
- Connector Type: LC Duplex
- Wavelength: 1310nm
- Data Rate: 1.25Gbps
- Maximum Transmission Distance: 20km
- Power Supply: 3.3V
Hardware
- Digital Diagnostic Monitoring (DDM)
- SFP-MSA Compliance
- Hot Swappable Support
Other
- Dimensions: 55.4 × 13.7 × 12.9mm
- Operating Temperature: 0~70°C
- Storage Temperature: -40~80°C
- Operating Humidity: 10~90% RH Non-Condensing
- Storage Humidity: 5~90% RH Non-Condensing
- Certifications: FCC, CE
Compatible With
- T3700 Series
- T2700 Series
- T2600 Series
- T2500 Series
- T1700 Series
- T1600 Series
- T1500 Series
- 2/3/5 Series
- MC220L
